Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

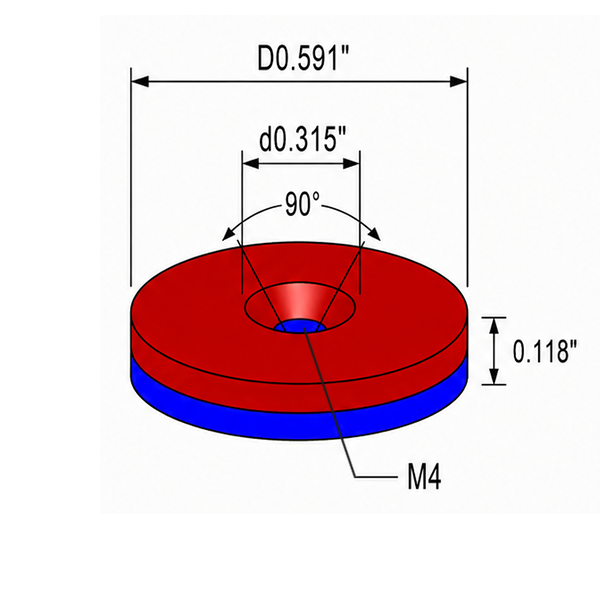

Countersunk Magnet 0.591″×0.118″-M4

Technical Data

Material:NdFeB
Diameter:0.591 inch (15.0 mm)
Thickness:0.118 inch (3.0 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.106 oz (3 g)
Pull Force:approx. 4.19 lb (1.9 kgf)
Surface Gauss:approx. 850 Gs
Max Operating Temp:176 F / 80℃

$0.200

each

20000 in stock

Quantity Price
1 - 99 $0.200
100 - 200 $0.200
201 - 500 $0.160
501 - 1,000 $0.130
1,001 - 2,000 $0.100
2,001+ $0.100

Countersunk Magnet 0.591″×0.118″-M4

Technical Data

Material:NdFeB
Diameter:0.591 Inch
Thickness:0.118 Inch
Tolerance:+/- 0.04 Inch
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 3 g
Power:approx 1.9 Kg
Surface Gauss:approx 850 Gs
Max Operating Temp:176 F / 80℃

$0.200

each

20000 in stock

Quantity Price
1 - 99 $0.200
100 - 200 $0.200
201 - 500 $0.160
501 - 1,000 $0.130
1,001 - 2,000 $0.100
2,001+ $0.100
