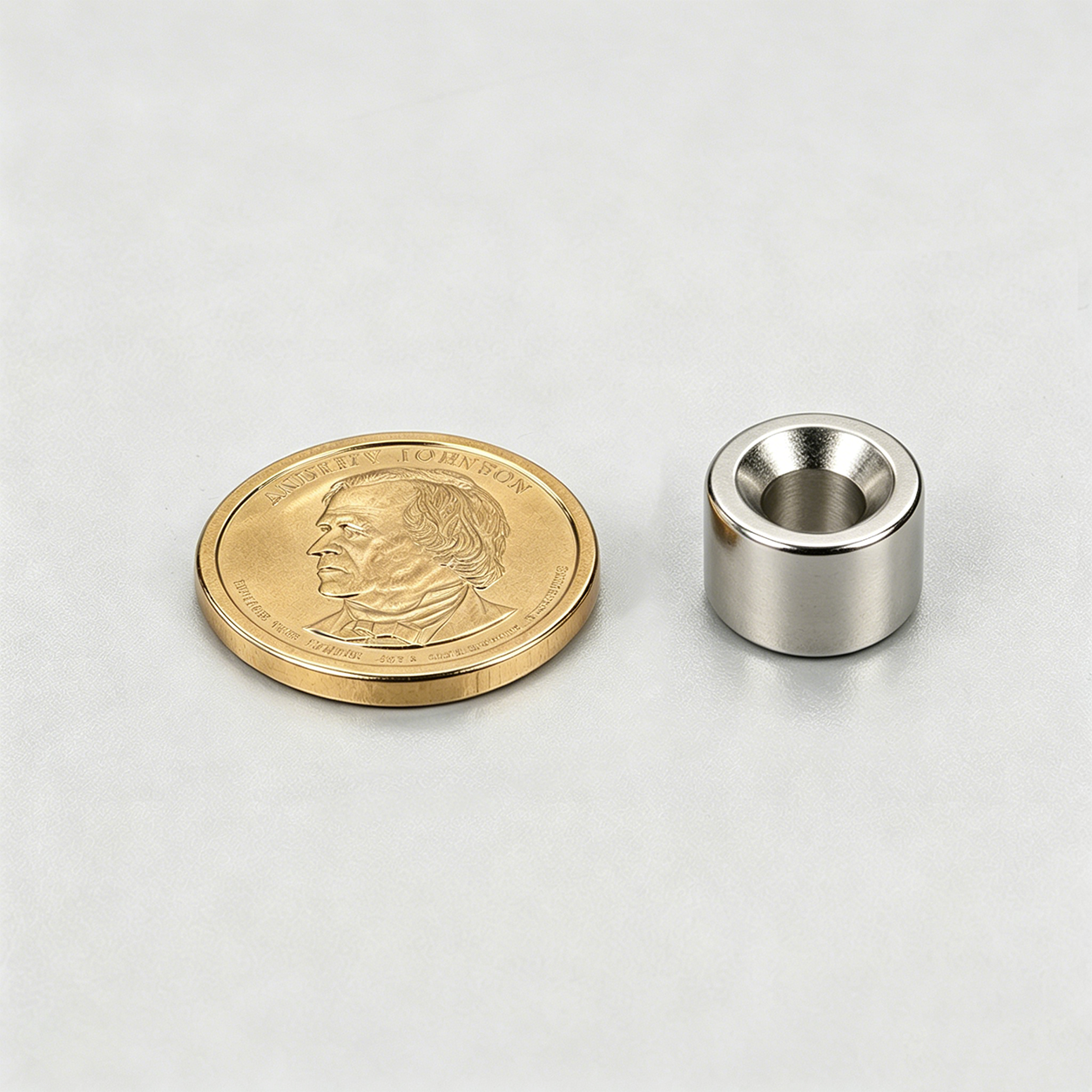

Countersunk Magnet 0.591″×0.394″-M6

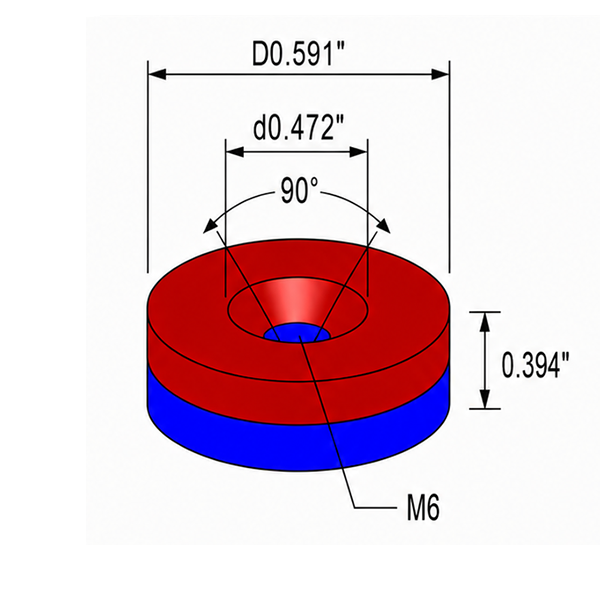

Technical Data

Material:NdFeB
Diameter:0.591 inch (15.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.353 oz (10 g)
Pull Force:approx. 6.61 lb (3 kgf)
Surface Gauss:approx. 3000 Gs
Max Operating Temp:176 F / 80℃

$0.600

each

20000 in stock

Quantity Price
1 - 99 $0.600
100 - 200 $0.600
201 - 500 $0.500
501 - 1,000 $0.400
1,001 - 2,000 $0.300
2,001+ $0.300

Countersunk Magnet 0.591″×0.394″-M6

Technical Data

Material:NdFeB
Diameter:0.591 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.04 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 10 g
Power:approx 3 Kg
Surface Gauss:approx 3000 Gs
Max Operating Temp:176 F / 80℃

$0.600

each

20000 in stock

Quantity Price
1 - 99 $0.600
100 - 200 $0.600
201 - 500 $0.500
501 - 1,000 $0.400
1,001 - 2,000 $0.300
2,001+ $0.300
