Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

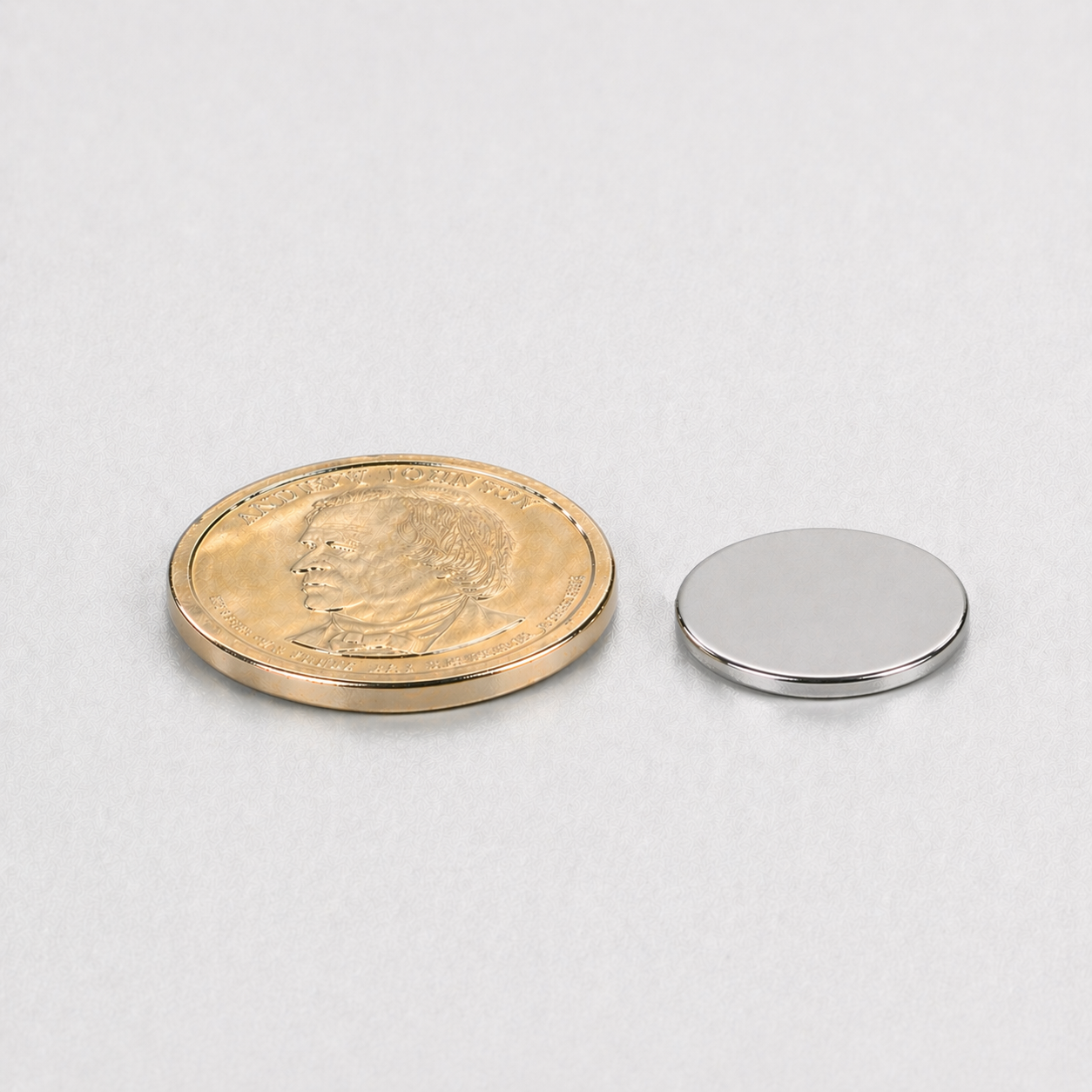

NdFeB Disc Magnet 0.787”×0.059“

Technical Data

Material:NdFeB

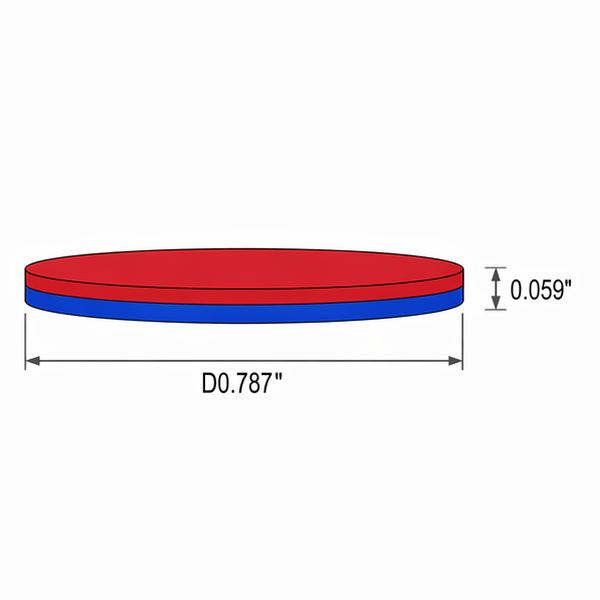

Diameter:0.787 inch (20.0 mm)
Thickness:0.059 inch (1.5 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.102 oz (2.9 g)
Pull Force:approx. 5.95 lb (2.7 kgf)
Surface Gauss:approx. 400 Gs
Max Operating Temp:176 F / 80℃

$0.530

each

20000 in stock

Quantity Price
1 - 99 $0.530
100 - 200 $0.530
201 - 500 $0.500
501 - 1,000 $0.290
1,001 - 2,000 $0.230
2,001+ $0.230

NdFeB Disc Magnet 0.787”×0.059“

Technical Data

Material:NdFeB
Diameter:0.787 Inch
Thickness:0.059 Inch
Tolerance:+/- 0.04 Inch
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 2.9 g
Power:approx 2.7 Kg
Surface Gauss:approx 400 Gs
Max Operating Temp:176 F / 80℃

$0.530

each

20000 in stock

Quantity Price
1 - 99 $0.530
100 - 200 $0.530
201 - 500 $0.500
501 - 1,000 $0.290
1,001 - 2,000 $0.230
2,001+ $0.230
