Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

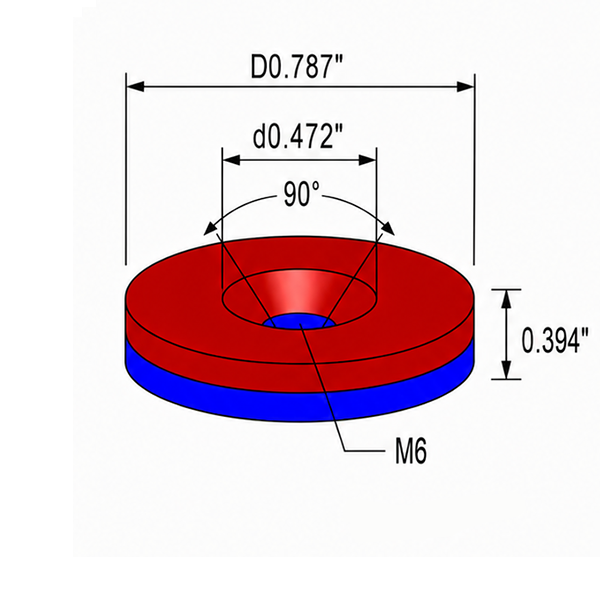

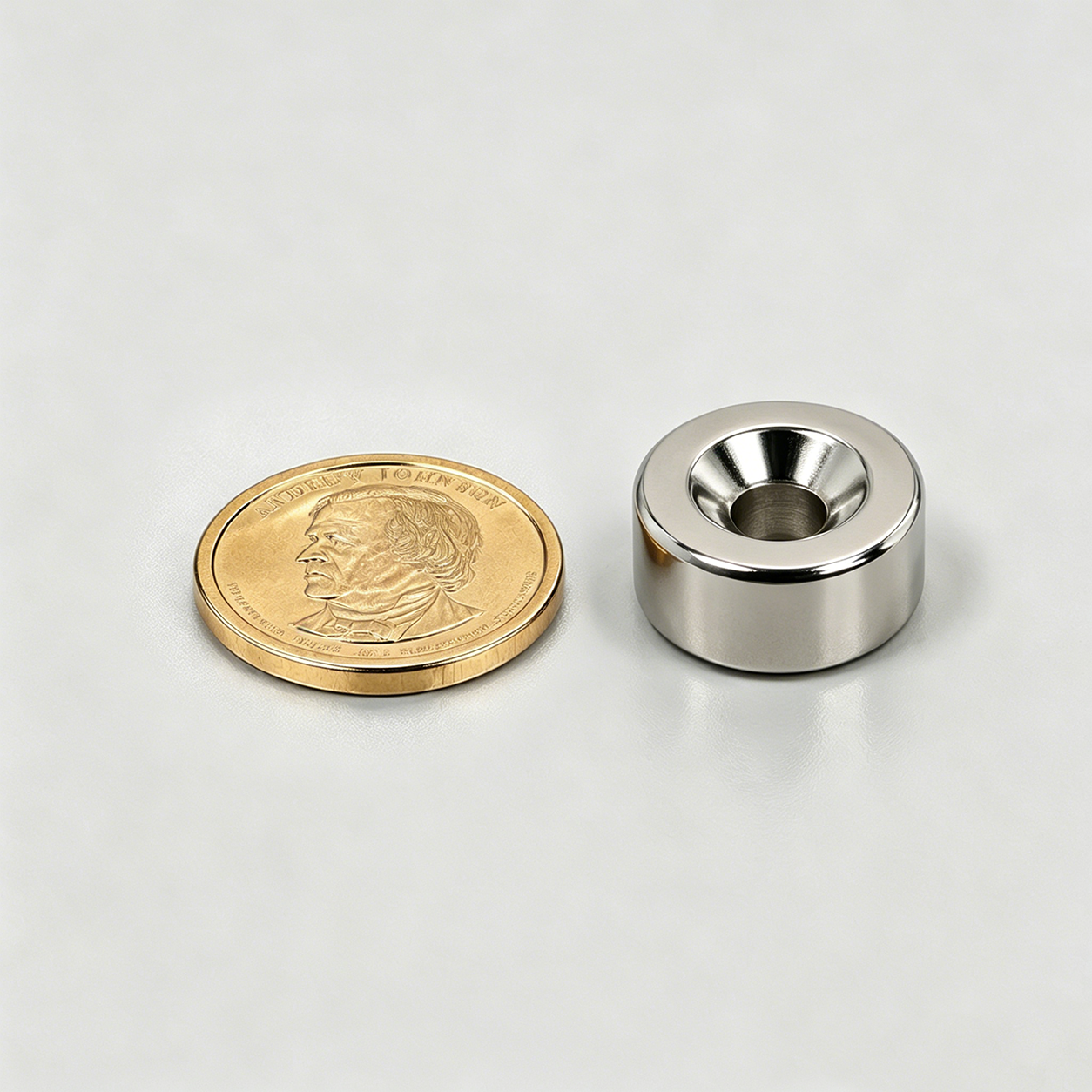

Countersunk Magnet 0.787″×0.394″-M6

Technical Data

Material:NdFeB
Diameter:0.787 inch (20.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.564 oz (16 g)
Pull Force:approx. 8.6 lb (3.9 kgf)
Surface Gauss:approx. 2600 Gs
Max Operating Temp:176 F / 80℃

$0.800

each

20000 in stock

Quantity Price
1 - 99 $0.800
100 - 200 $0.800
201 - 500 $0.700
501 - 1,000 $0.600
1,001 - 2,000 $0.460
2,001+ $0.460

Countersunk Magnet 0.787″×0.394″-M6

Technical Data

Material:NdFeB
Diameter:0.787 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.04 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 16 g
Power:approx 3.9 Kg
Surface Gauss:approx 2600 Gs
Max Operating Temp:176 F / 80℃

$0.800

each

20000 in stock

Quantity Price
1 - 99 $0.800
100 - 200 $0.800
201 - 500 $0.700
501 - 1,000 $0.600
1,001 - 2,000 $0.460
2,001+ $0.460
