Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

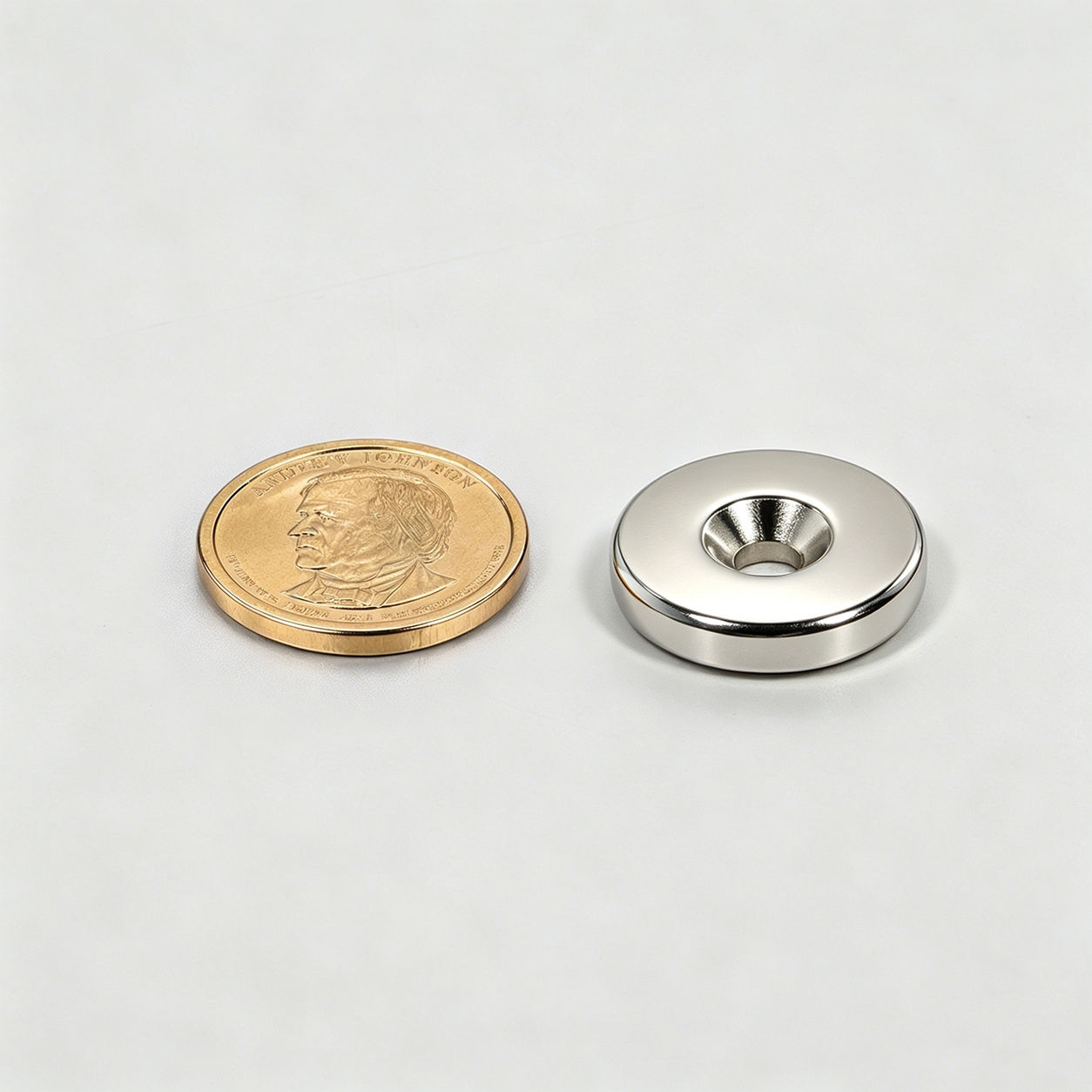

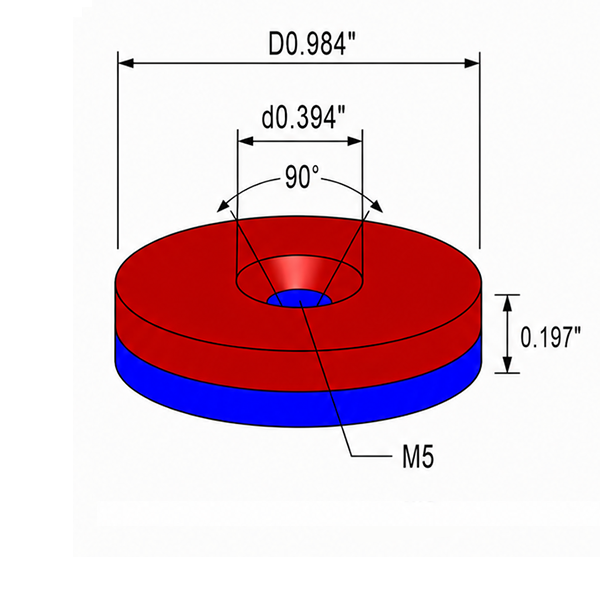

Countersunk Magnet 0.984″×0.197″-M5

Technical Data

Material:NdFeB
Diameter:0.984 inch (25.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.06 inch (+/- 1.5 mm)
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.543 oz (15.4 g)
Pull Force:approx. 11.02 lb (5 kgf)
Surface Gauss:approx. 800 Gs
Max Operating Temp:176 F / 80℃

$0.790

each

20000 in stock

Quantity Price
1 - 99 $0.790
100 - 200 $0.790
201 - 500 $0.690
501 - 1,000 $0.550
1,001 - 2,000 $0.400
2,001+ $0.400

Countersunk Magnet 0.984″×0.197″-M5

Technical Data

Material:NdFeB
Diameter:0.984 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.06 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 15.4 g
Power:approx 5 Kg
Surface Gauss:approx 800 Gs
Max Operating Temp:176 F / 80℃

$0.790

each

20000 in stock

Quantity Price
1 - 99 $0.790
100 - 200 $0.790
201 - 500 $0.690
501 - 1,000 $0.550
1,001 - 2,000 $0.400
2,001+ $0.400
