Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

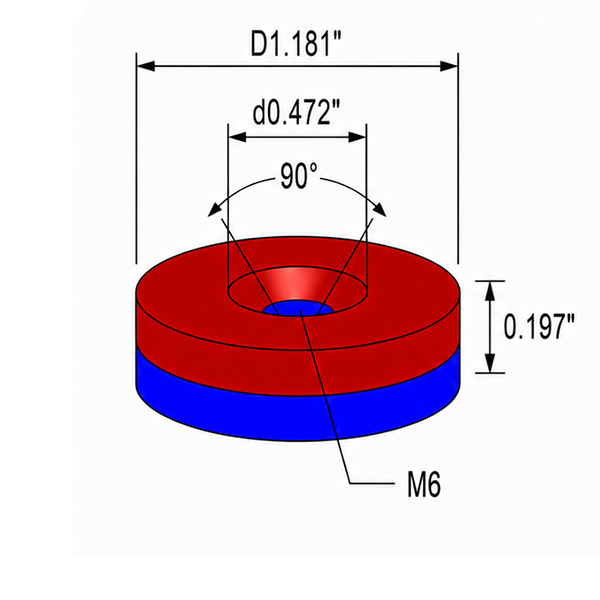

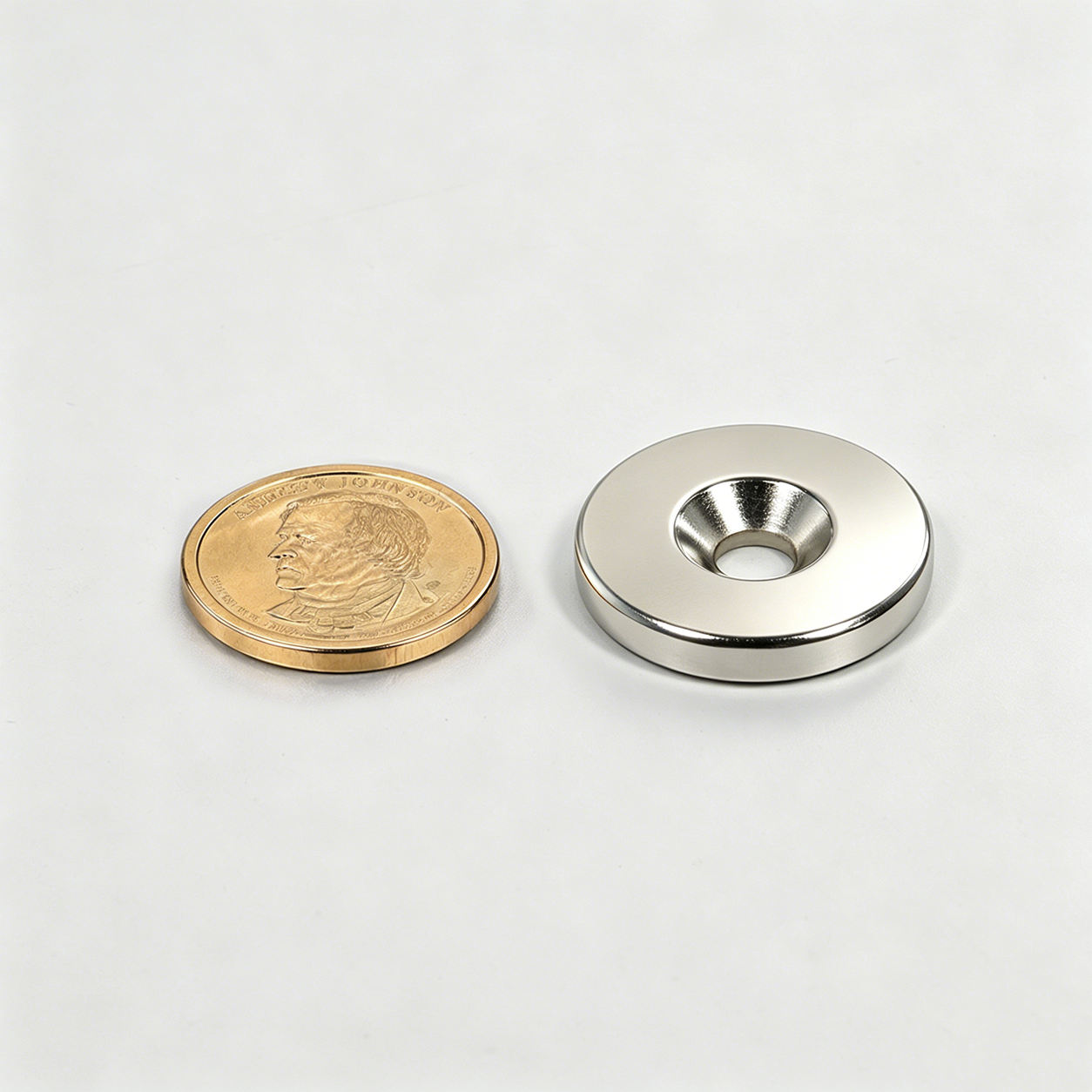

Countersunk Magnet 1.181″×0.197″-M6

Technical Data

Material:NdFeB
Diameter:1.181 inch (30.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.758 oz (21.5 g)
Pull Force:approx. 15.32 lb (6.95 kgf)
Surface Gauss:approx. 600 Gs
Max Operating Temp:176 F / 80℃

$1.100

each

20000 in stock

Quantity Price
1 - 99 $1.100
100 - 200 $1.100
201 - 500 $0.900
501 - 1,000 $0.700
1,001 - 2,000 $0.520
2,001+ $0.520

Countersunk Magnet 1.181″×0.197″-M6

Technical Data

Material:NdFeB
Diameter:1.181 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.08 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 21.5 g
Power:approx 6.95 Kg
Surface Gauss:approx 600 Gs
Max Operating Temp:176 F / 80℃

$1.100

each

20000 in stock

Quantity Price
1 - 99 $1.100
100 - 200 $1.100
201 - 500 $0.900
501 - 1,000 $0.700
1,001 - 2,000 $0.520
2,001+ $0.520
