Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

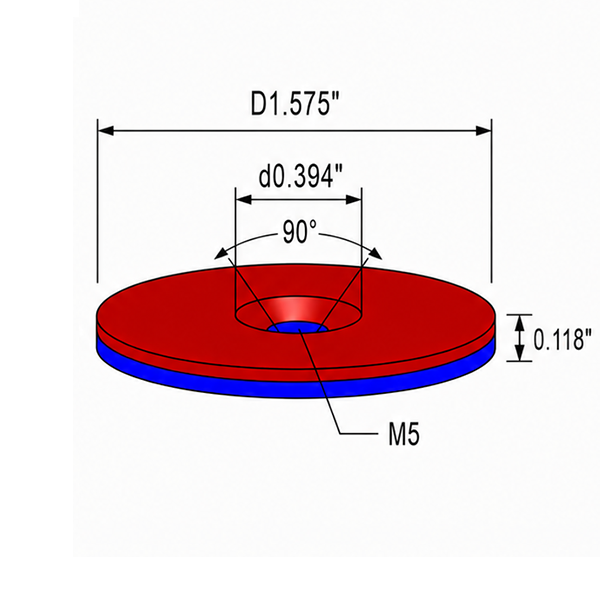

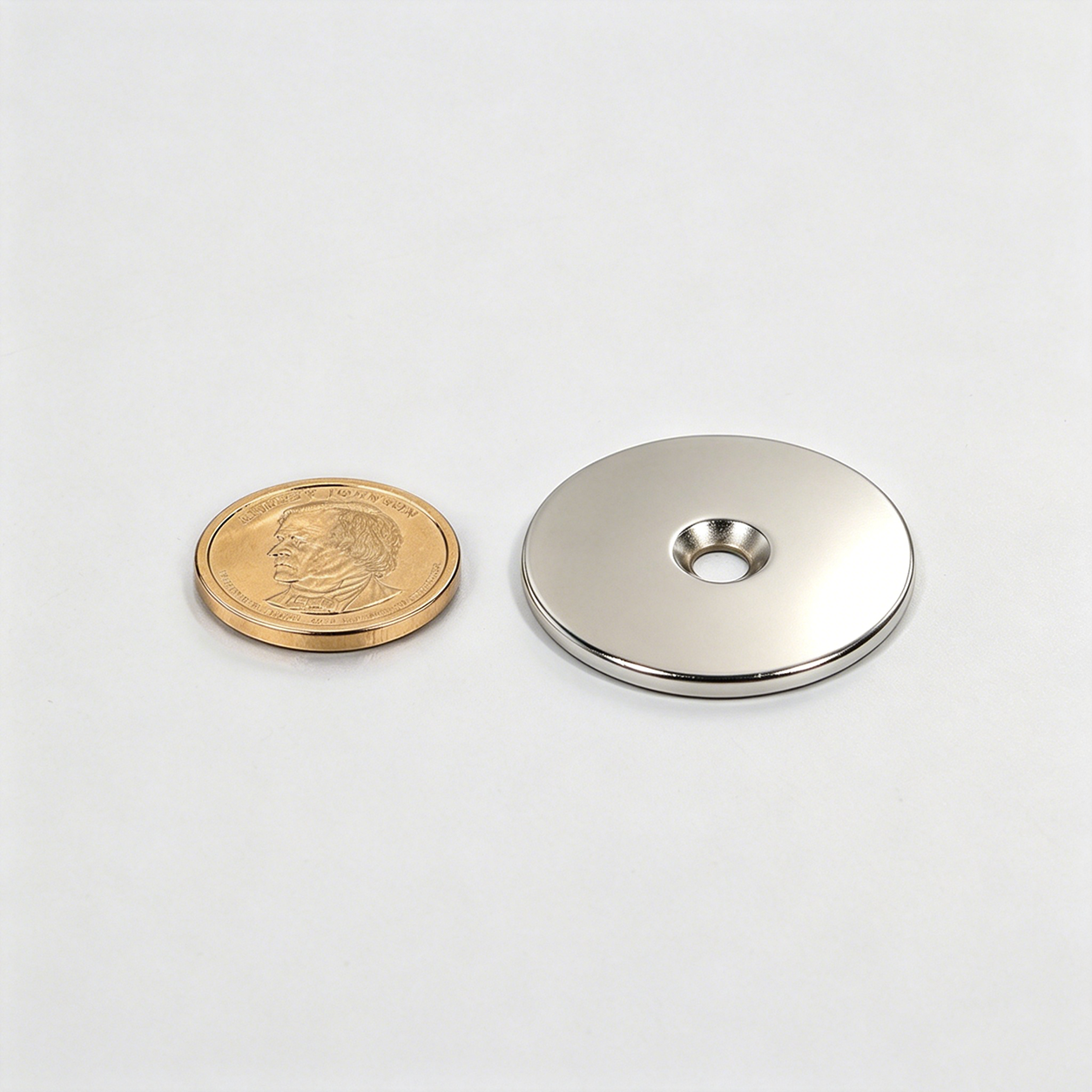

Countersunk Magnet 1.575″×0.118″-M5

Technical Data

Material:NdFeB
Diameter:1.575 inch (40.0 mm)
Thickness:0.118 inch (3.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.847 oz (24 g)
Pull Force:approx. 16.98 lb (7.7 kgf)
Surface Gauss:approx. 550 Gs
Max Operating Temp:176 F / 80℃

$1.200

each

20000 in stock

Quantity Price
1 - 99 $1.200
100 - 200 $1.200
201 - 500 $0.950
501 - 1,000 $0.780
1,001 - 2,000 $0.560
2,001+ $0.560

Countersunk Magnet 1.575″×0.118″-M5

Technical Data

Material:NdFeB
Diameter:1.575 Inch
Thickness:0.118 Inch
Tolerance:+/- 0.08 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 24 g
Power:approx 7.7 Kg
Surface Gauss:approx 550 Gs
Max Operating Temp:176 F / 80℃

$1.200

each

20000 in stock

Quantity Price
1 - 99 $1.200
100 - 200 $1.200
201 - 500 $0.950
501 - 1,000 $0.780
1,001 - 2,000 $0.560
2,001+ $0.560
