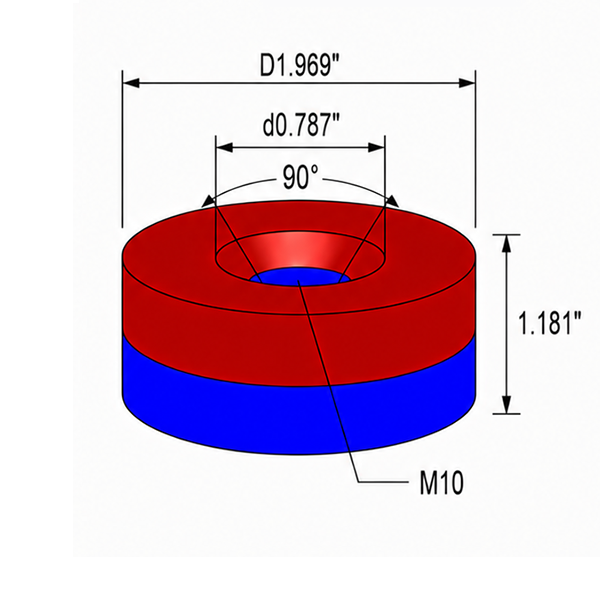

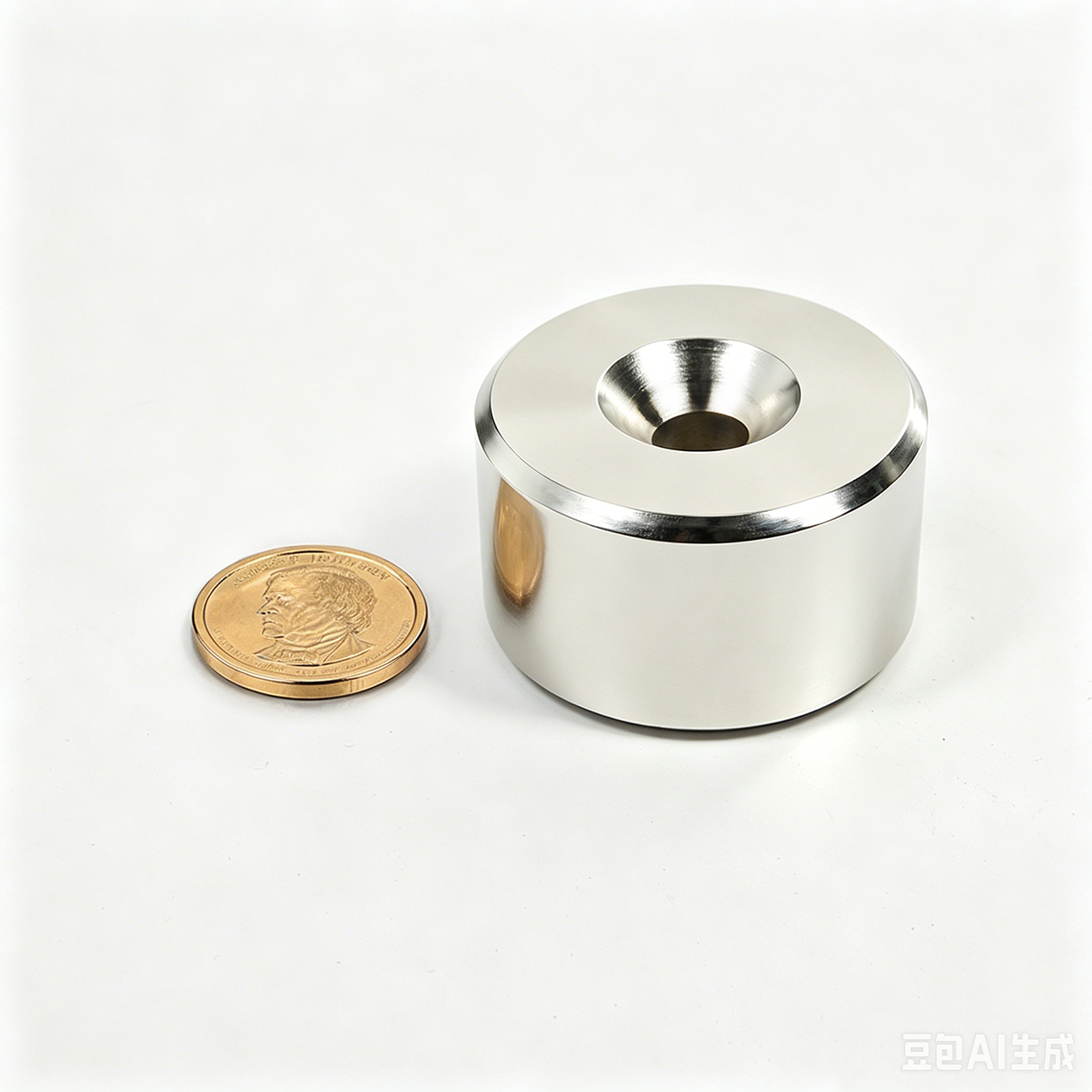

Countersunk Magnet 1.969″×1.181″-M10

Technical Data

Material:NdFeB
Diameter:1.969 inch (50.0 mm)
Thickness:1.181 inch (30.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M10(d0.413/0.787 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 12.7 oz (360 g)
Pull Force:approx. 50.71 lb (23 kgf)
Surface Gauss:approx. 3550 Gs
Max Operating Temp:176 F / 80℃

$20.000

each

20000 in stock

Quantity Price
1 - 99 $20.000
100 - 200 $20.000
201 - 500 $15.000
501 - 1,000 $10.000
1,001 - 2,000 $8.000
2,001+ $8.000

Countersunk Magnet 1.969″×1.181″-M10

Technical Data

Material:NdFeB
Diameter:1.969 Inch
Thickness:1.181 Inch
Tolerance:+/- 0.08 Inch
M:M10(d0.413/0.787 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 360 g
Power:approx 23 Kg
Surface Gauss:approx 3550 Gs
Max Operating Temp:176 F / 80℃

$20.000

each

20000 in stock

Quantity Price
1 - 99 $20.000
100 - 200 $20.000
201 - 500 $15.000
501 - 1,000 $10.000
1,001 - 2,000 $8.000
2,001+ $8.000
