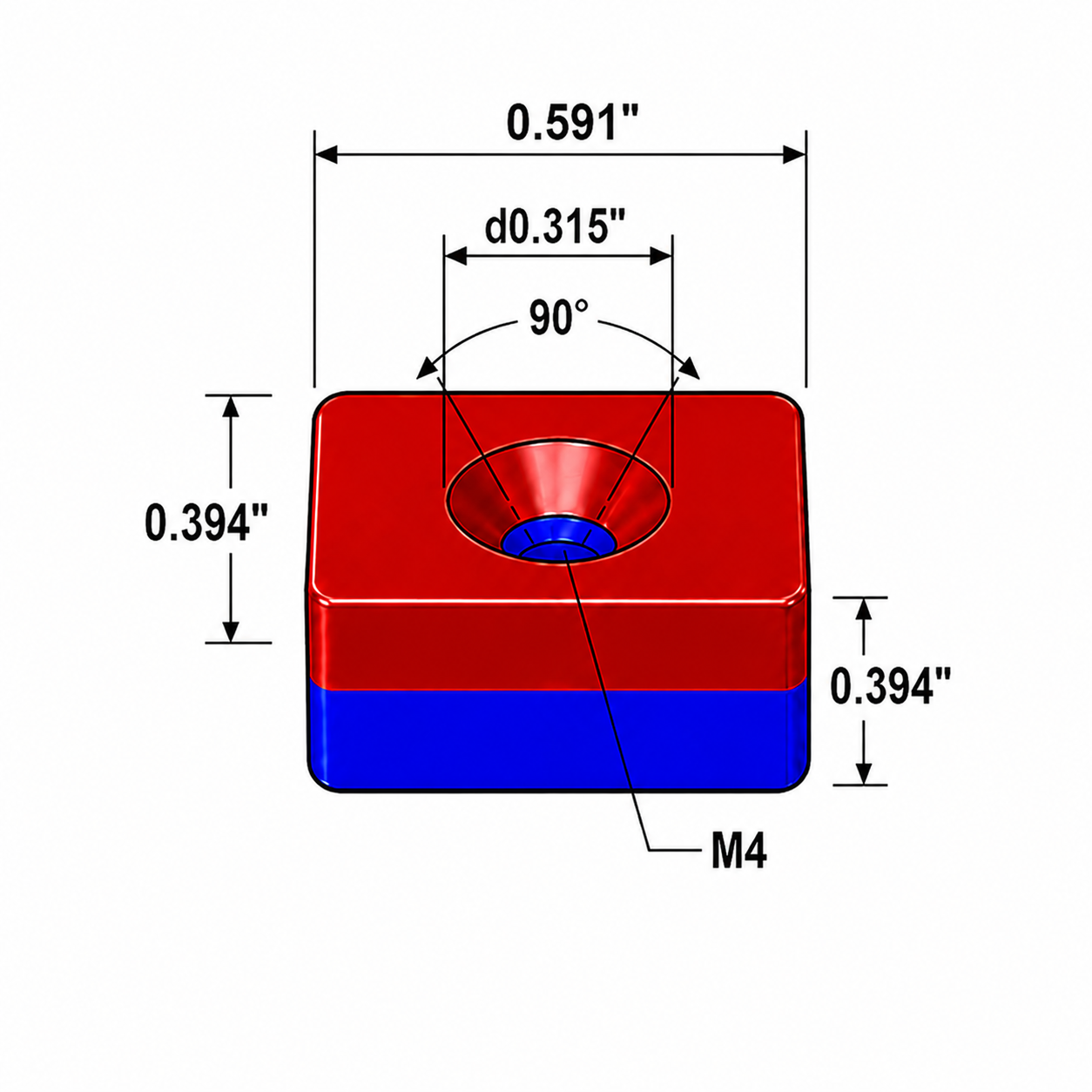

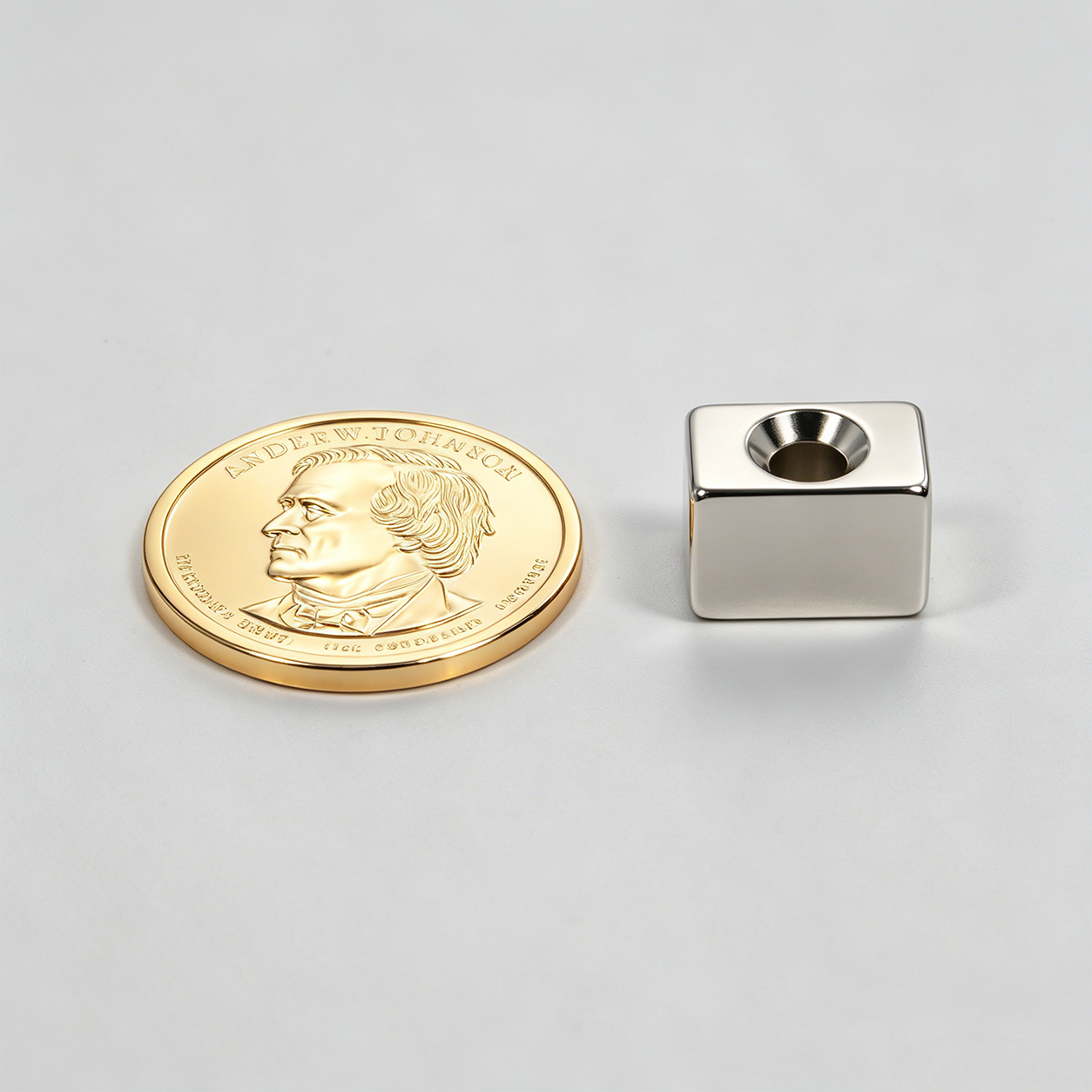

Countersunk Magnet 0.591″×0.394″×0.394″-M4

Technical Data

Material:NdFeB
Length:0.591 inch (15.0 mm)
Width:0.394 inch (10.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.353 oz (10 g)
Pull Force:approx. 5.51 lb (2.5 kgf)
Surface Gauss:approx. 3100 Gs
Max Operating Temp:176 F / 80℃

$0.500

each

20000 in stock

Quantity Price
1 - 49 $0.500
50 - 100 $0.500
101 - 200 $0.400
201 - 500 $0.300
501 - 1,000 $0.250
1,001+ $0.250

Countersunk Magnet 0.591″×0.394″×0.394″-M4

Technical Data

Material:NdFeB
Length:0.591 Inch
Width:0.394 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.04 Inch
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 10 g
Power:approx 2.5 Kg
Surface Gauss:approx 3100 Gs
Max Operating Temp:176 F / 80℃

$0.500

each

20000 in stock

Quantity Price
1 - 49 $0.500
50 - 100 $0.500
101 - 200 $0.400
201 - 500 $0.300
501 - 1,000 $0.250
1,001+ $0.250
