Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

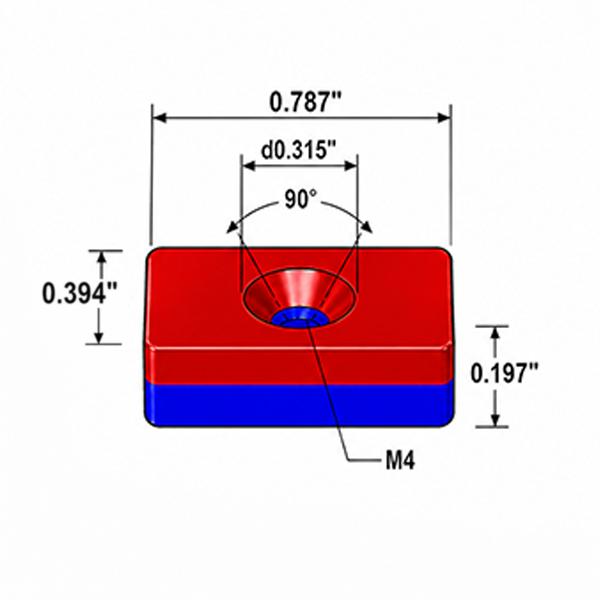

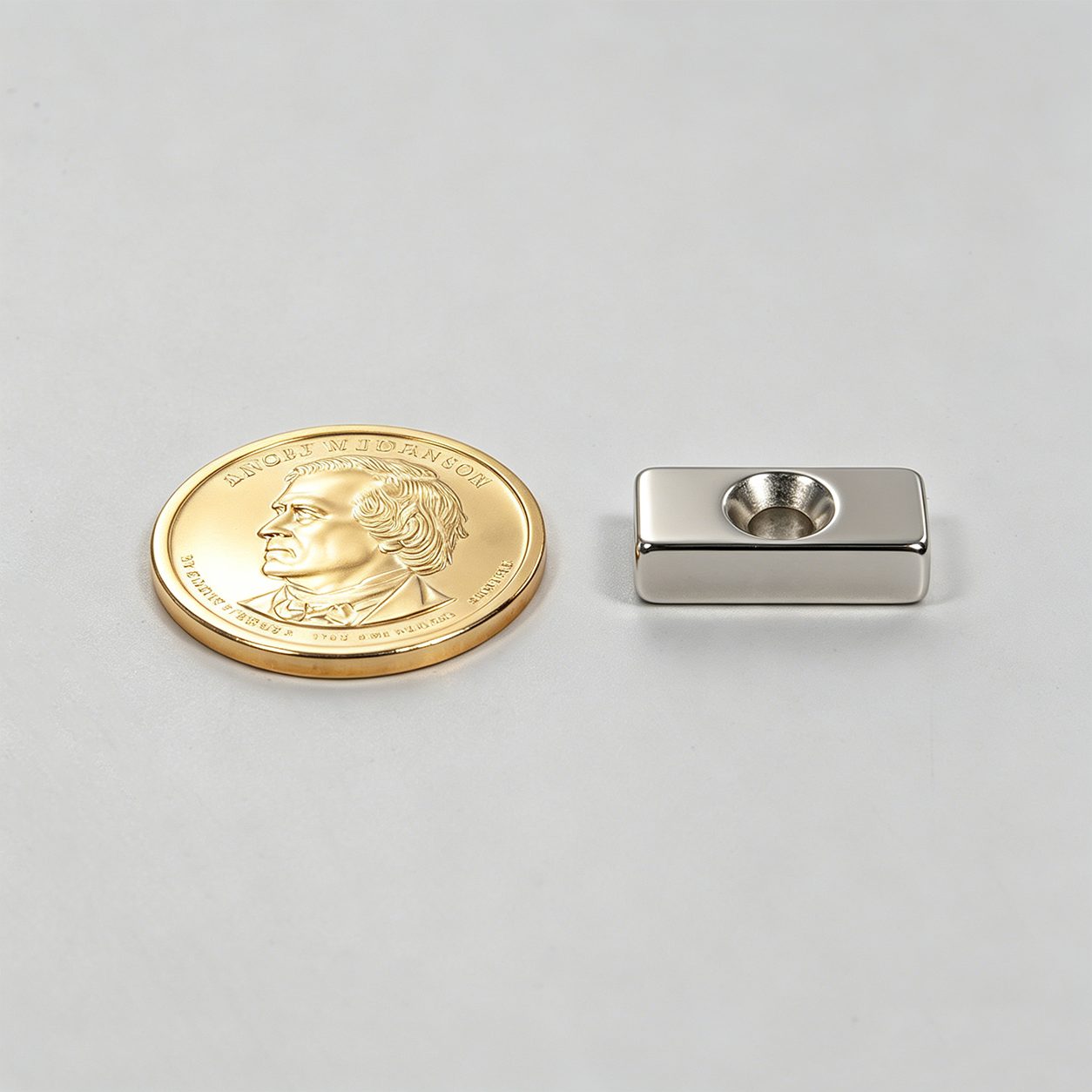

Countersunk Magnet 0.787″×0.394″×0.197″-M4

Technical Data

Material:NdFeB
Length:0.787 inch (20.0 mm)
Width:0.394 inch (10.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.19 oz (5.4 g)
Pull Force:approx. 5.73 lb (2.6 kgf)
Surface Gauss:approx. 2250 Gs
Max Operating Temp:176 F / 80℃

$0.310

each

20000 in stock

Quantity Price
1 - 49 $0.310
50 - 100 $0.310
101 - 200 $0.240
201 - 500 $0.190
501 - 1,000 $0.150
1,001+ $0.150

Countersunk Magnet 0.787″×0.394″×0.197″-M4

Technical Data

Material:NdFeB
Length:0.787 Inch
Width:0.394 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.04 Inch
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 5.4 g
Power:approx 2.6 Kg
Surface Gauss:approx 2250 Gs
Max Operating Temp:176 F / 80℃

$0.310

each

20000 in stock

Quantity Price
1 - 49 $0.310
50 - 100 $0.310
101 - 200 $0.240
201 - 500 $0.190
501 - 1,000 $0.150
1,001+ $0.150
