Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

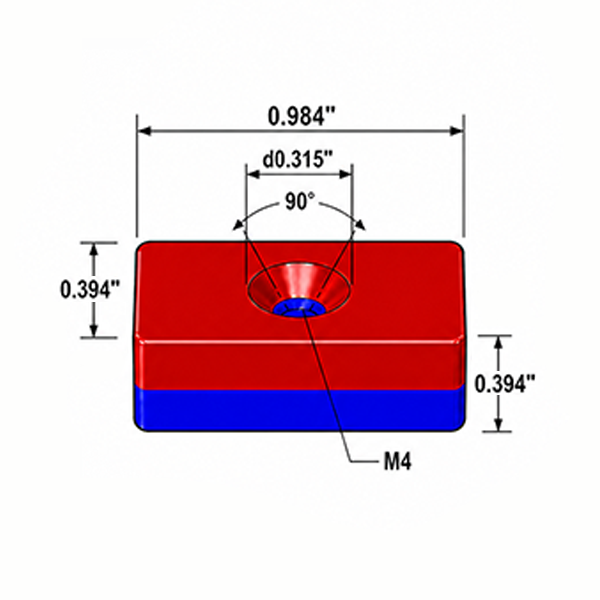

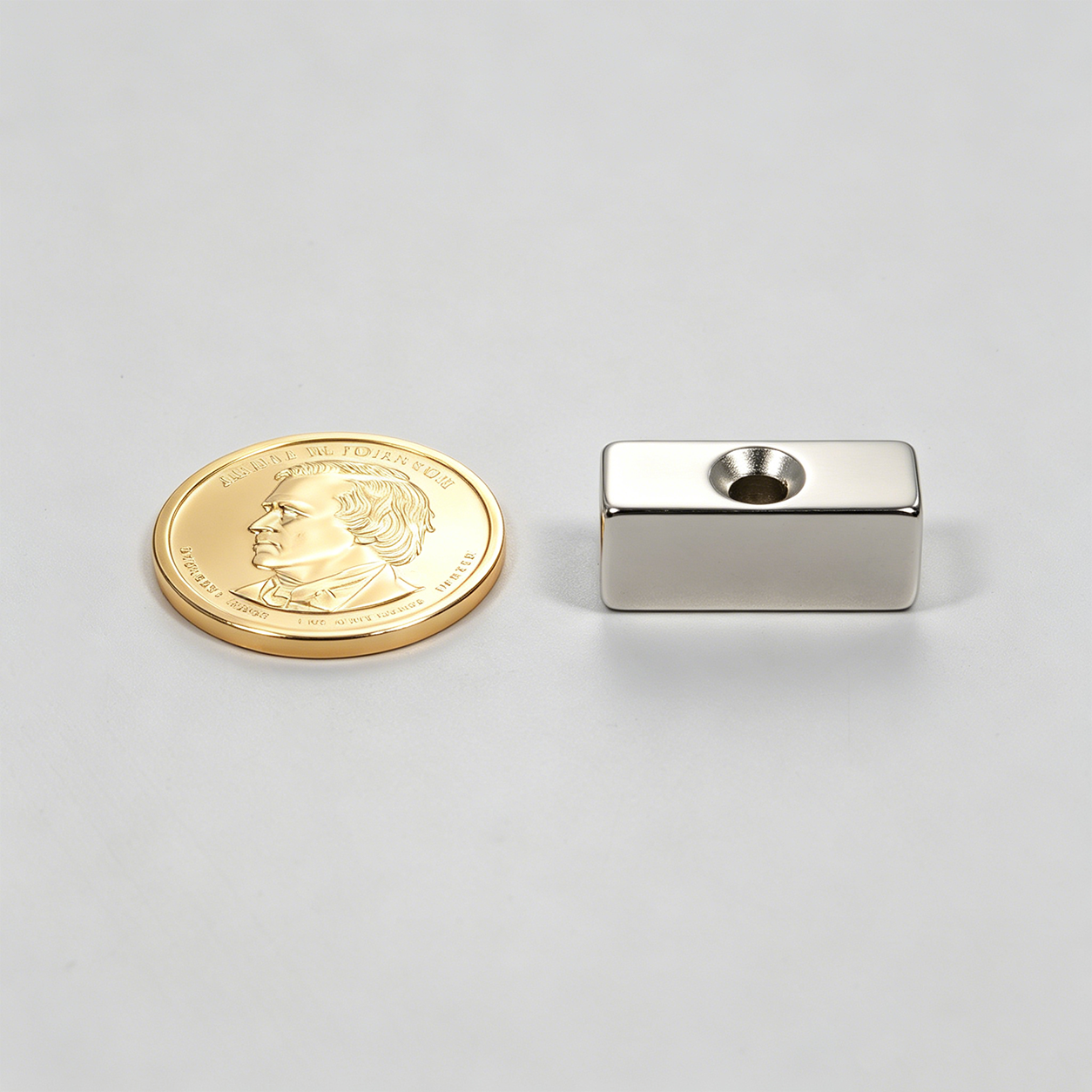

Countersunk Magnet 0.984″×0.394″×0.394″-M4

Technical Data

Material:NdFeB
Length:0.984 inch (25.0 mm)
Width:0.394 inch (10.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.06 inch (+/- 1.5 mm)
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.501 oz (14.2 g)
Pull Force:approx. 7.72 lb (3.5 kgf)
Surface Gauss:approx. 3400 Gs
Max Operating Temp:176 F / 80℃

$1.000

each

20000 in stock

Quantity Price
1 - 49 $1.000
50 - 100 $1.000
101 - 200 $0.700
201 - 500 $0.500
501 - 1,000 $0.400
1,001+ $0.400

Countersunk Magnet 0.984″×0.394″×0.394″-M4

Technical Data

Material:NdFeB
Length:0.984 Inch
Width:0.394 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.06 Inch
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 14.2 g
Power:approx 3.5 Kg
Surface Gauss:approx 3400 Gs
Max Operating Temp:176 F / 80℃

$1.000

each

20000 in stock

Quantity Price
1 - 49 $1.000
50 - 100 $1.000
101 - 200 $0.700
201 - 500 $0.500
501 - 1,000 $0.400
1,001+ $0.400
