Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

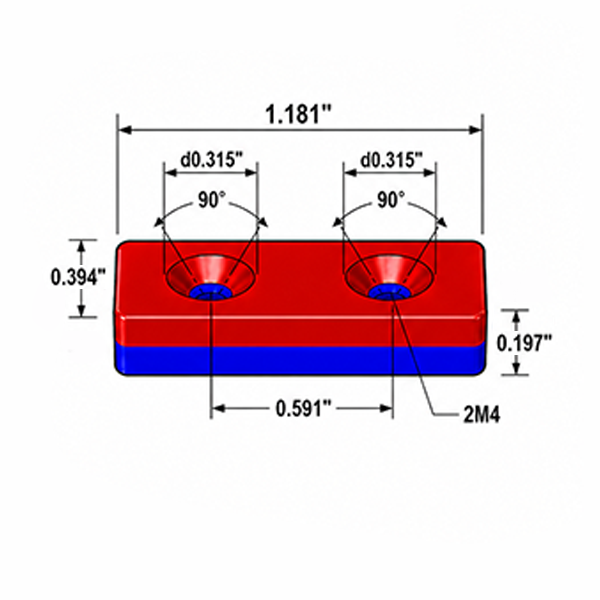

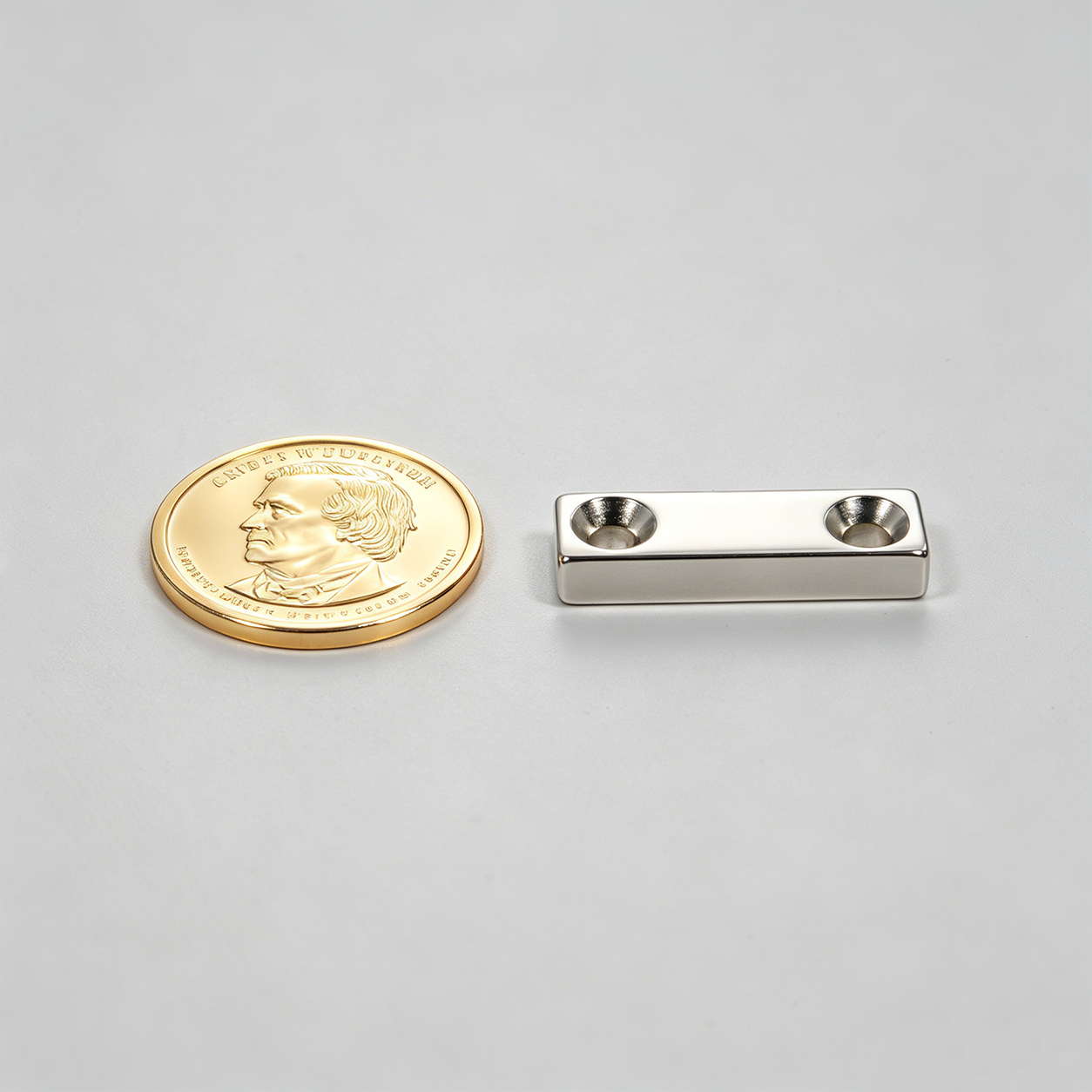

Countersunk Magnet 1.181″×0.394″×0.197″-2M4

Technical Data

Material:NdFeB
Length:1.181 inch (30.0 mm)
Width:0.394 inch (10.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.286 oz (8.1 g)
Pull Force:approx. 7.05 lb (3.2 kgf)
Surface Gauss:approx. 1800 Gs
Max Operating Temp:176 F / 80℃

$0.550

each

20000 in stock

Quantity Price
1 - 49 $0.550
50 - 100 $0.550
101 - 200 $0.430
201 - 500 $0.350
501 - 1,000 $0.280
1,001+ $0.280

Countersunk Magnet 1.181″×0.394″×0.197″-2M4

Technical Data

Material:NdFeB
Length:1.181 Inch
Width:0.394 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.08 Inch
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 8.1 g
Power:approx 3.2 Kg
Surface Gauss:approx 1800 Gs
Max Operating Temp:176 F / 80℃

$0.550

each

20000 in stock

Quantity Price
1 - 49 $0.550
50 - 100 $0.550
101 - 200 $0.430
201 - 500 $0.350
501 - 1,000 $0.280
1,001+ $0.280
