Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

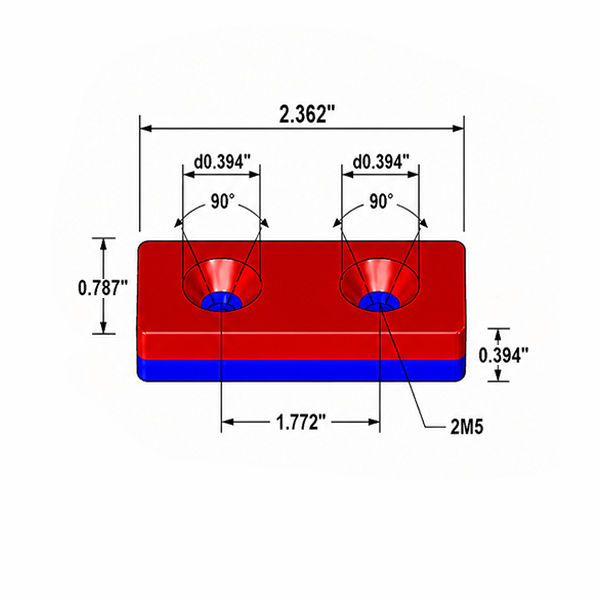

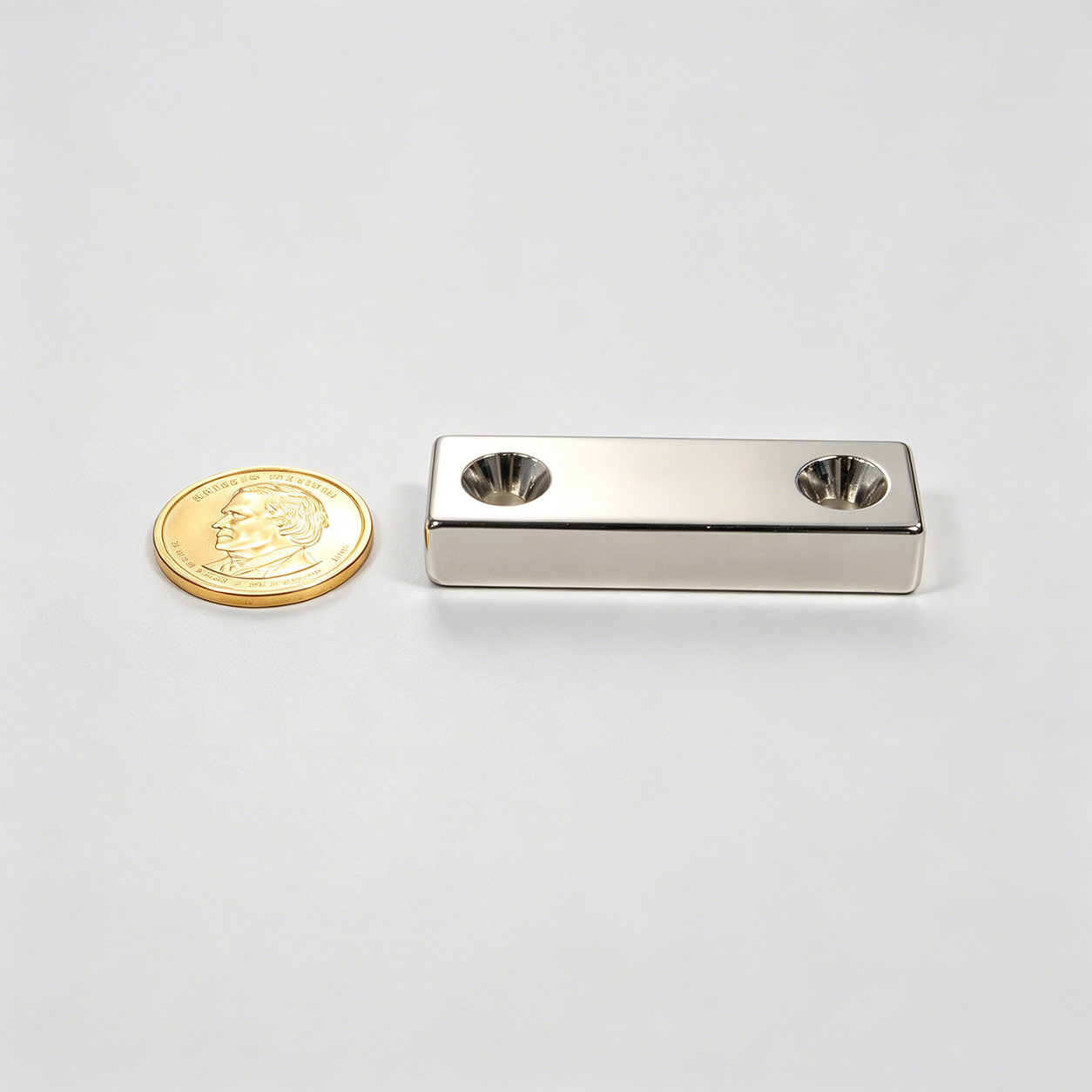

Countersunk Magnet 2.362″×0.787″×0.394″-2M5

Technical Data

Material:NdFeB
Length:2.362 inch (60.0 mm)
Width:0.787 inch (20.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 2.39 oz (67.8 g)
Pull Force:approx. 28.66 lb (13 kgf)
Surface Gauss:approx. 1270 Gs
Max Operating Temp:176 F / 80℃

$3.300

each

20000 in stock

Quantity Price
1 - 49 $3.300
50 - 100 $3.300
101 - 200 $2.400
201 - 500 $1.900
501 - 1,000 $1.500
1,001+ $1.500

Countersunk Magnet 2.362″×0.787″×0.394″-2M5

Technical Data

Material:NdFeB
Length:2.362 Inch
Width:0.787 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.08 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 67.8 g
Power:approx 13 Kg
Surface Gauss:approx 1270 Gs
Max Operating Temp:176 F / 80℃

$3.300

each

20000 in stock

Quantity Price
1 - 49 $3.300
50 - 100 $3.300
101 - 200 $2.400
201 - 500 $1.900
501 - 1,000 $1.500
1,001+ $1.500
