Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

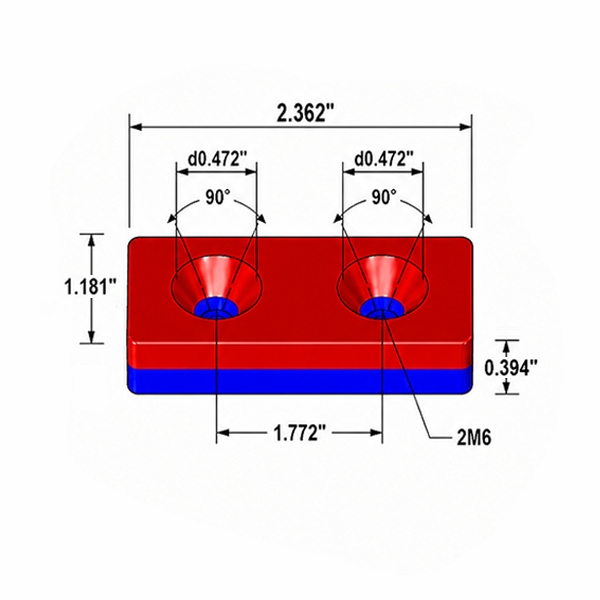

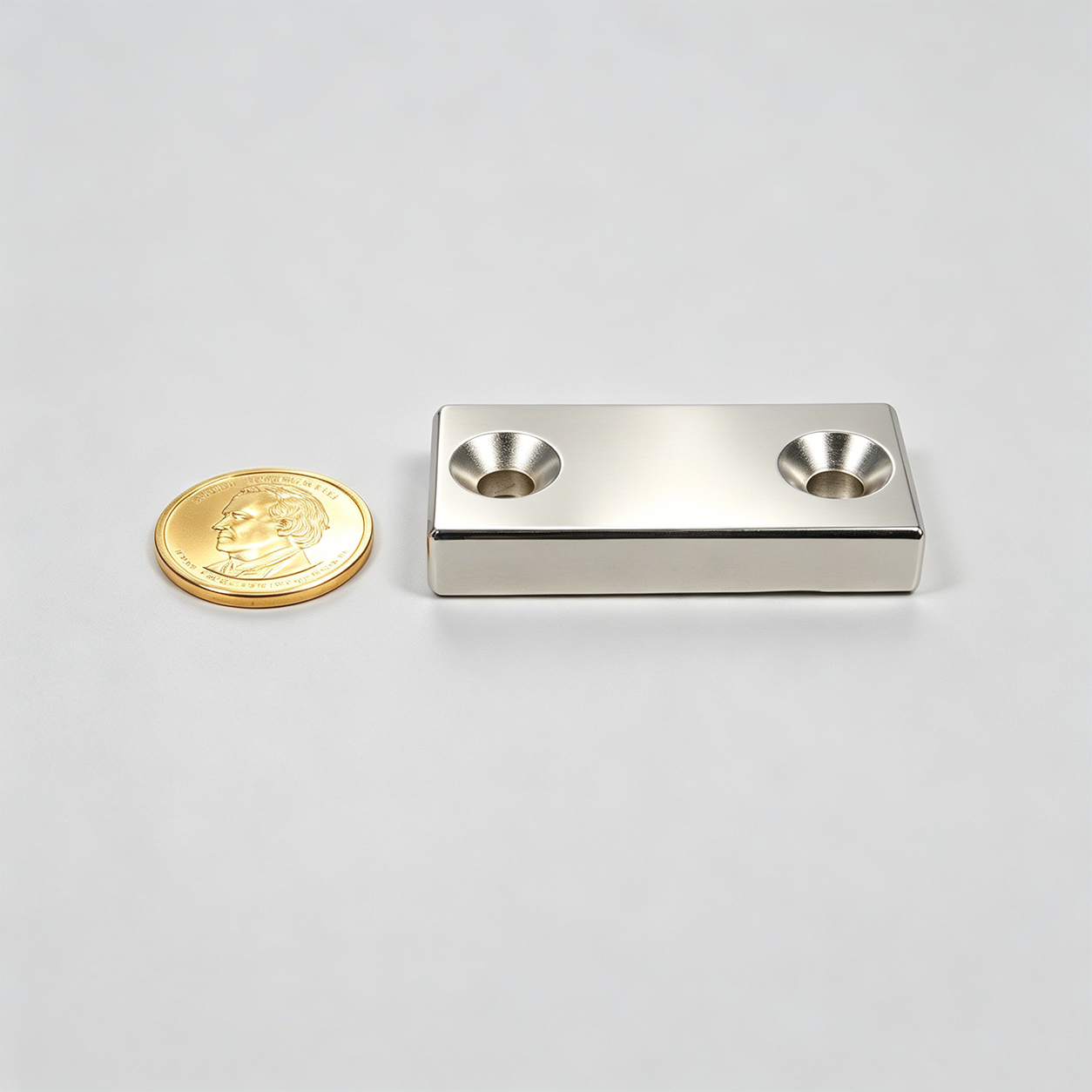

Countersunk Magnet 2.362″×1.181″×0.397″-2M6

Technical Data

Material:NdFeB
Length:2.362 inch (60.0 mm)
Width:1.181 inch (30.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 4.09 oz (116 g)
Pull Force:approx. 28.66 lb (13 kgf)
Surface Gauss:approx. 1070 Gs
Max Operating Temp:176 F / 80℃

$6.300

each

20000 in stock

Quantity Price
1 - 49 $6.300
50 - 100 $6.300
101 - 200 $4.600
201 - 500 $3.100
501 - 1,000 $2.400
1,001+ $2.400

Countersunk Magnet 2.362″×1.181″×0.397″-2M6

Technical Data

Material:NdFeB
Length:2.362 Inch
Width:1.181 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.08 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 116 g
Power:approx 13 Kg
Surface Gauss:approx 1070 Gs
Max Operating Temp:176 F / 80℃

$6.300

each

20000 in stock

Quantity Price
1 - 49 $6.300
50 - 100 $6.300
101 - 200 $4.600
201 - 500 $3.100
501 - 1,000 $2.400
1,001+ $2.400
