Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

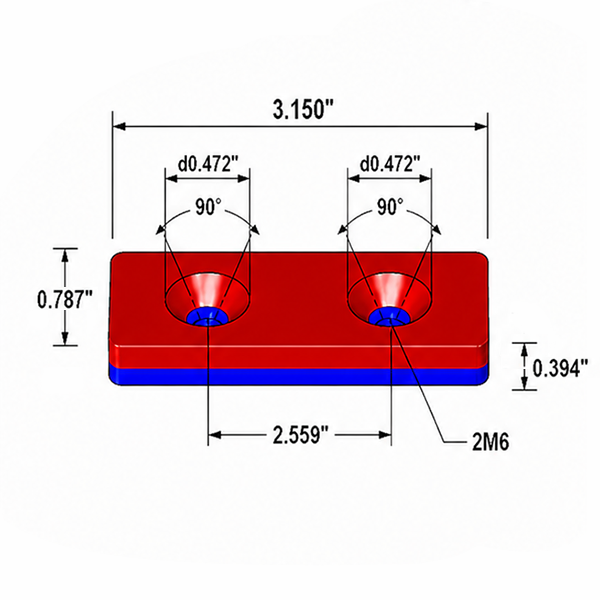

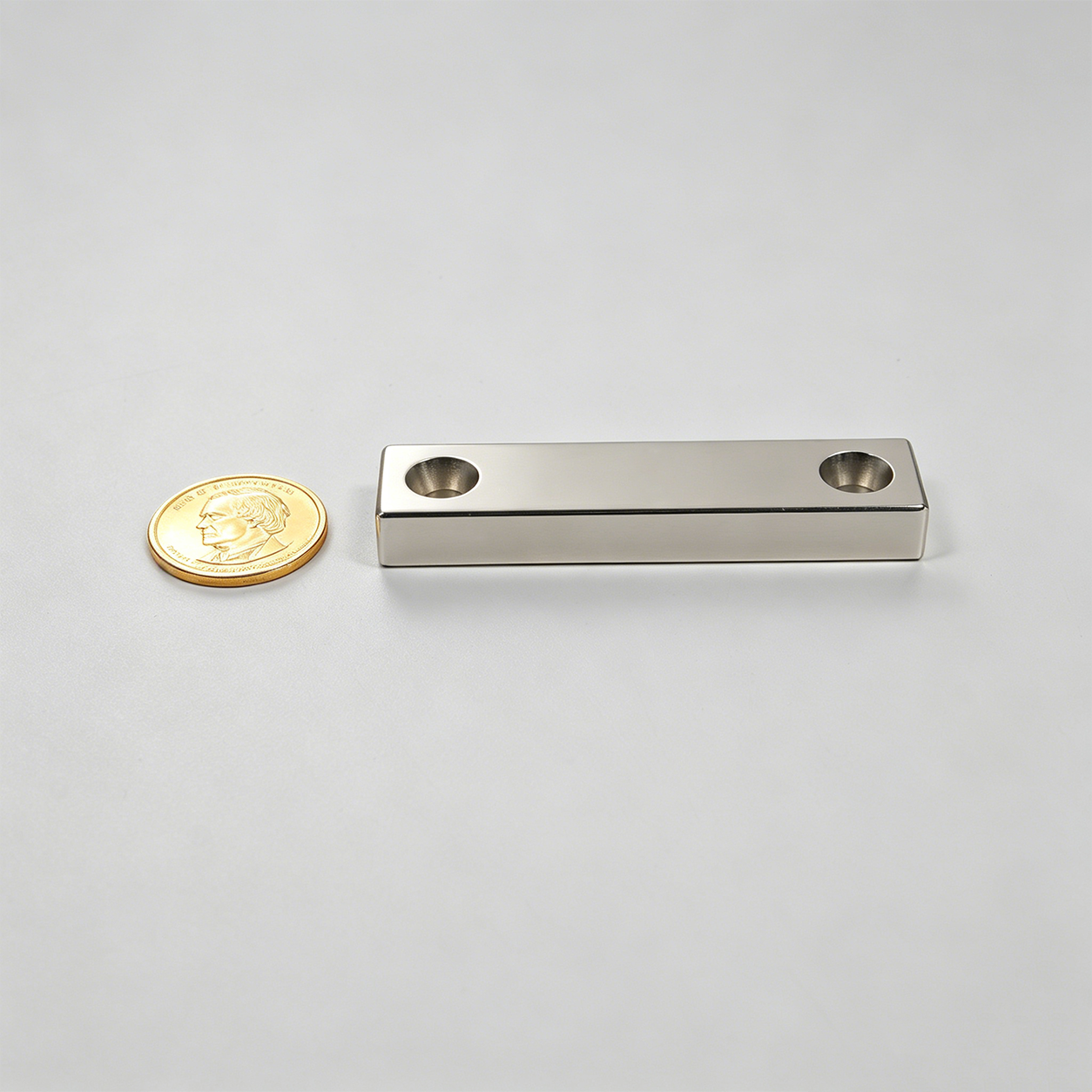

Countersunk Magnet 3.150″×0.787″×0.394″-2M6

Technical Data

Material:NdFeB
Length:3.15 inch (80.0 mm)
Width:0.787 inch (20.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 3.37 oz (95.6 g)
Pull Force:approx. 37.48 lb (17 kgf)
Surface Gauss:approx. 1250 Gs
Max Operating Temp:176 F / 80℃

$6.000

each

20000 in stock

Quantity Price
1 - 49 $6.000
50 - 100 $6.000
101 - 200 $4.500
201 - 500 $3.000
501 - 1,000 $2.300
1,001+ $2.300

Countersunk Magnet 3.150″×0.787″×0.394″-2M6

Technical Data

Material:NdFeB
Length:3.15 Inch
Width:0.787 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.08 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 95.6 g
Power:approx 17 Kg
Surface Gauss:approx 1250 Gs
Max Operating Temp:176 F / 80℃

$6.000

each

20000 in stock

Quantity Price
1 - 49 $6.000
50 - 100 $6.000
101 - 200 $4.500
201 - 500 $3.000
501 - 1,000 $2.300
1,001+ $2.300
