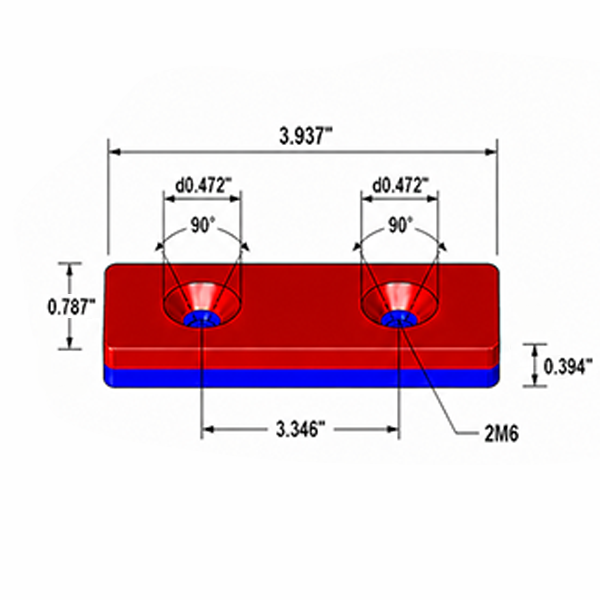

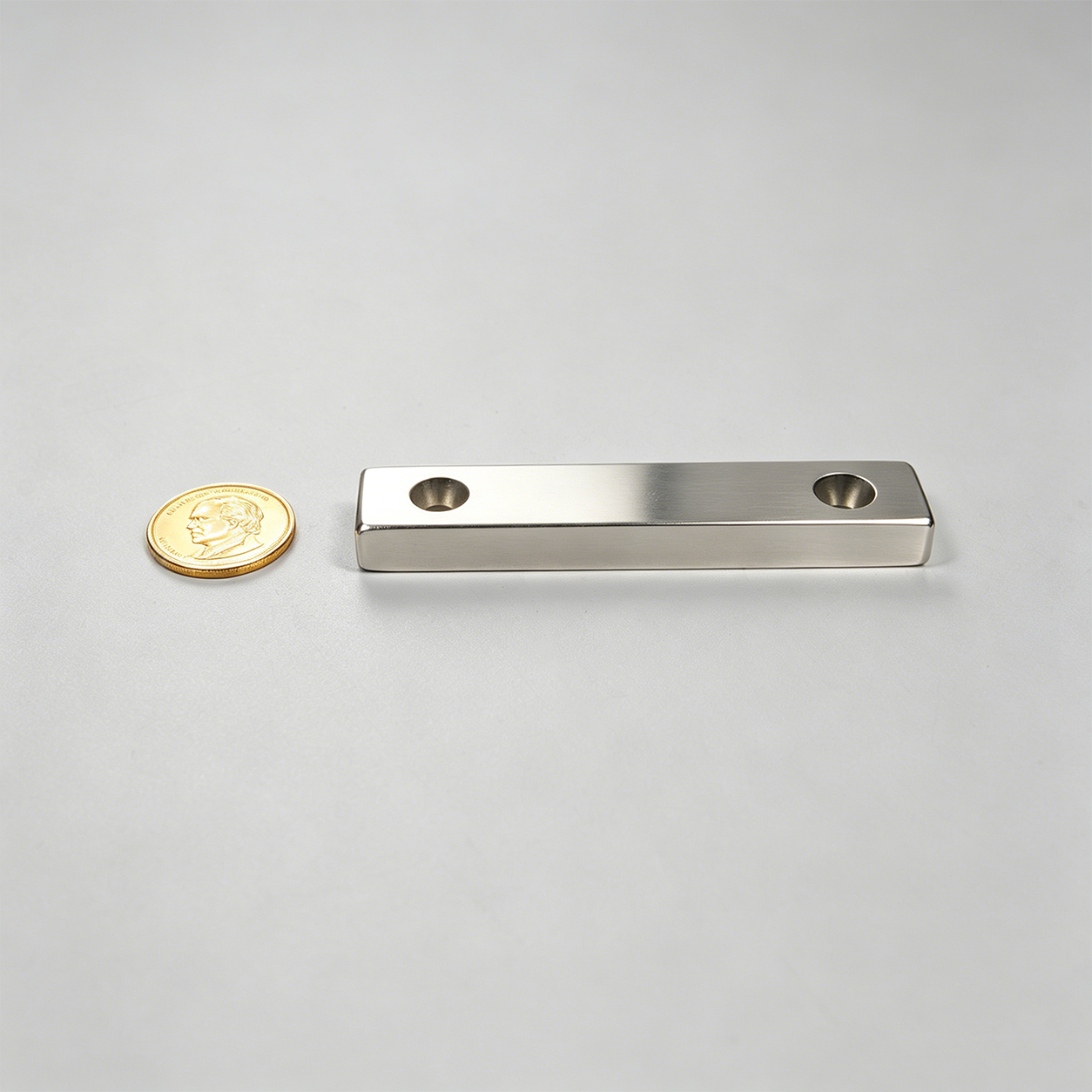

Countersunk Magnet 3.937″×0.787″×0.394″-2M6

Technical Data

Material:NdFeB
Length:3.937 inch (100.0 mm)
Width:0.787 inch (20.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.12 inch (+/- 3.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 4.22 oz (119.5 g)
Pull Force:approx. 41.89 lb (19 kgf)
Surface Gauss:approx. 1300 Gs
Max Operating Temp:176 F / 80℃

$7.000

each

20000 in stock

Quantity Price
1 - 49 $7.000
50 - 100 $7.000
101 - 200 $5.000
201 - 500 $4.000
501 - 1,000 $3.000
1,001+ $3.000

Countersunk Magnet 3.937″×0.787″×0.394″-2M6

Technical Data

Material:NdFeB
Length:3.937 Inch
Width:0.787 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.12 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 119.5 g
Power:approx 19 Kg
Surface Gauss:approx 1300 Gs
Max Operating Temp:176 F / 80℃

$7.000

each

20000 in stock

Quantity Price
1 - 49 $7.000
50 - 100 $7.000
101 - 200 $5.000
201 - 500 $4.000
501 - 1,000 $3.000
1,001+ $3.000
