Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

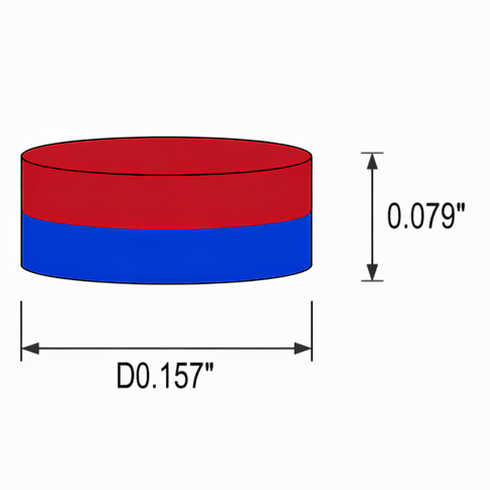

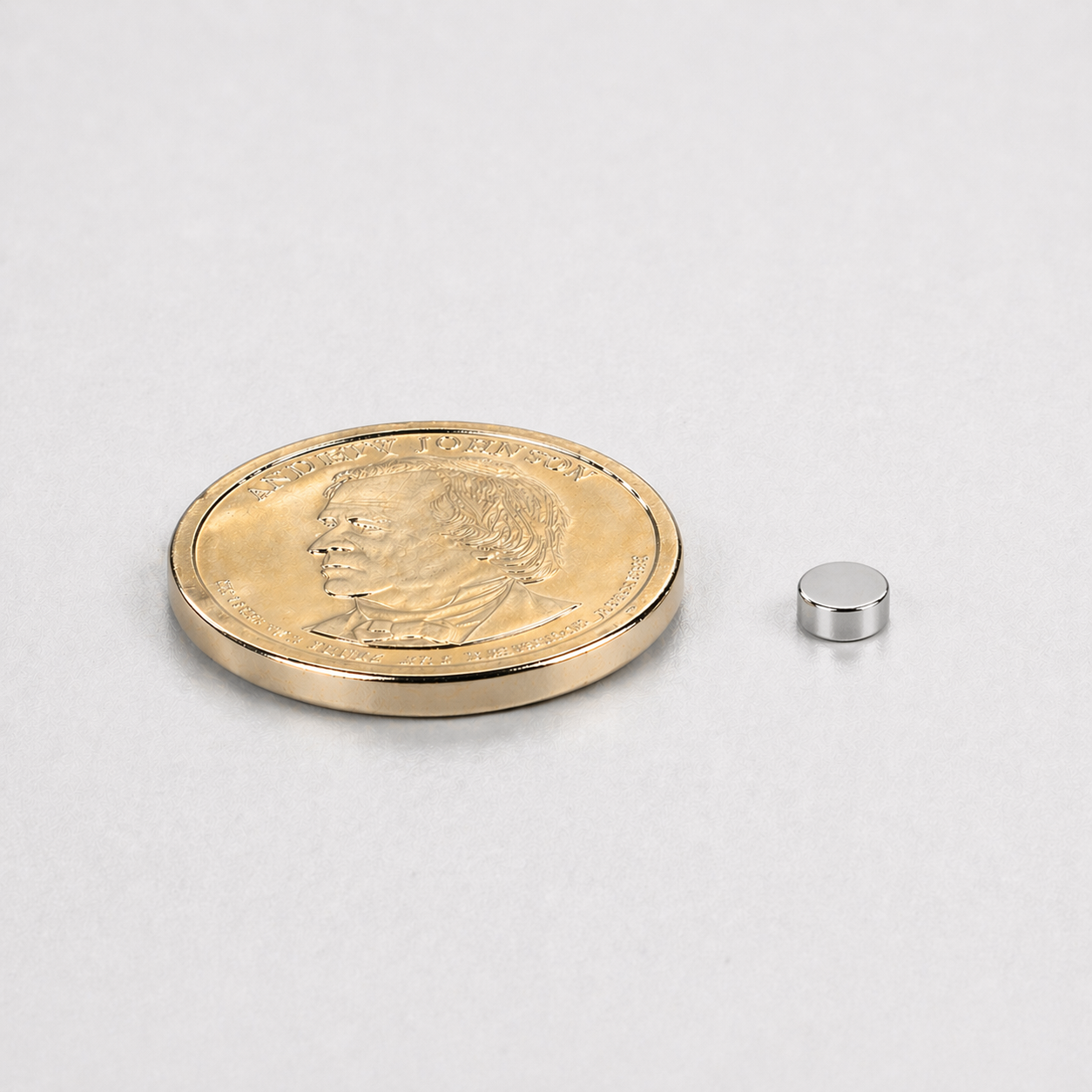

NdFeB Disc Magnet 0.157“×0.079”

Technical Data

Material:NdFeB
Diameter:0.157 inch (4.0 mm)
Thickness:0.079 inch (2.0 mm)
Tolerance:+/- 0.012 inch (+/- 0.3 mm)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.0071 oz (0.2 g)
Pull Force:approx. 0.68 lb (0.31 kgf)
Surface Gauss:approx. 2200 Gs
Max Operating Temp:176 F / 80℃

$0.400

each

20000 in stock

Quantity Price
1 - 99 $0.400
100 - 200 $0.400
201 - 500 $0.210
501 - 1,000 $0.100
1,001 - 2,000 $0.050
2,001+ $0.050

NdFeB Disc Magnet 0.157“×0.079”

Technical Data

Material:NdFeB
Diameter:0.157 Inch
Thickness:0.079 Inch
Tolerance:+/- 0.012 Inch
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 0.2 g
Power:approx 0.31 Kg
Surface Gauss:approx 2200 Gs
Max Operating Temp:176 F / 80℃

$0.400

each

20000 in stock

Quantity Price
1 - 99 $0.400
100 - 200 $0.400
201 - 500 $0.210
501 - 1,000 $0.100
1,001 - 2,000 $0.050
2,001+ $0.050
