Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

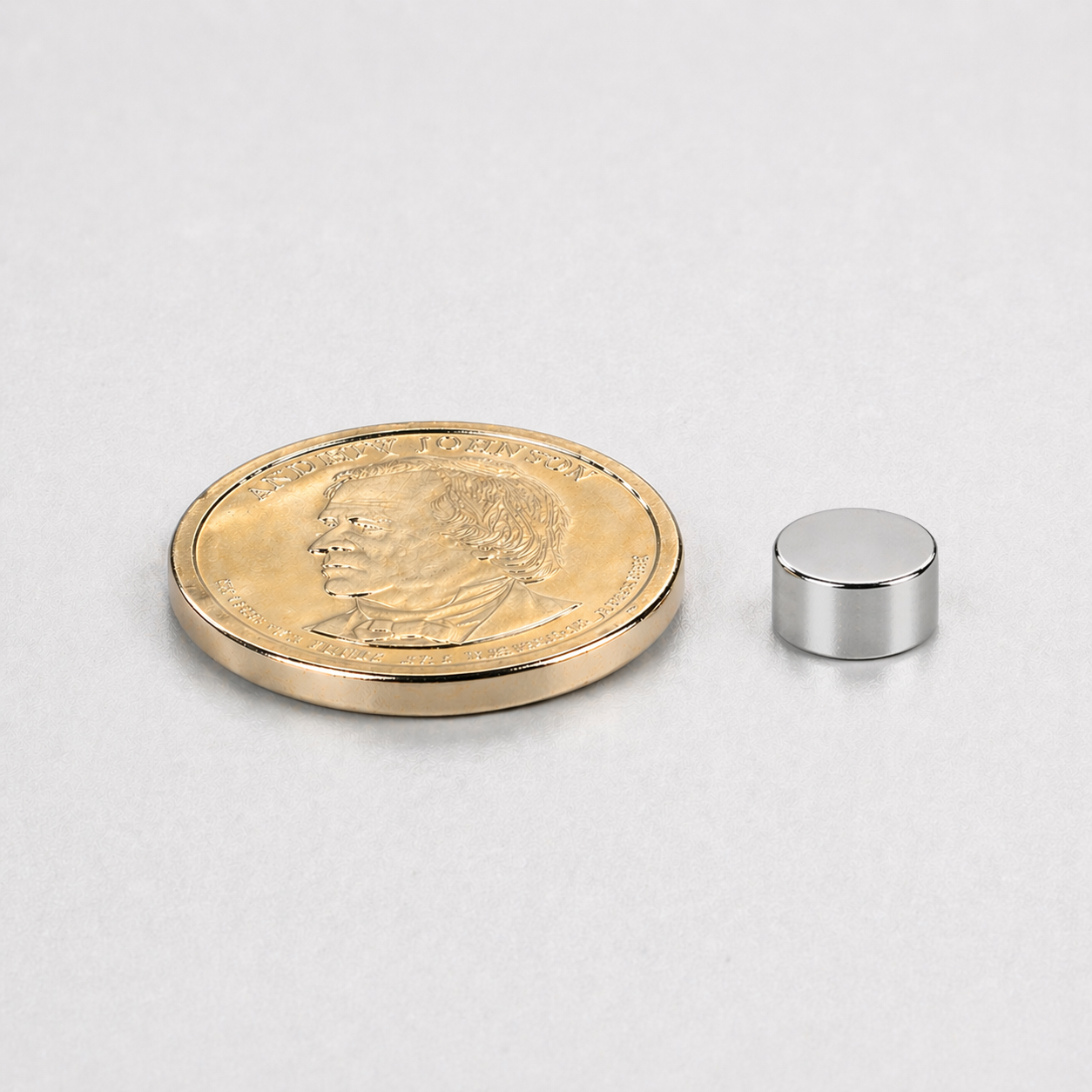

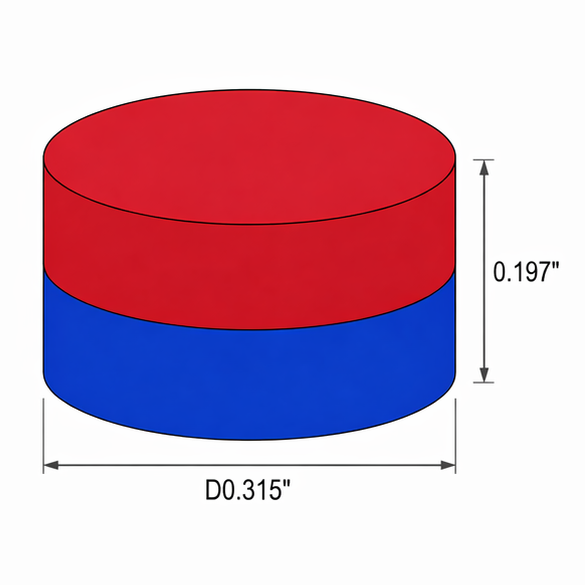

NdFeB Disc Magnet 0.315“×0.197”

Technical Data

Material:NdFeB
Diameter:0.315 inch (8.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.074 oz (2.1 g)
Pull Force:approx. 2.87 lb (1.3 kgf)
Surface Gauss:approx. 3100 Gs
Max Operating Temp:176 F / 80℃

$0.510

each

20000 in stock

Quantity Price
1 - 99 $0.510
100 - 200 $0.510
201 - 500 $0.380
501 - 1,000 $0.220
1,001 - 2,000 $0.180
2,001+ $0.180

NdFeB Disc Magnet 0.315“×0.197”

Technical Data

Material:NdFeB
Diameter:0.315 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 2.1 g
Power:approx 1.3 Kg
Surface Gauss:approx 3100 Gs
Max Operating Temp:176 F / 80℃

$0.510

each

20000 in stock

Quantity Price
1 - 99 $0.510
100 - 200 $0.510
201 - 500 $0.380
501 - 1,000 $0.220
1,001 - 2,000 $0.180
2,001+ $0.180
