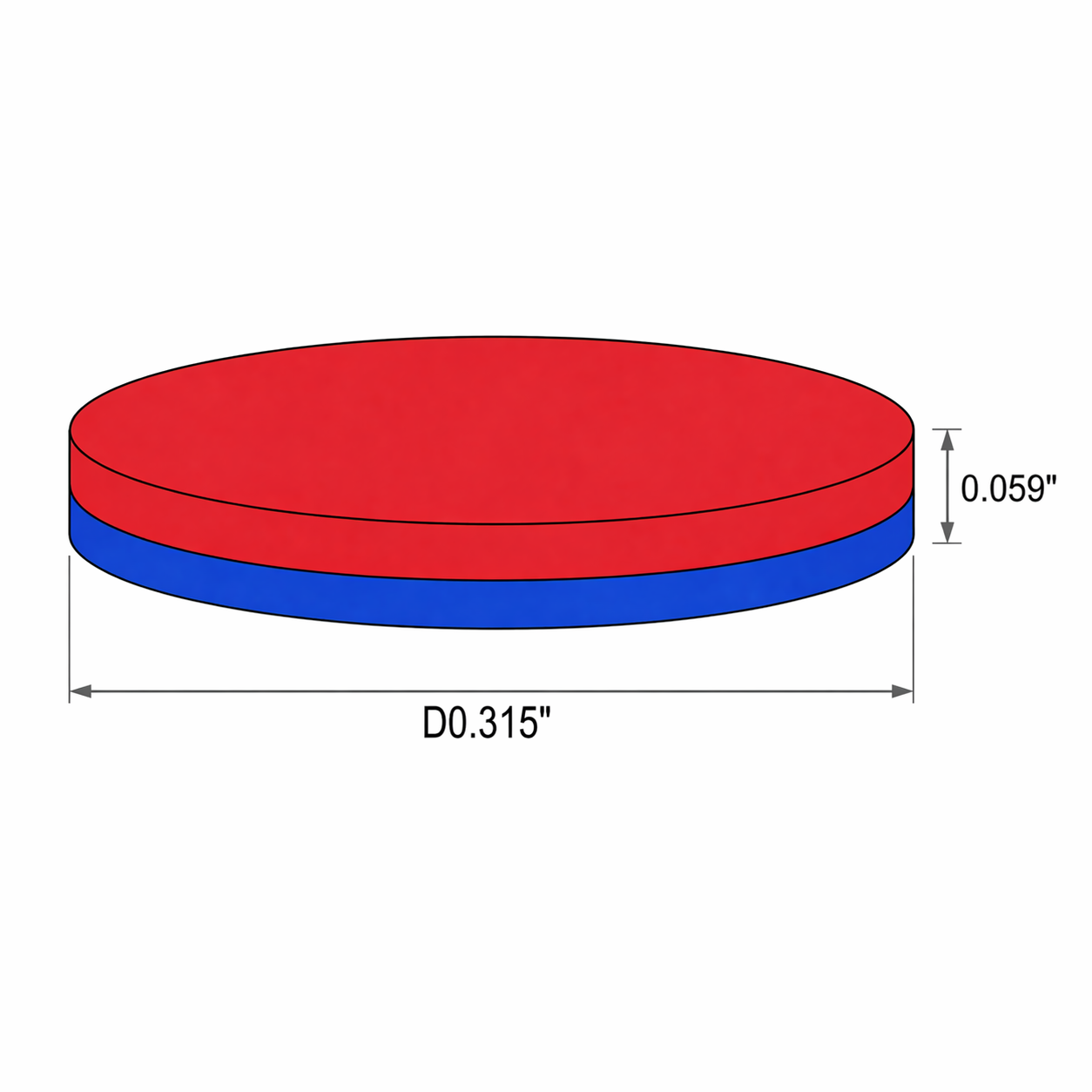

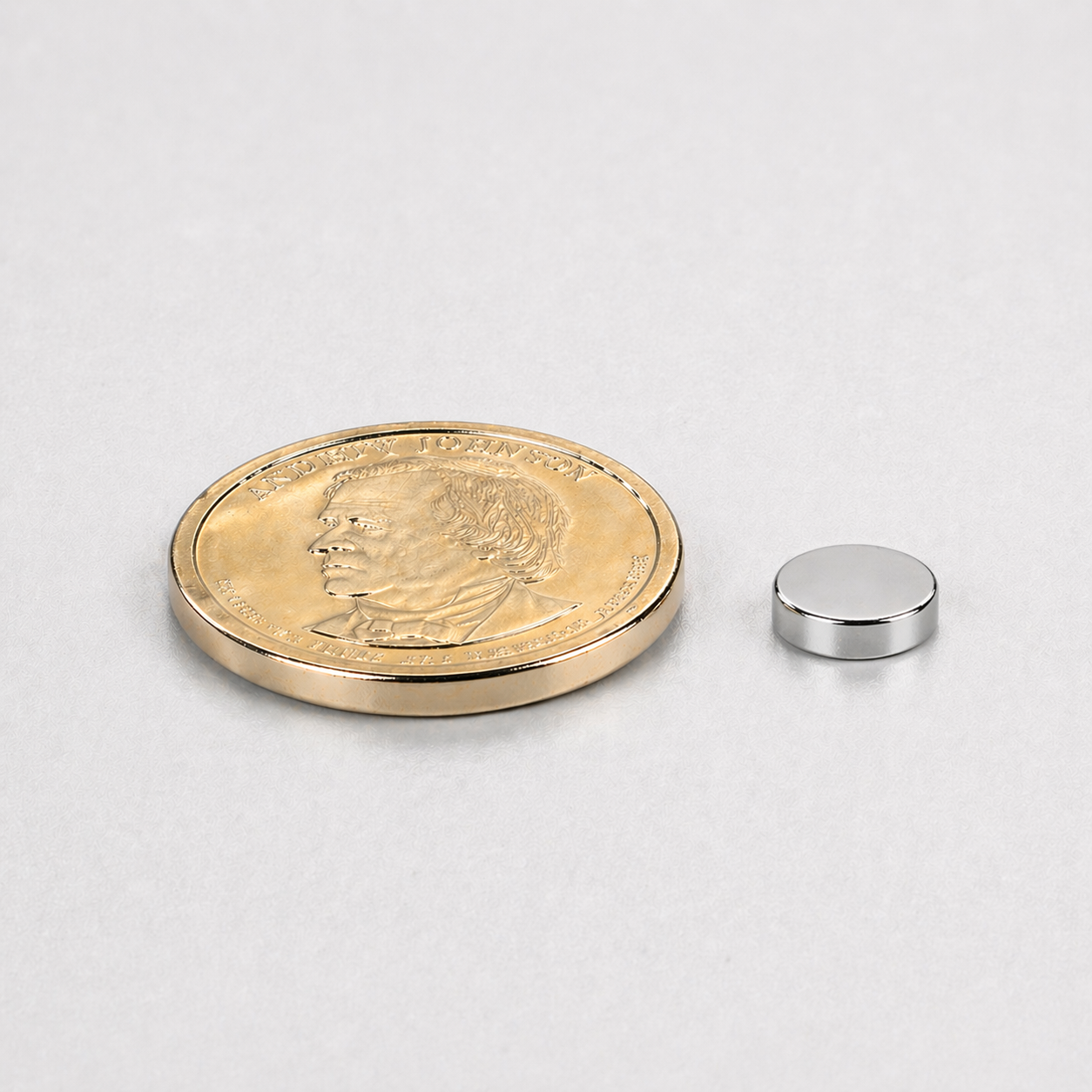

NdFeB Disc Magnet 0.315“×0.059”

Technical Data

Material:NdFeB
Diameter:0.315 inch (8.0 mm)
Thickness:0.059 inch (1.5 mm)
Tolerance:+/- 0.012 inch (+/- 0.3 mm)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.018 oz (0.5 g)
Pull Force:approx. 1.7 lb (0.77 kgf)
Surface Gauss:approx. 1050 Gs
Max Operating Temp:176 F / 80℃

$0.310

each

20000 in stock

Quantity Price
1 - 99 $0.310
100 - 200 $0.310
201 - 500 $0.250
501 - 1,000 $0.110
1,001 - 2,000 $0.070
2,001+ $0.070

NdFeB Disc Magnet 0.315“×0.059”

Technical Data

Material:NdFeB
Diameter:0.315 Inch
Thickness:0.059 Inch
Tolerance:+/- 0.012 Inch
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 0.5 g
Power:approx 0.77 Kg
Surface Gauss:approx 1050 Gs
Max Operating Temp:176 F / 80℃

$0.310

each

20000 in stock

Quantity Price
1 - 99 $0.310
100 - 200 $0.310
201 - 500 $0.250
501 - 1,000 $0.110
1,001 - 2,000 $0.070
2,001+ $0.070
