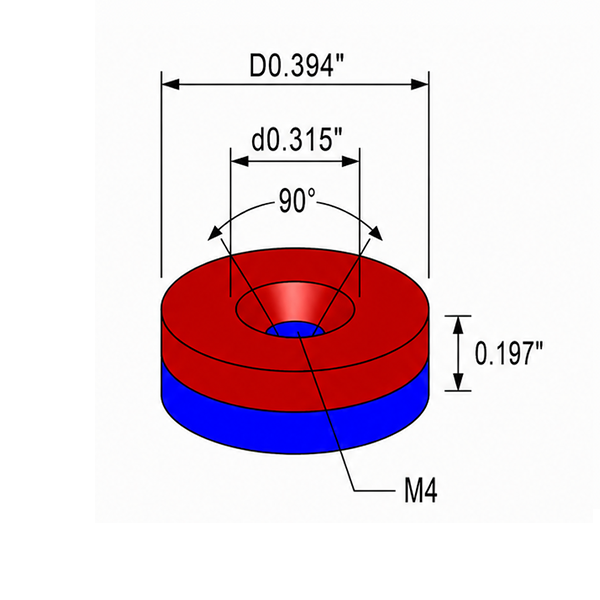

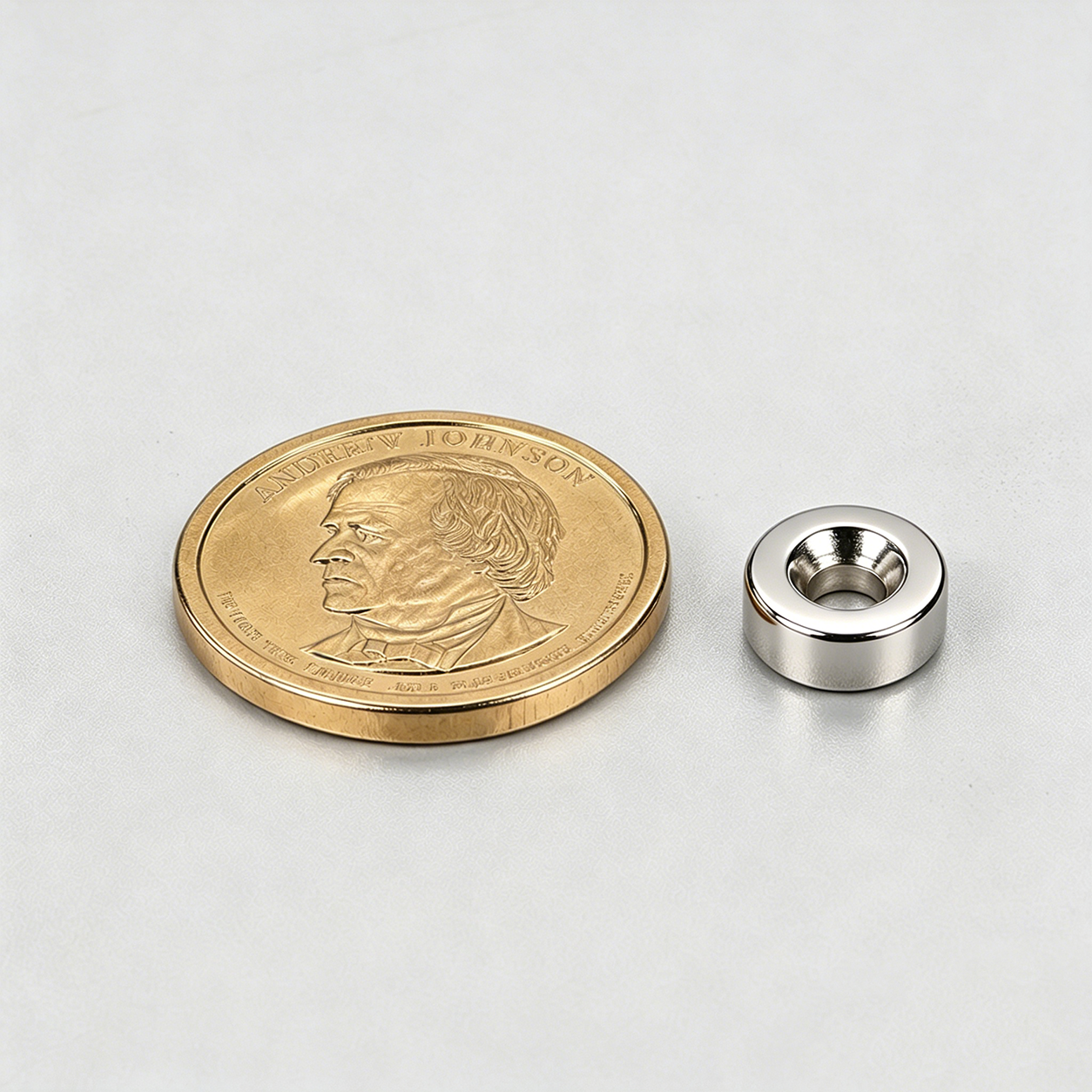

Countersunk Magnet 0.394″×0.197″-M4

Technical Data

Material:NdFeB
Diameter:0.394 inch (10.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.071 oz (2 g)
Pull Force:approx. 2.2 lb (1 kgf)
Surface Gauss:approx. 2750 Gs
Max Operating Temp:176 F / 80℃

$0.140

each

20000 in stock

Quantity Price
1 - 99 $0.140
100 - 200 $0.140
201 - 500 $0.100
501 - 1,000 $0.080
1,001 - 2,000 $0.050
2,001+ $0.050

Countersunk Magnet 0.394″×0.197″-M4

Technical Data

Material:NdFeB
Diameter:0.394 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.02 Inch
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 2 g
Power:approx 1 Kg
Surface Gauss:approx 2750 Gs
Max Operating Temp:176 F / 80℃

$0.140

each

20000 in stock

Quantity Price
1 - 99 $0.140
100 - 200 $0.140
201 - 500 $0.100
501 - 1,000 $0.080
1,001 - 2,000 $0.050
2,001+ $0.050
