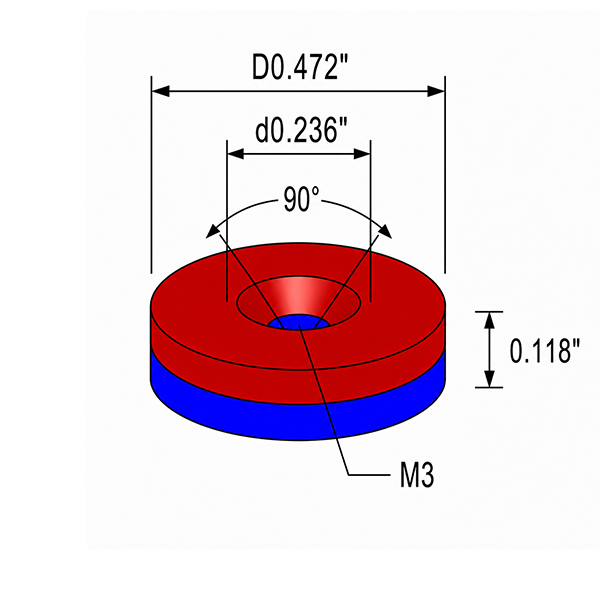

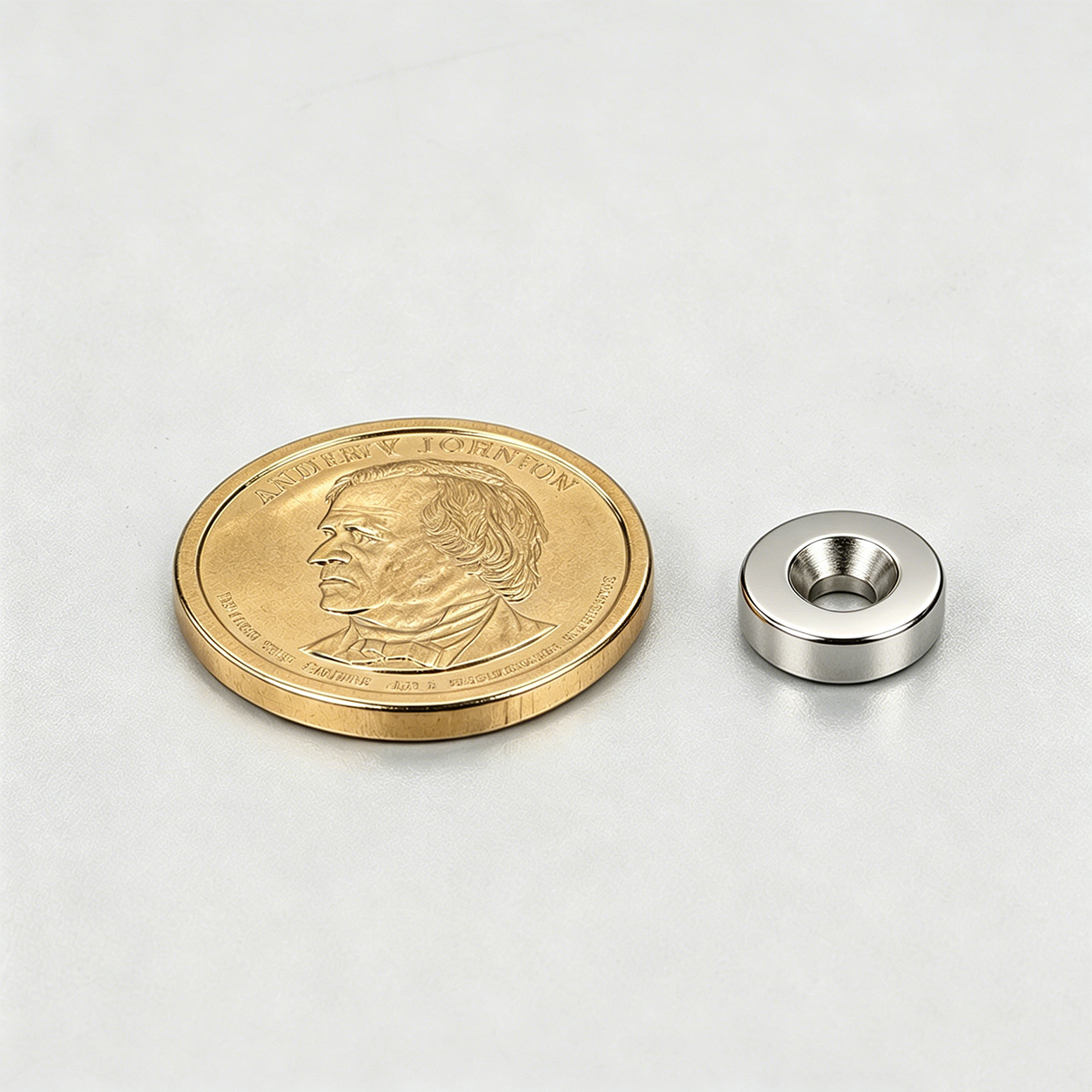

Countersunk Magnet 0.472″×0.118″-M3

Technical Data

Material:NdFeB
Diameter:0.472 inch (12.0 mm)
Thickness:0.118 inch (3.0 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)
M:M3(d0.138/0.236x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.063 oz (1.8 g)
Pull Force:approx. 2.54 lb (1.15 kgf)
Surface Gauss:approx. 2000 Gs
Max Operating Temp:176 F / 80℃

$0.110

each

20000 in stock

Quantity Price
1 - 99 $0.110
100 - 200 $0.110
201 - 500 $0.080
501 - 1,000 $0.070
1,001 - 2,000 $0.060
2,001+ $0.060

Countersunk Magnet 0.472″×0.118″-M3

Technical Data

Material:NdFeB
Diameter:0.472 Inch
Thickness:0.118 Inch
Tolerance:+/- 0.04 Inch
M:M3(d0.138/0.236x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 1.8 g
Power:approx 1.15 Kg
Surface Gauss:approx 2000 Gs
Max Operating Temp:176 F / 80℃

$0.110

each

20000 in stock

Quantity Price
1 - 99 $0.110
100 - 200 $0.110
201 - 500 $0.080
501 - 1,000 $0.070
1,001 - 2,000 $0.060
2,001+ $0.060
