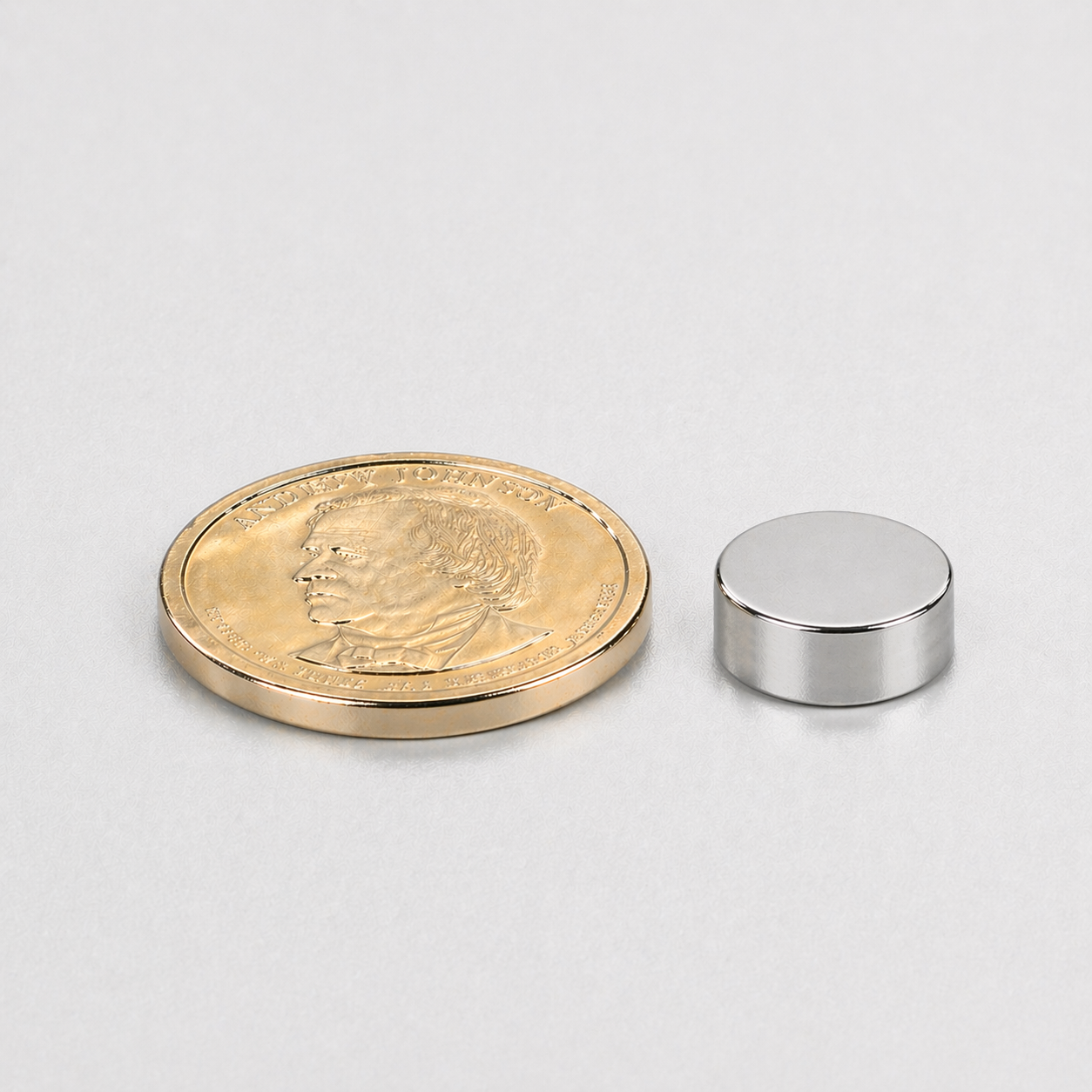

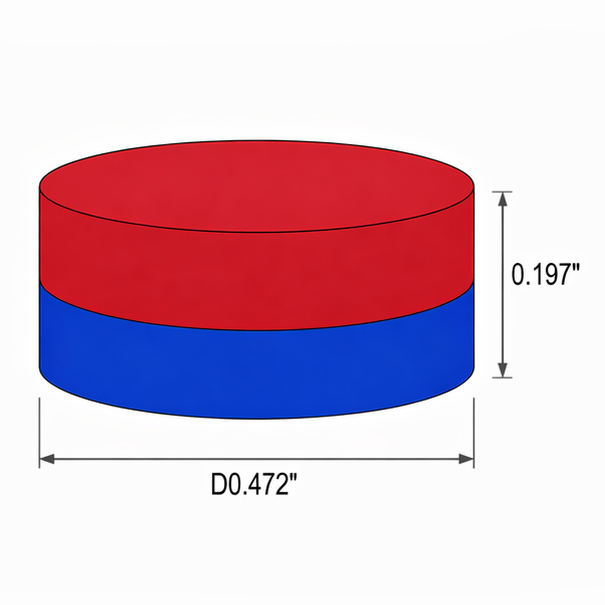

NdFeB Disc Magnet 0.472”×0.197“

Technical Data

Material:NdFeB
Diameter:0.472 inch (12.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.131 oz (3.7 g)
Pull Force:approx. 3.53 lb (1.6 kgf)
Surface Gauss:approx. 1400 Gs
Max Operating Temp:176 F / 80℃

$0.600

each

20000 in stock

Quantity Price
1 - 99 $0.600
100 - 200 $0.600
201 - 500 $0.590
501 - 1,000 $0.320
1,001 - 2,000 $0.250
2,001+ $0.250

NdFeB Disc Magnet 0.472”×0.197“

Technical Data

Material:NdFeB
Diameter:0.472 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.04 Inch
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 3.7 g
Power:approx 1.6 Kg
Surface Gauss:approx 1400 Gs
Max Operating Temp:176 F / 80℃

$0.600

each

20000 in stock

Quantity Price
1 - 99 $0.600
100 - 200 $0.600
201 - 500 $0.590
501 - 1,000 $0.320
1,001 - 2,000 $0.250
2,001+ $0.250
