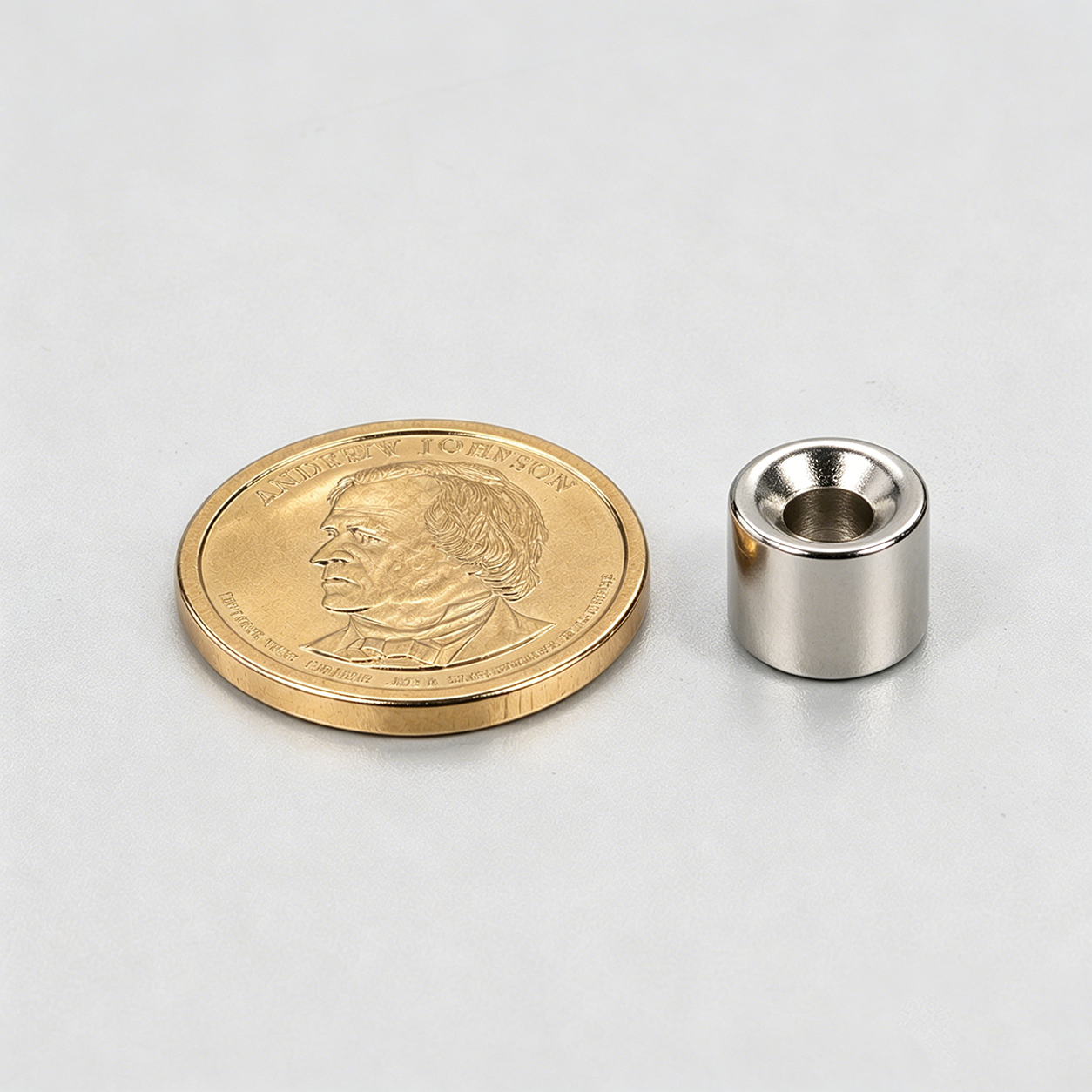

Countersunk Magnet 0.472″×0.394″-M5

Technical Data

Material:NdFeB
Diameter:0.472 inch (12.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)

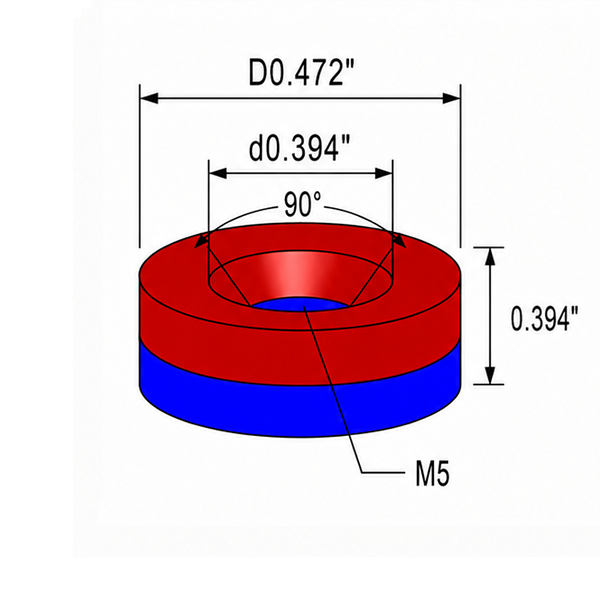

M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.265 oz (7.5 g)
Pull Force:approx. 3.97 lb (1.8 kgf)
Surface Gauss:approx. 3000 Gs
Max Operating Temp:176 F / 80℃

$0.350

each

20000 in stock

Quantity Price
1 - 99 $0.350
100 - 200 $0.350
201 - 500 $0.270
501 - 1,000 $0.210
1,001 - 2,000 $0.170
2,001+ $0.170

Countersunk Magnet 0.472″×0.394″-M5

Technical Data

Material:NdFeB
Diameter:0.472 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.04 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 7.5 g
Power:approx 1.8 Kg
Surface Gauss:approx 3000 Gs
Max Operating Temp:176 F / 80℃

$0.350

each

20000 in stock

Quantity Price
1 - 99 $0.350
100 - 200 $0.350
201 - 500 $0.270
501 - 1,000 $0.210
1,001 - 2,000 $0.170
2,001+ $0.170
