Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

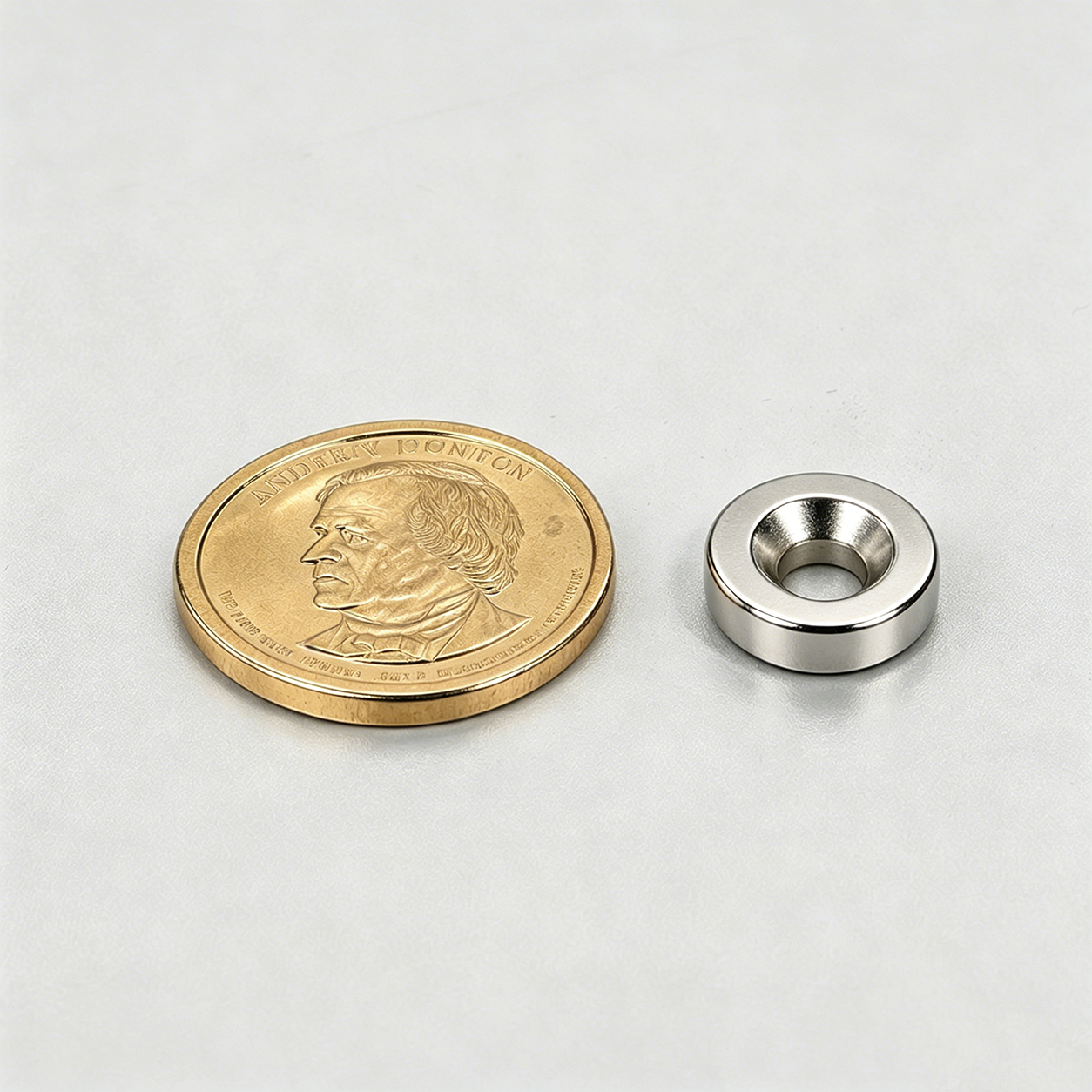

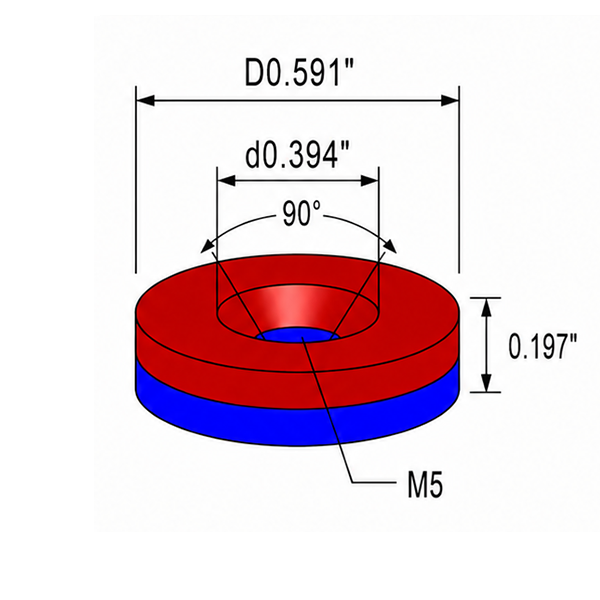

Countersunk Magnet 0.591″×0.197″-M5

Technical Data

Material:NdFeB
Diameter:0.591 inch (15.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.169 oz (4.8 g)
Pull Force:approx. 4.41 lb (2 kgf)
Surface Gauss:approx. 1400 Gs
Max Operating Temp:176 F / 80℃

$0.250

each

20000 in stock

Quantity Price
1 - 99 $0.250
100 - 200 $0.250
201 - 500 $0.200
501 - 1,000 $0.160
1,001 - 2,000 $0.130
2,001+ $0.130

Countersunk Magnet 0.591″×0.197″-M5

Technical Data

Material:NdFeB
Diameter:0.591 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.04 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 4.8 g
Power:approx 2 Kg
Surface Gauss:approx 1400 Gs
Max Operating Temp:176 F / 80℃

$0.250

each

20000 in stock

Quantity Price
1 - 99 $0.250
100 - 200 $0.250
201 - 500 $0.200
501 - 1,000 $0.160
1,001 - 2,000 $0.130
2,001+ $0.130
