Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

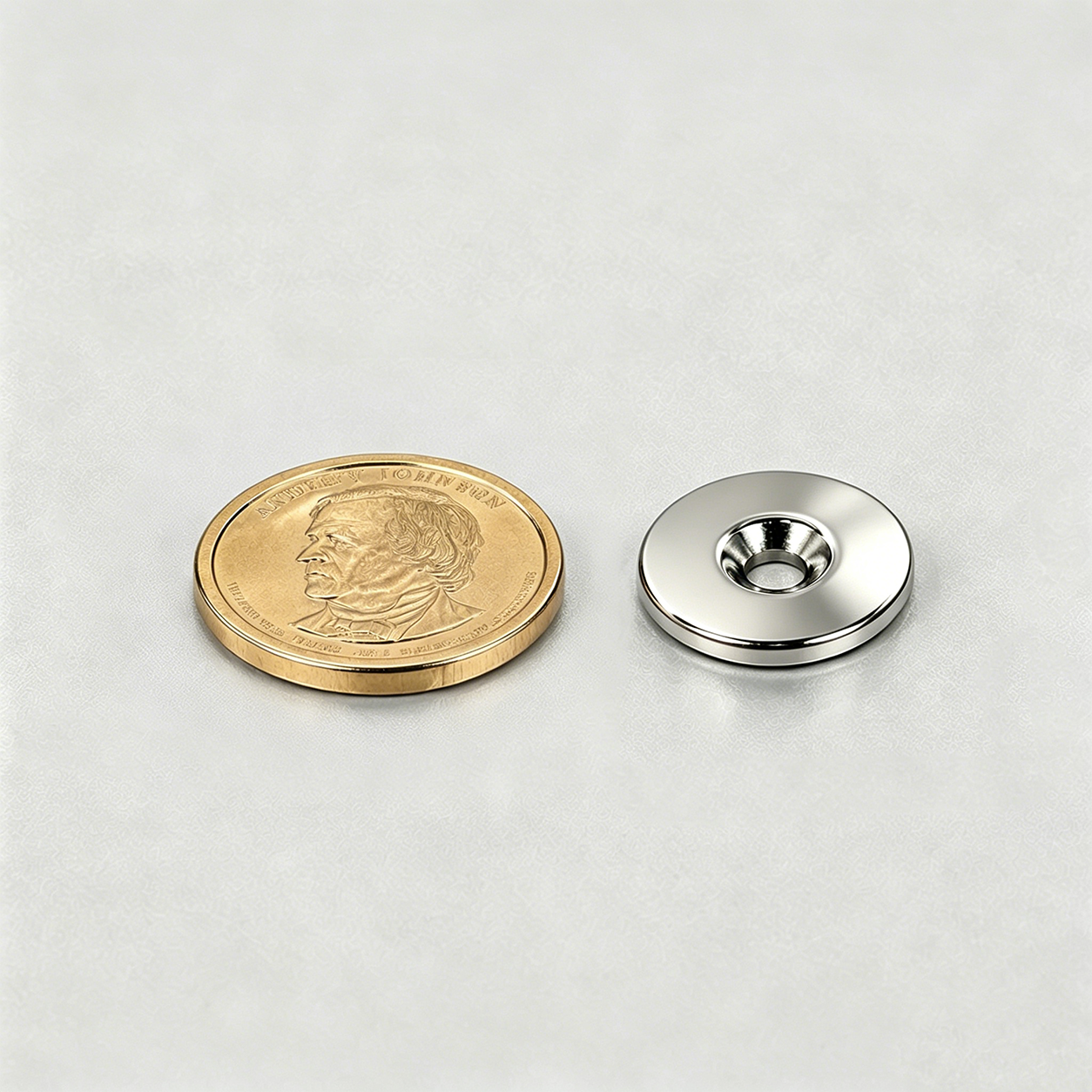

Countersunk Magnet 0.787″×0.118″-M4

Technical Data

Material:NdFeB
Diameter:0.787 inch (20.0 mm)
Thickness:0.118 inch (3.0 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)

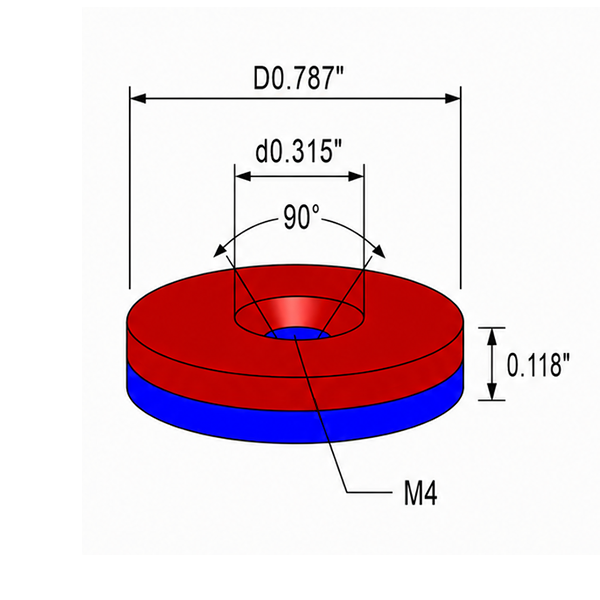

M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.187 oz (5.3 g)
Pull Force:approx. 9.04 lb (4.1 kgf)
Surface Gauss:approx. 950 Gs
Max Operating Temp:176 F / 80℃

$0.270

each

20000 in stock

Quantity Price
1 - 99 $0.270
100 - 200 $0.270
201 - 500 $0.220
501 - 1,000 $0.180
1,001 - 2,000 $0.150
2,001+ $0.150

Countersunk Magnet 0.787″×0.118″-M4

Technical Data

Material:NdFeB
Diameter:0.787 Inch
Thickness:0.118 Inch
Tolerance:+/- 0.04 Inch
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 5.3 g
Power:approx 4.1 Kg
Surface Gauss:approx 950 Gs
Max Operating Temp:176 F / 80℃

$0.270

each

20000 in stock

Quantity Price
1 - 99 $0.270
100 - 200 $0.270
201 - 500 $0.220
501 - 1,000 $0.180
1,001 - 2,000 $0.150
2,001+ $0.150
