Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

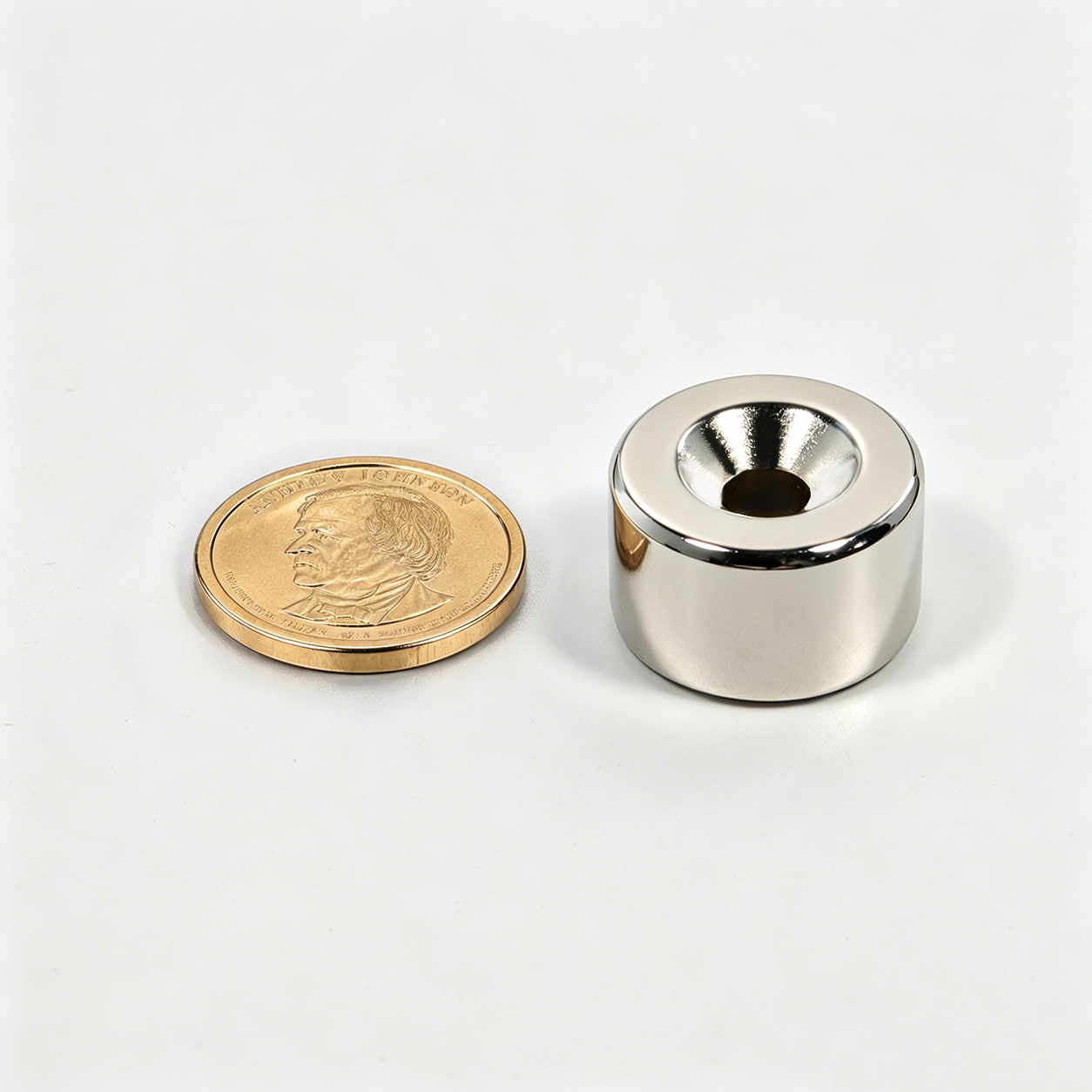

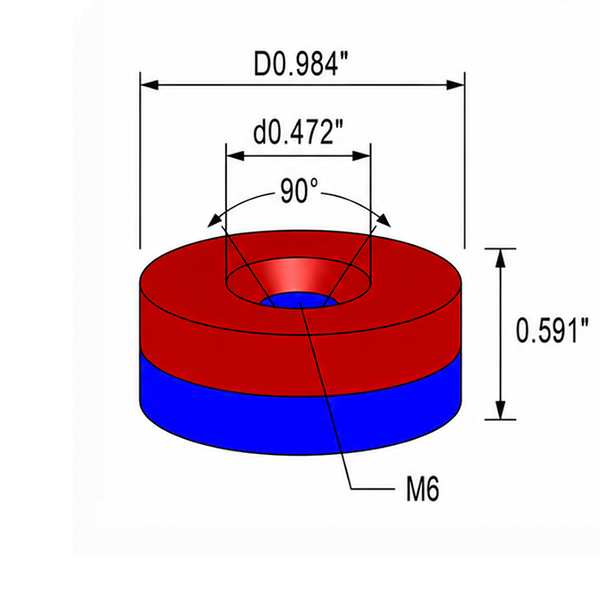

Countersunk Magnet 0.984″×0.591″-M6

Technical Data

Material:NdFeB
Diameter:0.984 inch (25.0 mm)
Thickness:0.591 inch (15.0 mm)
Tolerance:+/- 0.06 inch (+/- 1.5 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 1.59 oz (45 g)
Pull Force:approx. 17.64 lb (8 kgf)
Surface Gauss:approx. 3600 Gs
Max Operating Temp:176 F / 80℃

$0.420

each

20000 in stock

Quantity Price
1 - 99 $0.420
100 - 200 $0.420
201 - 500 $0.260
501 - 1,000 $0.110
1,001 - 2,000 $0.080
2,001+ $0.080

Countersunk Magnet 0.984″×0.591″-M6

Technical Data

Material:NdFeB
Diameter:0.984 Inch
Thickness:0.591 Inch
Tolerance:+/- 0.06 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 45 g
Power:approx 8 Kg
Surface Gauss:approx 3600 Gs
Max Operating Temp:176 F / 80℃

$0.420

each

20000 in stock

Quantity Price
1 - 99 $0.420
100 - 200 $0.420
201 - 500 $0.260
501 - 1,000 $0.110
1,001 - 2,000 $0.080
2,001+ $0.080
