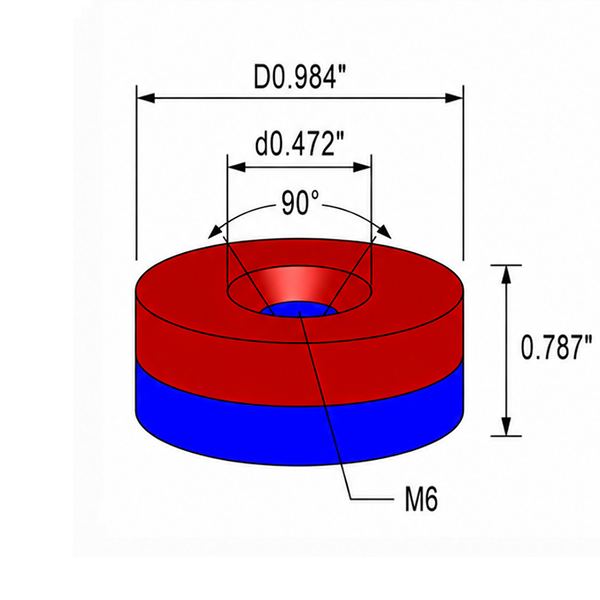

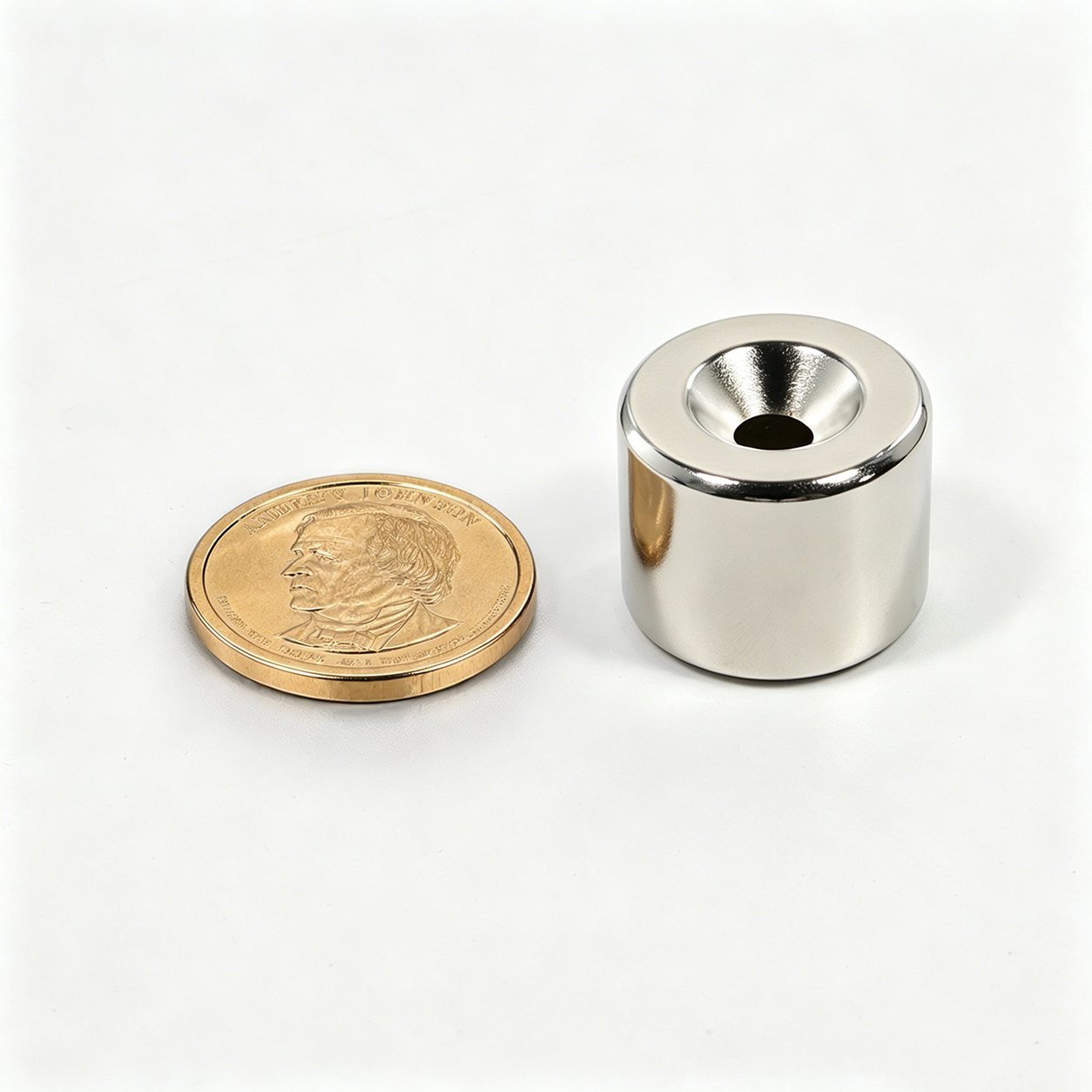

Countersunk Magnet 0.984″×0.787″-M6

Technical Data

Material:NdFeB
Diameter:0.984 inch (25.0 mm)
Thickness:0.787 inch (20.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 2.12 oz (60 g)
Pull Force:approx. 18.74 lb (8.5 kgf)
Surface Gauss:approx. 3600 Gs
Max Operating Temp:176 F / 80℃

$2.500

each

20000 in stock

Quantity Price
1 - 99 $2.500
100 - 200 $2.500
201 - 500 $2.000
501 - 1,000 $1.500
1,001 - 2,000 $1.300
2,001+ $1.300

Countersunk Magnet 0.984″×0.787″-M6

Technical Data

Material:NdFeB
Diameter:0.984 Inch
Thickness:0.787 Inch
Tolerance:+/- 0.08 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 60 g
Power:approx 8.5 Kg
Surface Gauss:approx 3600 Gs
Max Operating Temp:176 F / 80℃

$2.500

each

20000 in stock

Quantity Price
1 - 99 $2.500
100 - 200 $2.500
201 - 500 $2.000
501 - 1,000 $1.500
1,001 - 2,000 $1.300
2,001+ $1.300
