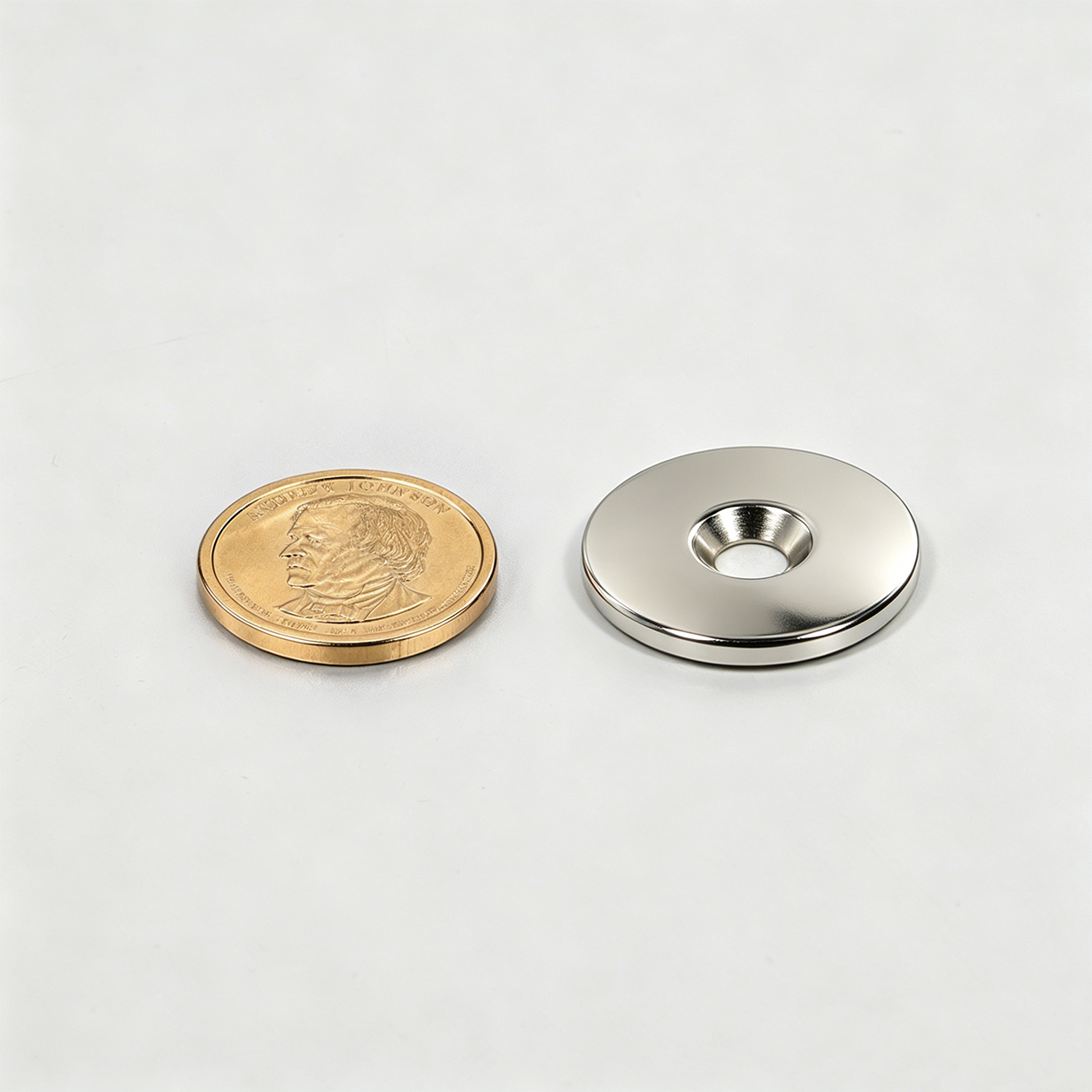

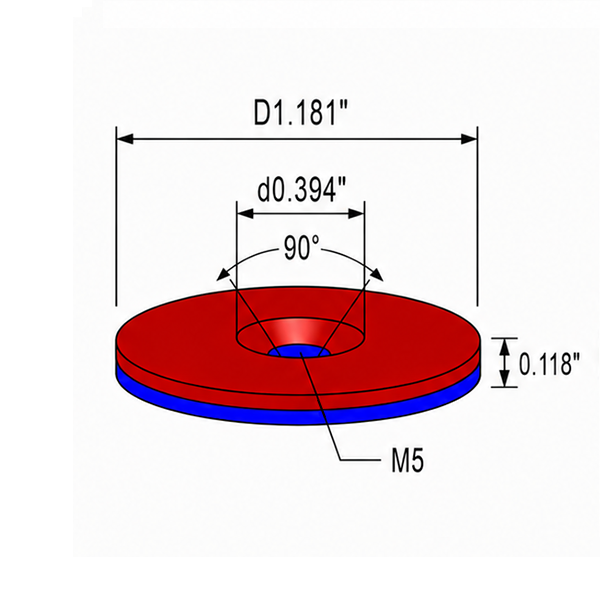

Countersunk Magnet 1.181″×0.118″-M5

Technical Data

Material:NdFeB
Diameter:1.181 inch (30.0 mm)
Thickness:0.118 inch (3.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.444 oz (12.6 g)
Pull Force:approx. 16.09 lb (7.3 kgf)
Surface Gauss:approx. 600 Gs
Max Operating Temp:176 F / 80℃

$0.700

each

20000 in stock

Quantity Price
1 - 99 $0.700
100 - 200 $0.700
201 - 500 $0.550
501 - 1,000 $0.450
1,001 - 2,000 $0.350
2,001+ $0.350

Countersunk Magnet 1.181″×0.118″-M5

Technical Data

Material:NdFeB
Diameter:1.181 Inch
Thickness:0.118 Inch
Tolerance:+/- 0.08 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 12.6 g
Power:approx 7.3 Kg
Surface Gauss:approx 600 Gs
Max Operating Temp:176 F / 80℃

$0.700

each

20000 in stock

Quantity Price
1 - 99 $0.700
100 - 200 $0.700
201 - 500 $0.550
501 - 1,000 $0.450
1,001 - 2,000 $0.350
2,001+ $0.350
