Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

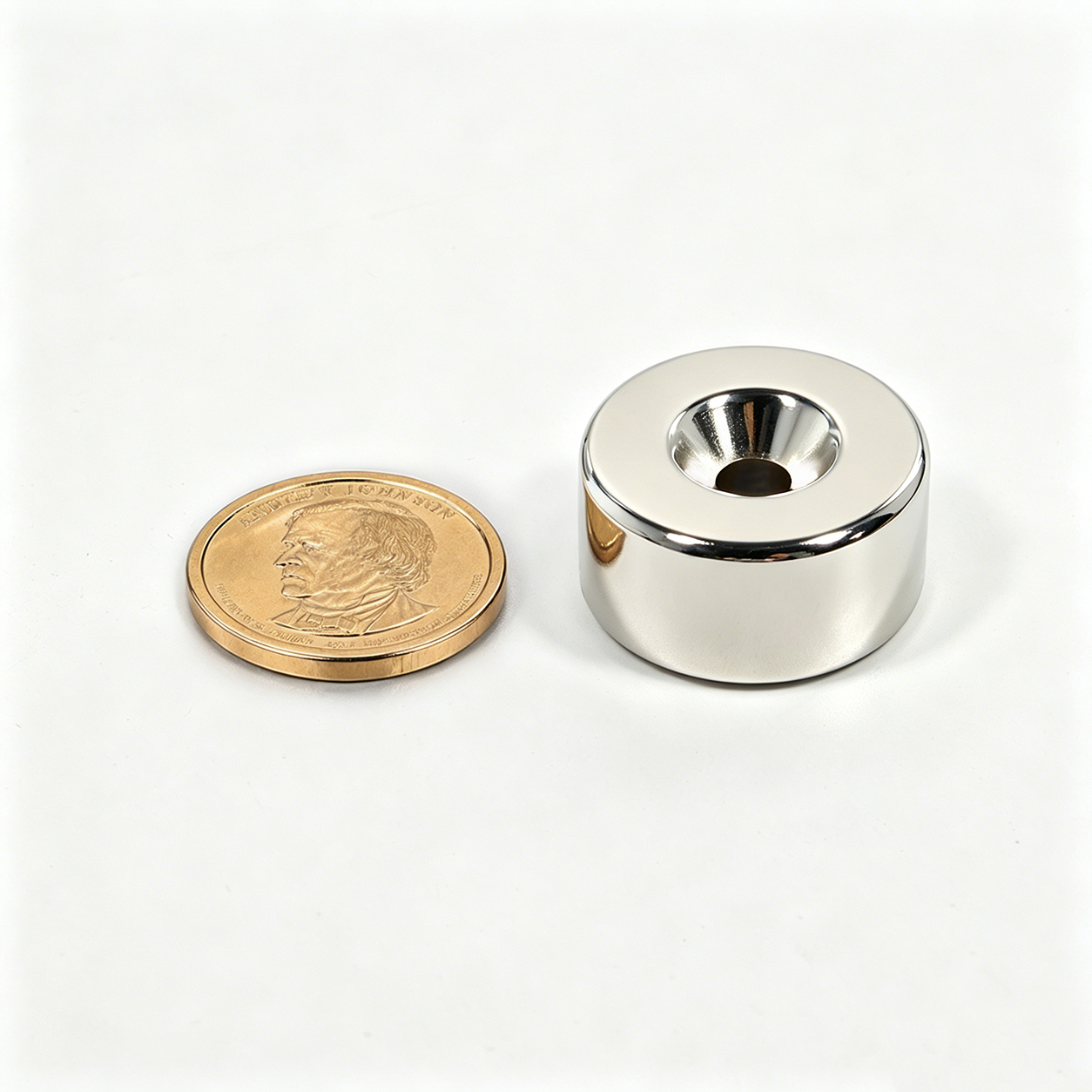

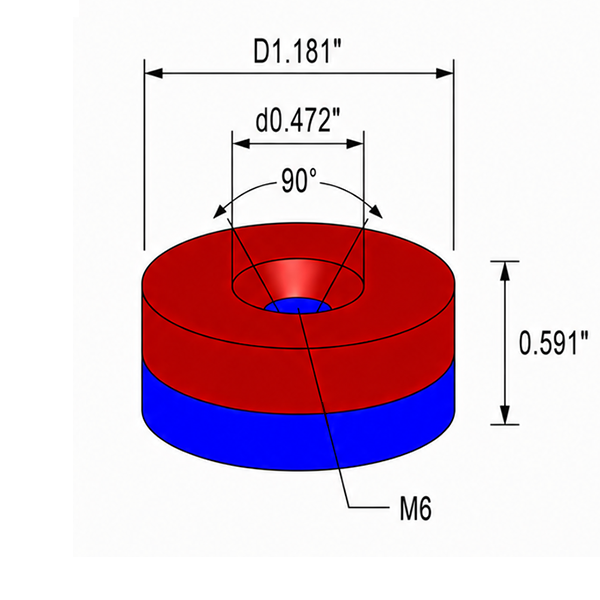

Countersunk Magnet 1.181″×0.591″-M6

Technical Data

Material:NdFeB
Diameter:1.181 inch (30.0 mm)
Thickness:0.591 inch (15.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 2.43 oz (69 g)
Pull Force:approx. 23.15 lb (10.5 kgf)
Surface Gauss:approx. 3200 Gs
Max Operating Temp:176 F / 80℃

$3.000

each

20000 in stock

Quantity Price
1 - 99 $3.000
100 - 200 $3.000
201 - 500 $2.500
501 - 1,000 $2.000
1,001 - 2,000 $1.500
2,001+ $1.500

Countersunk Magnet 1.181″×0.591″-M6

Technical Data

Material:NdFeB
Diameter:1.181 Inch
Thickness:0.591 Inch
Tolerance:+/- 0.08 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 69 g
Power:approx 10.5 Kg
Surface Gauss:approx 3200 Gs
Max Operating Temp:176 F / 80℃

$3.000

each

20000 in stock

Quantity Price
1 - 99 $3.000
100 - 200 $3.000
201 - 500 $2.500
501 - 1,000 $2.000
1,001 - 2,000 $1.500
2,001+ $1.500
