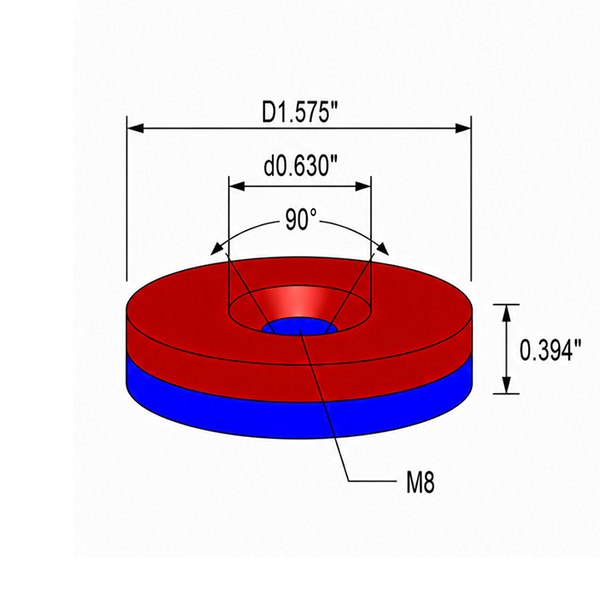

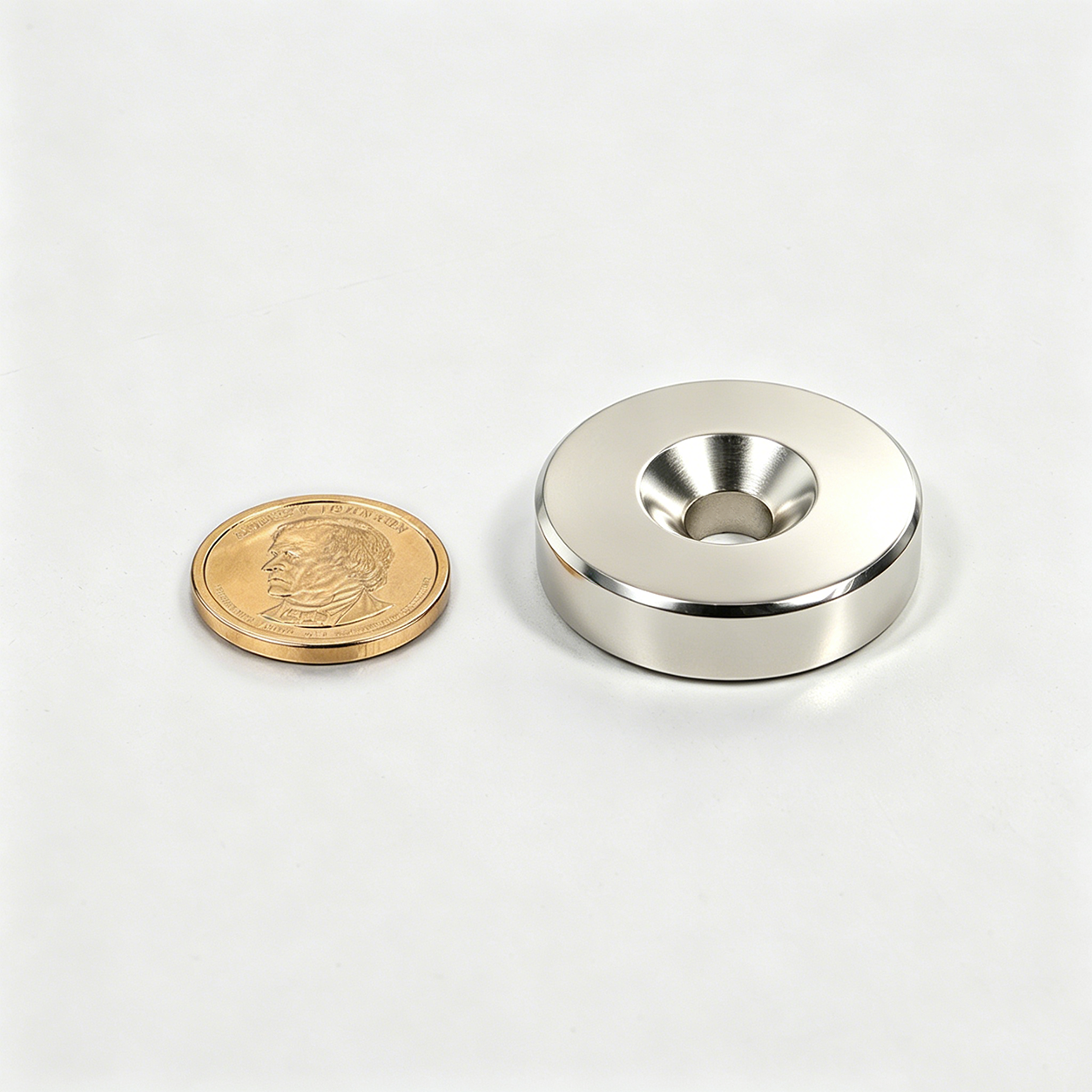

Countersunk Magnet 1.575″×0.394″-M8

Technical Data

Material:NdFeB
Diameter:1.575 inch (40.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M8(d0.335/0.63 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 2.79 oz (79 g)
Pull Force:approx. 33.84 lb (15.35 kgf)
Surface Gauss:approx. 2400 Gs
Max Operating Temp:176 F / 80℃

$5.100

each

20000 in stock

Quantity Price
1 - 99 $5.100
100 - 200 $5.100
201 - 500 $4.100
501 - 1,000 $3.100
1,001 - 2,000 $2.100
2,001+ $2.100

Countersunk Magnet 1.575″×0.394″-M8

Technical Data

Material:NdFeB
Diameter:1.575 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.08 Inch
M:M8(d0.335/0.63 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 79 g
Power:approx 15.35 Kg
Surface Gauss:approx 2400 Gs
Max Operating Temp:176 F / 80℃

$5.100

each

20000 in stock

Quantity Price
1 - 99 $5.100
100 - 200 $5.100
201 - 500 $4.100
501 - 1,000 $3.100
1,001 - 2,000 $2.100
2,001+ $2.100
