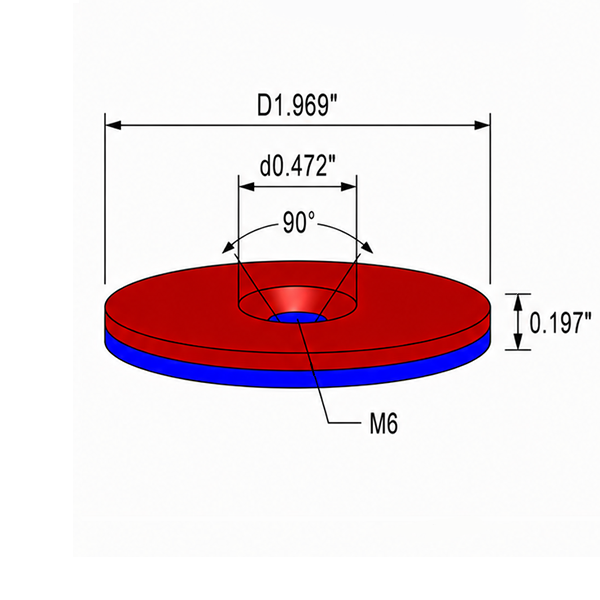

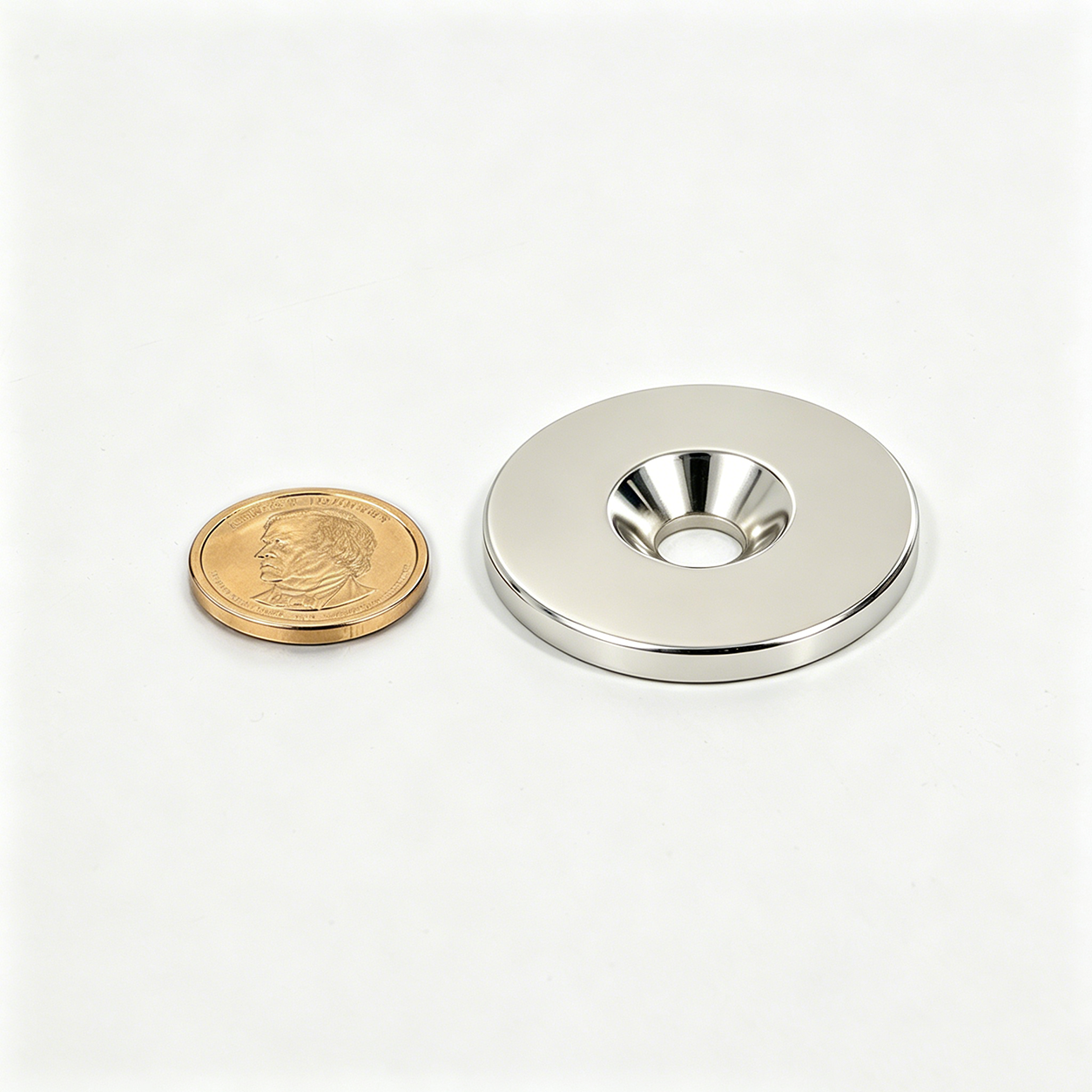

Countersunk Magnet 1.969″×0.197″-M6

Technical Data

Material:NdFeB
Diameter:1.969 inch (50.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 2.15 oz (61 g)
Pull Force:approx. 19.84 lb (9 kgf)
Surface Gauss:approx. 800 Gs
Max Operating Temp:176 F / 80℃

$2.600

each

20000 in stock

Quantity Price
1 - 99 $2.600
100 - 200 $2.600
201 - 500 $2.100
501 - 1,000 $1.600
1,001 - 2,000 $1.400
2,001+ $1.400

Countersunk Magnet 1.969″×0.197″-M6

Technical Data

Material:NdFeB
Diameter:1.969 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.08 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 61 g
Power:approx 9 Kg
Surface Gauss:approx 800 Gs
Max Operating Temp:176 F / 80℃

$2.600

each

20000 in stock

Quantity Price
1 - 99 $2.600
100 - 200 $2.600
201 - 500 $2.100
501 - 1,000 $1.600
1,001 - 2,000 $1.400
2,001+ $1.400
