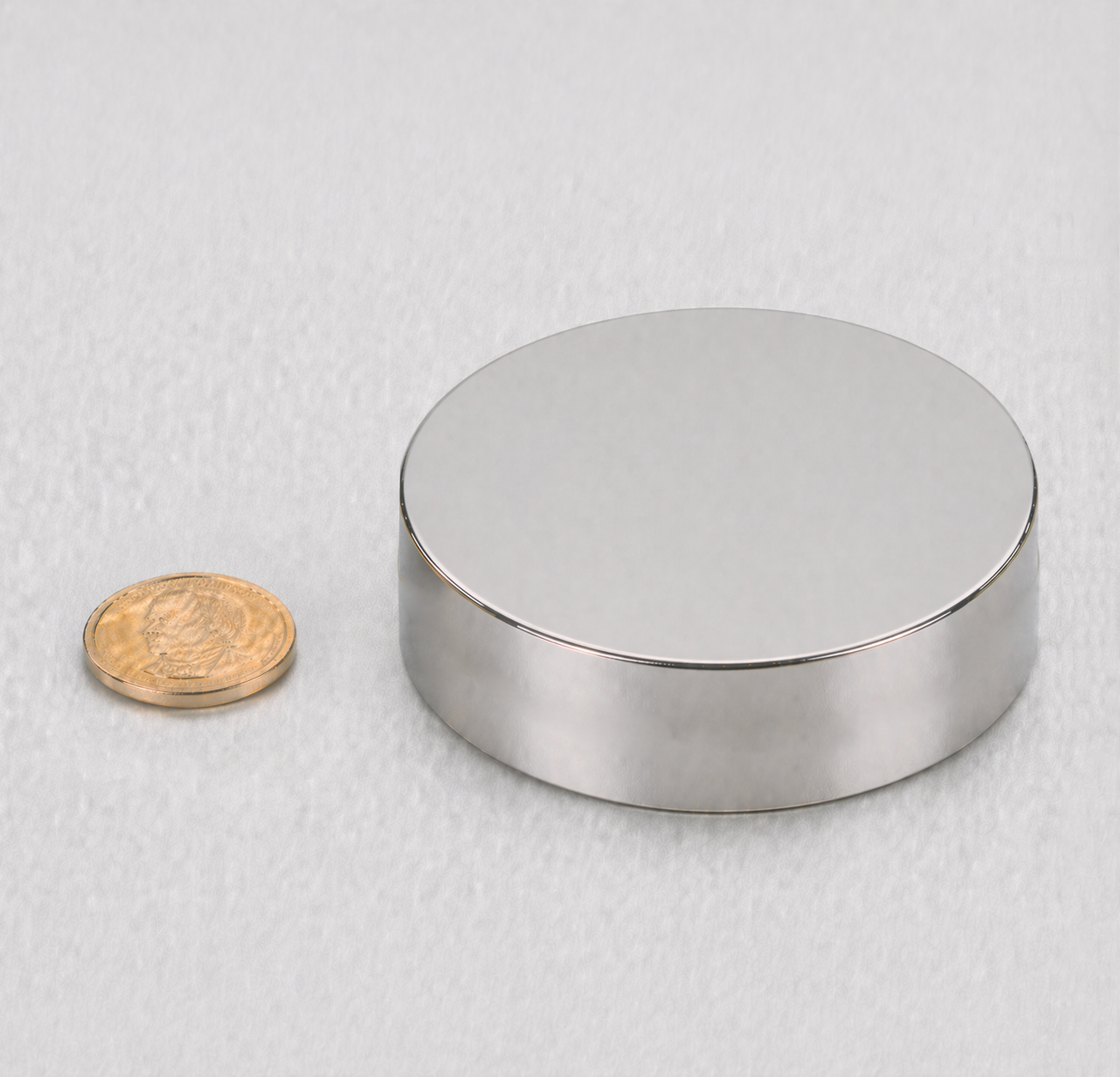

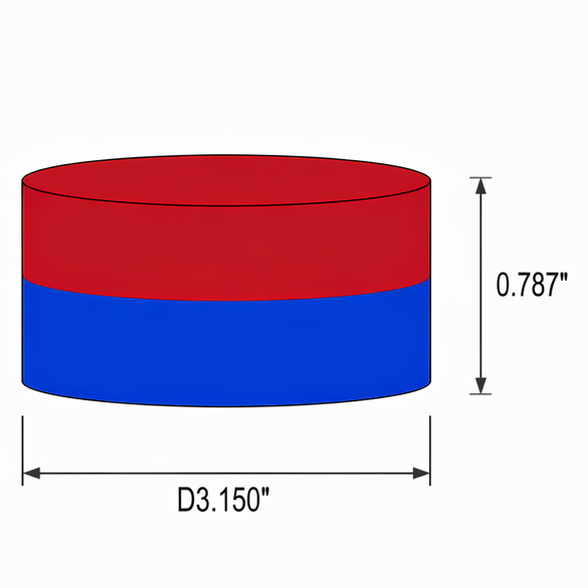

NdFeB Disc Magnet 3.150”×0.787“

Technical Data

Material:NdFeB
Diameter:3.15 inch (80.0 mm)
Thickness:0.787 inch (20.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 23 oz (652 g)
Pull Force:approx. 105.82 lb (48 kgf)
Surface Gauss:approx. 1100 Gs
Max Operating Temp:176 F / 80℃

$49.000

each

20000 in stock

Quantity Price
1 - 49 $49.000
50 - 100 $49.000
101 - 200 $46.000
201 - 500 $44.500
501 - 1,000 $38.000
1,001+ $38.000

NdFeB Disc Magnet 3.150”×0.787“

Technical Data

Material:NdFeB
Diameter:3.15 Inch
Thickness:0.787 Inch
Tolerance:+/- 0.08 Inch
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 652 g
Power:approx 48 Kg
Surface Gauss:approx 1100 Gs
Max Operating Temp:176 F / 80℃

$49.000

each

20000 in stock

Quantity Price
1 - 49 $49.000
50 - 100 $49.000
101 - 200 $46.000
201 - 500 $44.500
501 - 1,000 $38.000
1,001+ $38.000
