Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

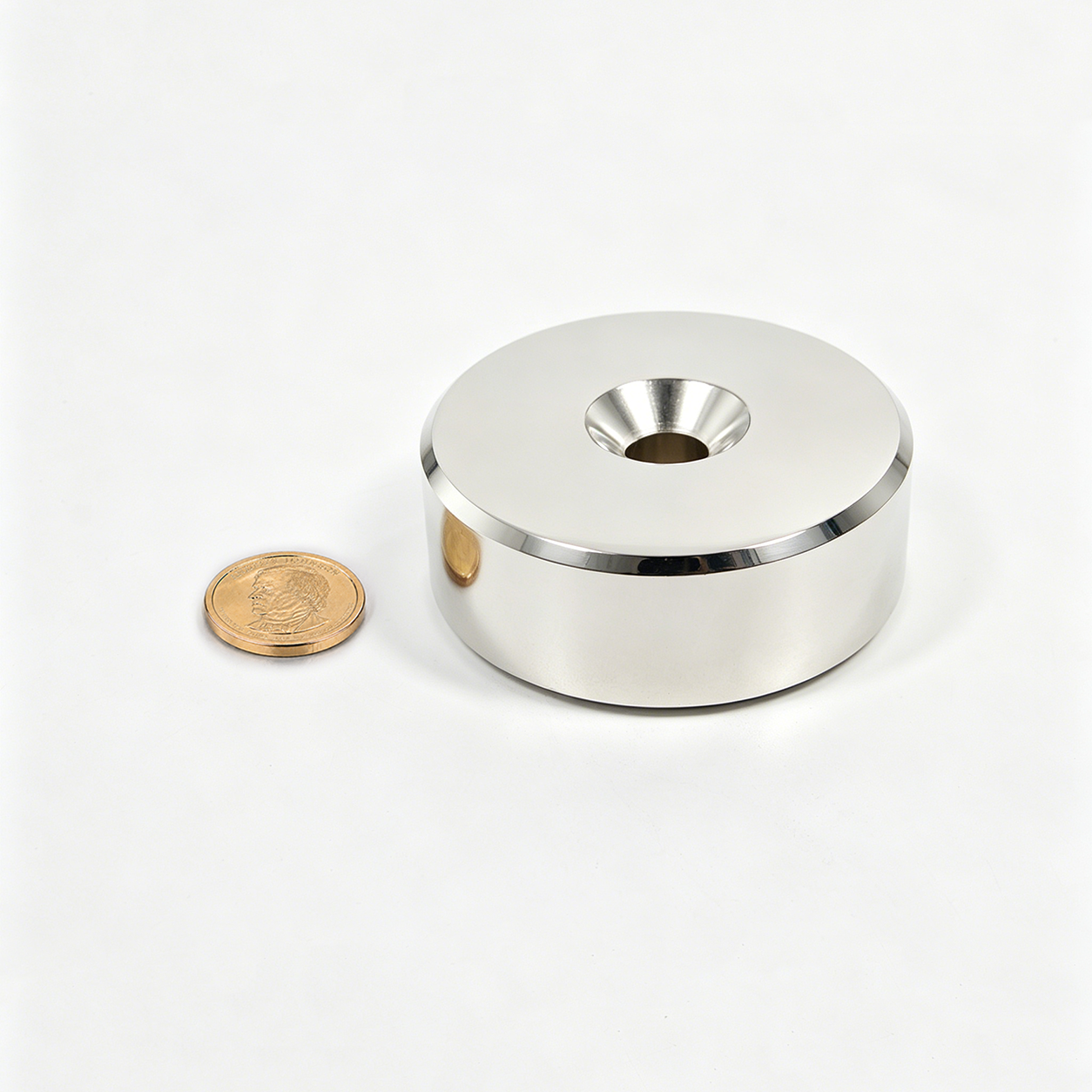

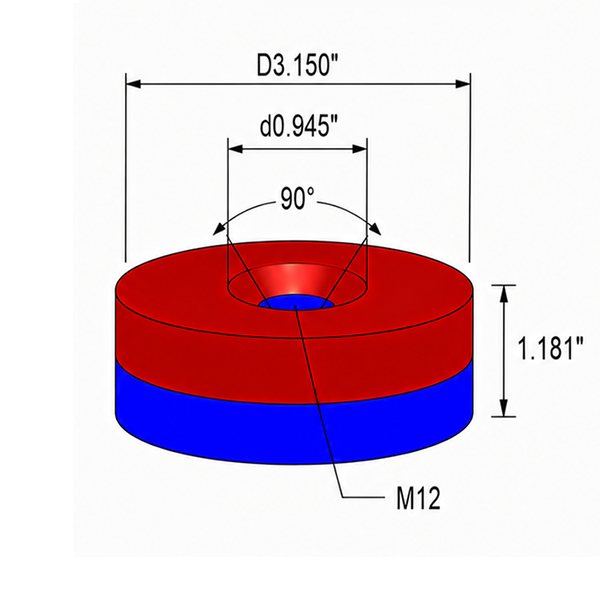

Countersunk Magnet 3.150″×1.181″-M12

Technical Data

Material:NdFeB
Diameter:3.15 inch (80.0 mm)
Thickness:1.181 inch (30.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M12(d0.492/0.945 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 34.92 oz (990 g)
Pull Force:approx. 50.71 lb (23 kgf)
Surface Gauss:approx. 2700 Gs
Max Operating Temp:176 F / 80℃

$60.000

each

20000 in stock

Quantity Price
1 - 99 $60.000
100 - 200 $60.000
201 - 500 $45.000
501 - 1,000 $30.000
1,001 - 2,000 $25.000
2,001+ $25.000

Countersunk Magnet 3.150″×1.181″-M12

Technical Data

Material:NdFeB
Diameter:3.15 Inch
Thickness:1.181 Inch
Tolerance:+/- 0.08 Inch
M:M12(d0.492/0.945 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 990 g
Power:approx 23 Kg
Surface Gauss:approx 2700 Gs
Max Operating Temp:176 F / 80℃

$60.000

each

20000 in stock

Quantity Price
1 - 99 $60.000
100 - 200 $60.000
201 - 500 $45.000
501 - 1,000 $30.000
1,001 - 2,000 $25.000
2,001+ $25.000
