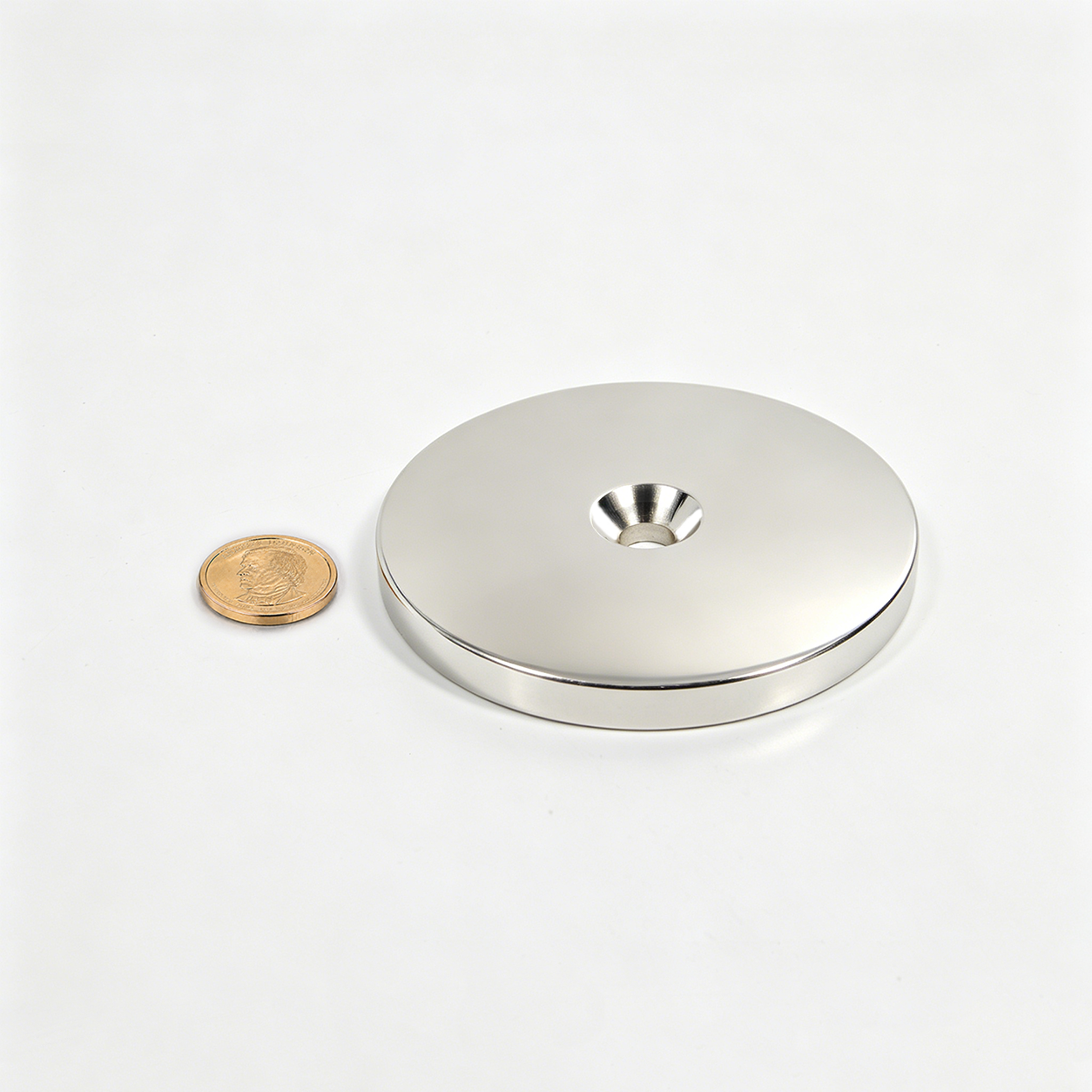

Countersunk Magnet 3.937″×0.394″-M10

Technical Data

Material:NdFeB

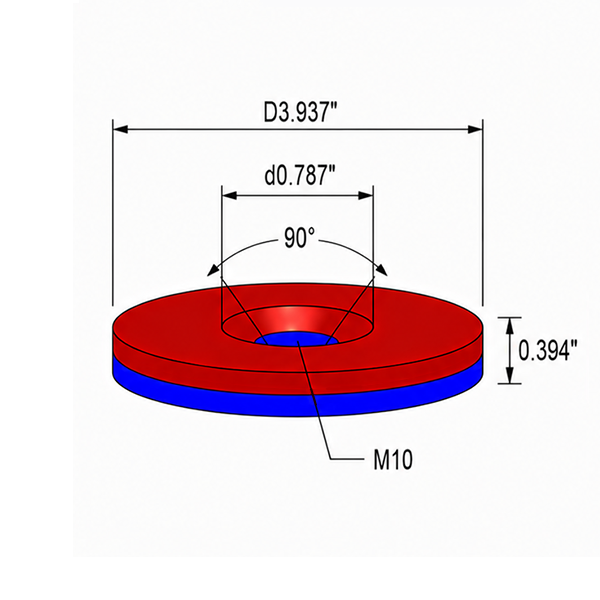

Diameter:3.937 inch (100.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.12 inch (+/- 3.0 mm)
M:M10(d0.413/0.787 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 18.85 oz (534.5 g)
Pull Force:approx. 33.07 lb (15 kgf)
Surface Gauss:approx. 1000 Gs
Max Operating Temp:176 F / 80℃

$35.000

each

20000 in stock

Quantity Price
1 - 99 $35.000
100 - 200 $35.000
201 - 500 $22.000
501 - 1,000 $17.000
1,001 - 2,000 $13.000
2,001+ $13.000

Countersunk Magnet 3.937″×0.394″-M10

Technical Data

Material:NdFeB
Diameter:3.937 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.12 Inch
M:M10(d0.413/0.787 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 534.5 g
Power:approx 15 Kg
Surface Gauss:approx 1000 Gs
Max Operating Temp:176 F / 80℃

$35.000

each

20000 in stock

Quantity Price
1 - 99 $35.000
100 - 200 $35.000
201 - 500 $22.000
501 - 1,000 $17.000
1,001 - 2,000 $13.000
2,001+ $13.000
