Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

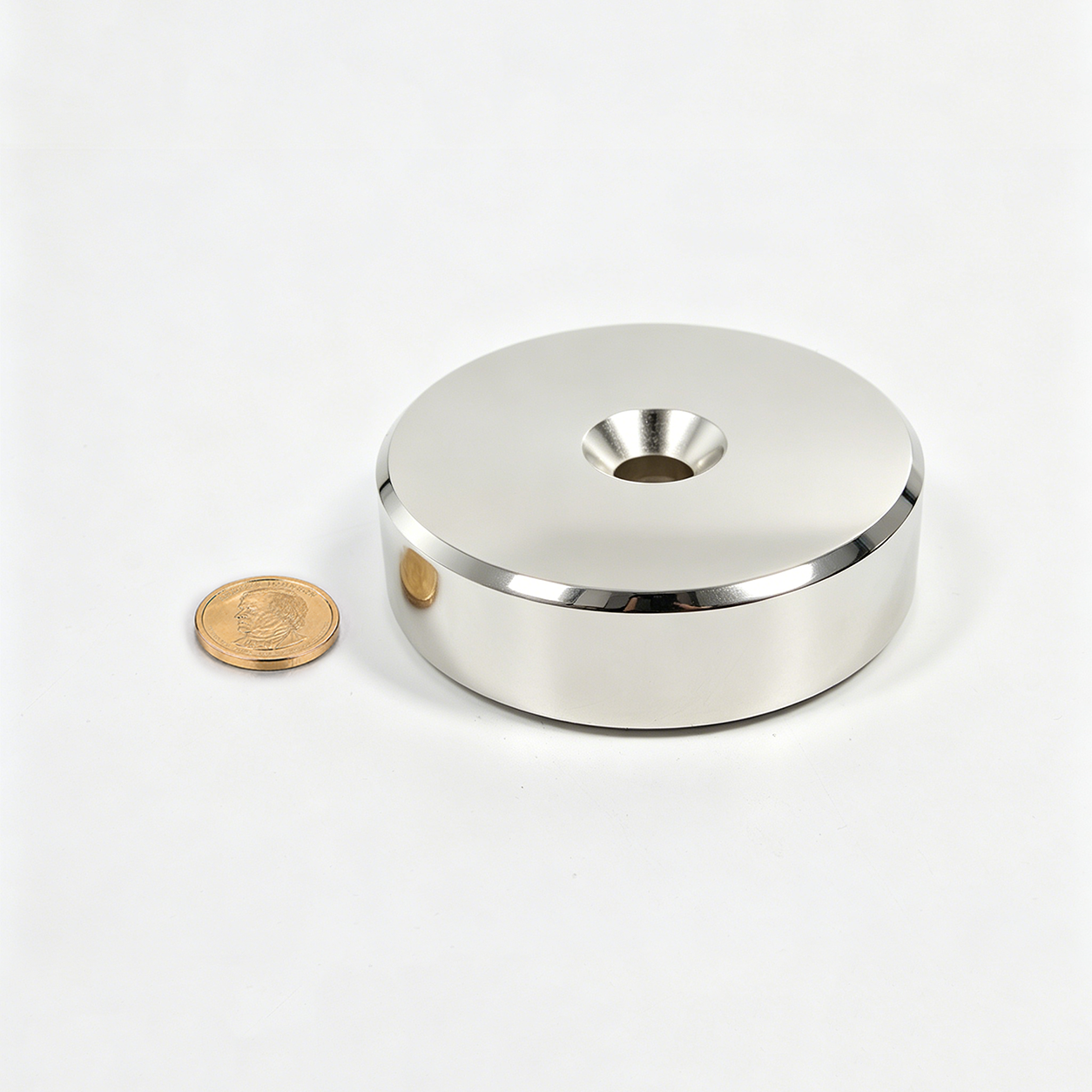

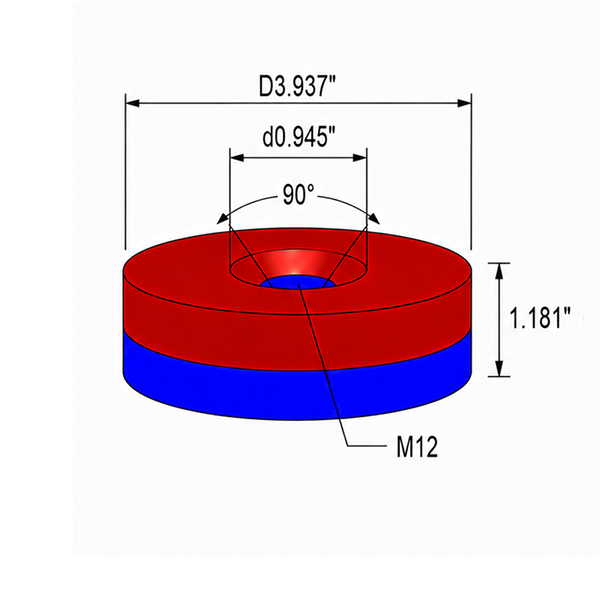

Countersunk Magnet 3.937”×1.181“-M12

Technical Data

Material:NdFeB
Diameter:3.937 inch (100.0 mm)
Thickness:1.181 inch (30.0 mm)
Tolerance:+/- 0.12 inch (+/- 3.0 mm)
M:M12(d0.492/0.945 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 56.44 oz (1600 g)
Pull Force:approx. 50.71 lb (23 kgf)
Surface Gauss:approx. 2000 Gs
Max Operating Temp:176 F / 80℃

$100.000

each

20000 in stock

Quantity Price
1 - 99 $100.000
100 - 200 $100.000
201 - 500 $70.000
501 - 1,000 $55.000
1,001 - 2,000 $45.000
2,001+ $45.000

Countersunk Magnet 3.937”×1.181“-M12

Technical Data

Material:NdFeB
Diameter:3.937 Inch
Thickness:1.181 Inch
Tolerance:+/- 0.12 Inch
M:M12(d0.492/0.945 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 1600 g
Power:approx 23 Kg
Surface Gauss:approx 2000 Gs
Max Operating Temp:176 F / 80℃

$100.000

each

20000 in stock

Quantity Price
1 - 99 $100.000
100 - 200 $100.000
201 - 500 $70.000
501 - 1,000 $55.000
1,001 - 2,000 $45.000
2,001+ $45.000
