Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

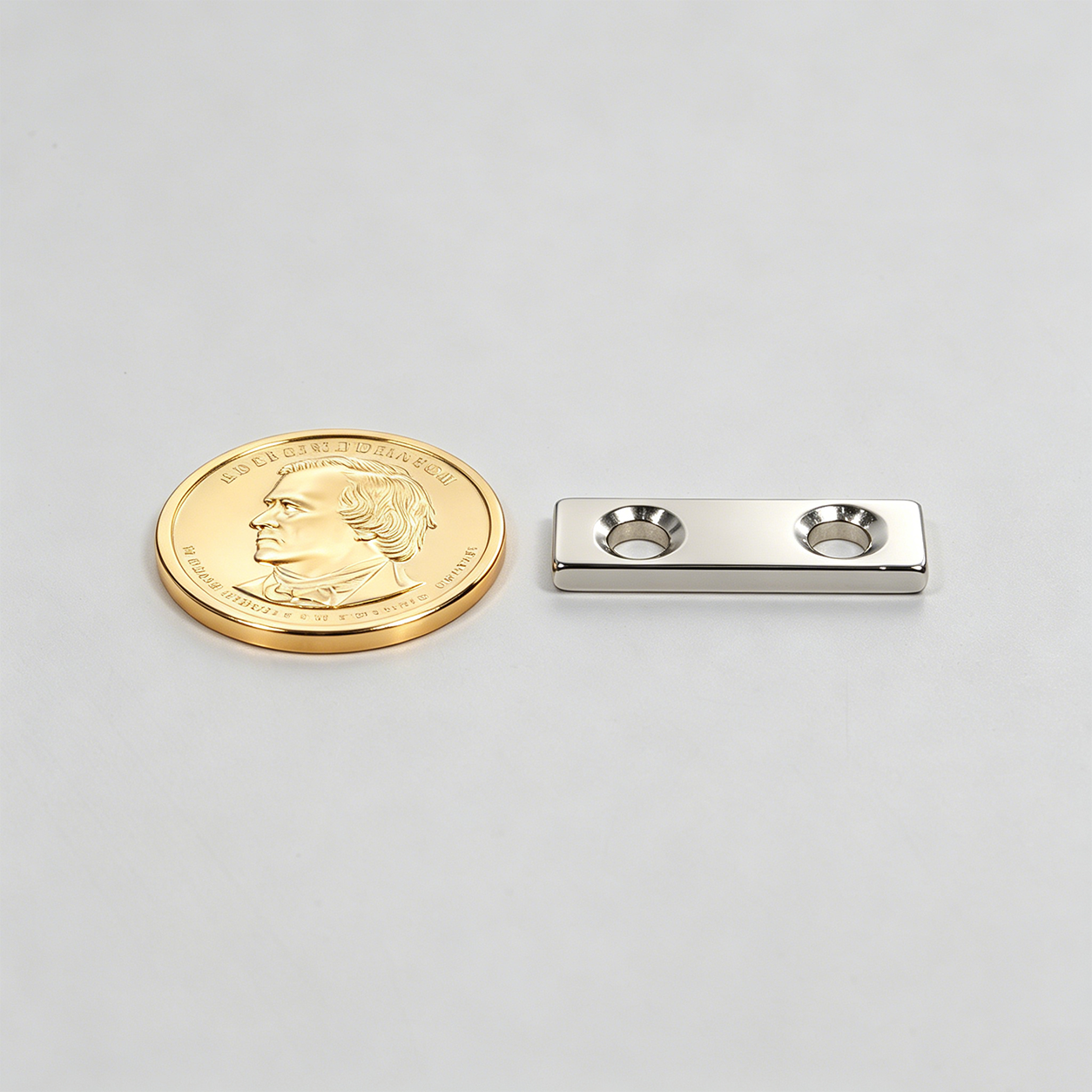

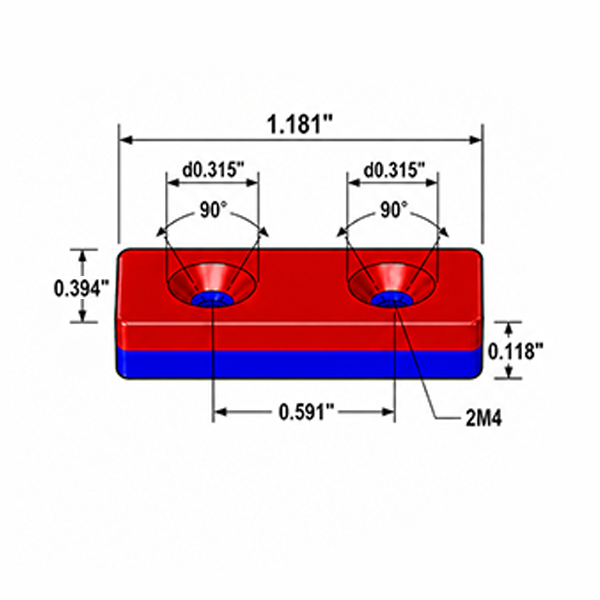

Countersunk Magnet 1.181″×0.394″×0.118″-2M4

Technical Data

Material:NdFeB
Length:1.181 inch (30.0 mm)
Width:0.394 inch (10.0 mm)
Thickness:0.118 inch (3.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.166 oz (4.7 g)
Pull Force:approx. 4.41 lb (2 kgf)
Surface Gauss:approx. 850 Gs
Max Operating Temp:176 F / 80℃

$0.345

each

20000 in stock

Quantity Price
1 - 49 $0.345
50 - 100 $0.345
101 - 200 $0.267
201 - 500 $0.201
501 - 1,000 $0.168
1,001+ $0.168

Countersunk Magnet 1.181″×0.394″×0.118″-2M4

Technical Data

Material:NdFeB
Length:1.181 Inch
Width:0.394 Inch
Thickness:0.118 Inch
Tolerance:+/- 0.08 Inch
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 4.7 g
Power:approx 2 Kg
Surface Gauss:approx 850 Gs
Max Operating Temp:176 F / 80℃

$0.345

each

20000 in stock

Quantity Price
1 - 49 $0.345
50 - 100 $0.345
101 - 200 $0.267
201 - 500 $0.201
501 - 1,000 $0.168
1,001+ $0.168
