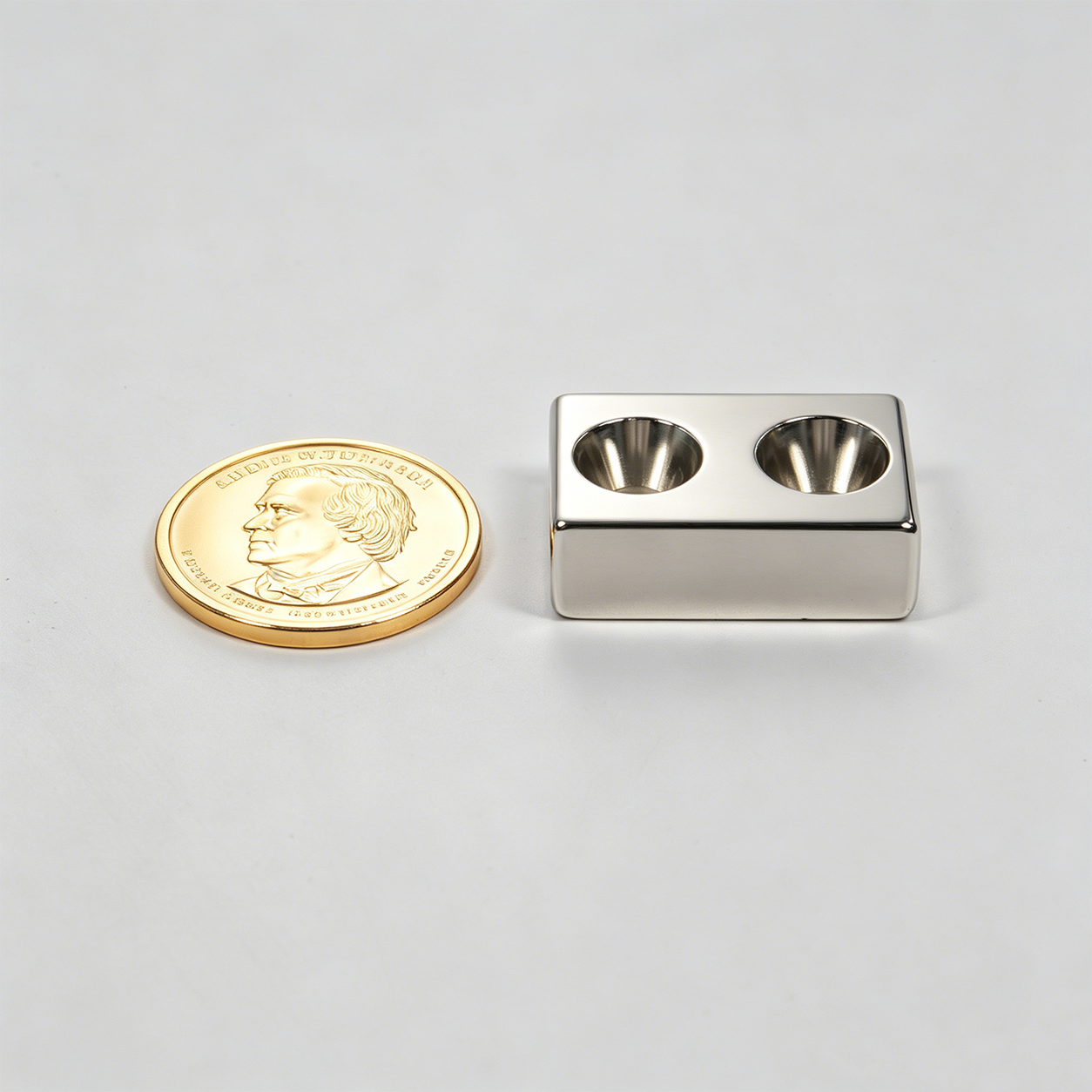

Countersunk Magnet 1.181″×0.787″×0.394″-2M5

Technical Data

Material:NdFeB
Length:1.181 inch (30.0 mm)
Width:0.787 inch (20.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)

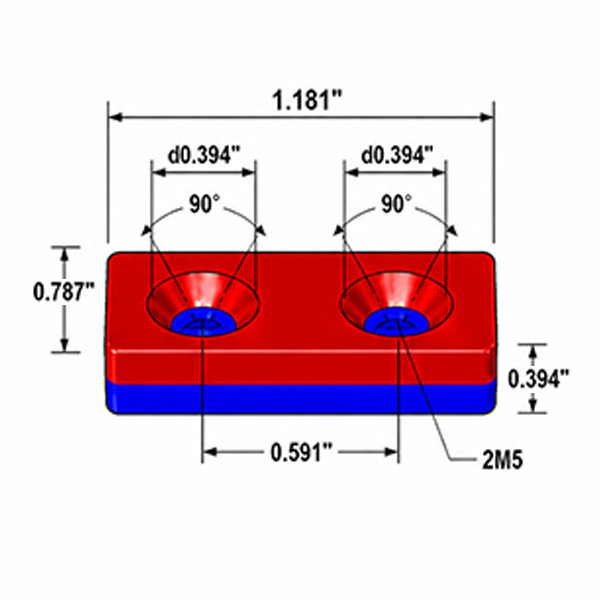

M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 1.15 oz (32.5 g)
Pull Force:approx. 15.98 lb (7.25 kgf)
Surface Gauss:approx. 2900 Gs
Max Operating Temp:176 F / 80℃

$2.000

each

20000 in stock

Quantity Price
1 - 49 $2.000
50 - 100 $2.000
101 - 200 $1.500
201 - 500 $1.200
501 - 1,000 $0.950
1,001+ $0.950

Countersunk Magnet 1.181″×0.787″×0.394″-2M5

Technical Data

Material:NdFeB
Length:1.181 Inch
Width:0.787 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.08 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 32.5 g
Power:approx 7.25 Kg
Surface Gauss:approx 2900 Gs
Max Operating Temp:176 F / 80℃

$2.000

each

20000 in stock

Quantity Price
1 - 49 $2.000
50 - 100 $2.000
101 - 200 $1.500
201 - 500 $1.200
501 - 1,000 $0.950
1,001+ $0.950
