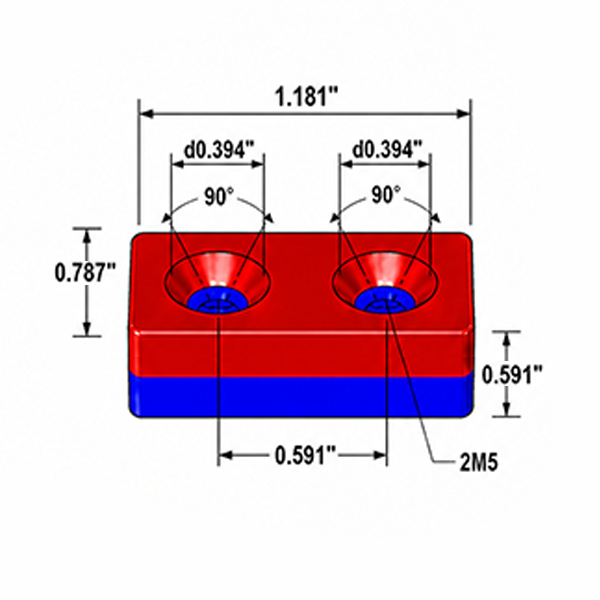

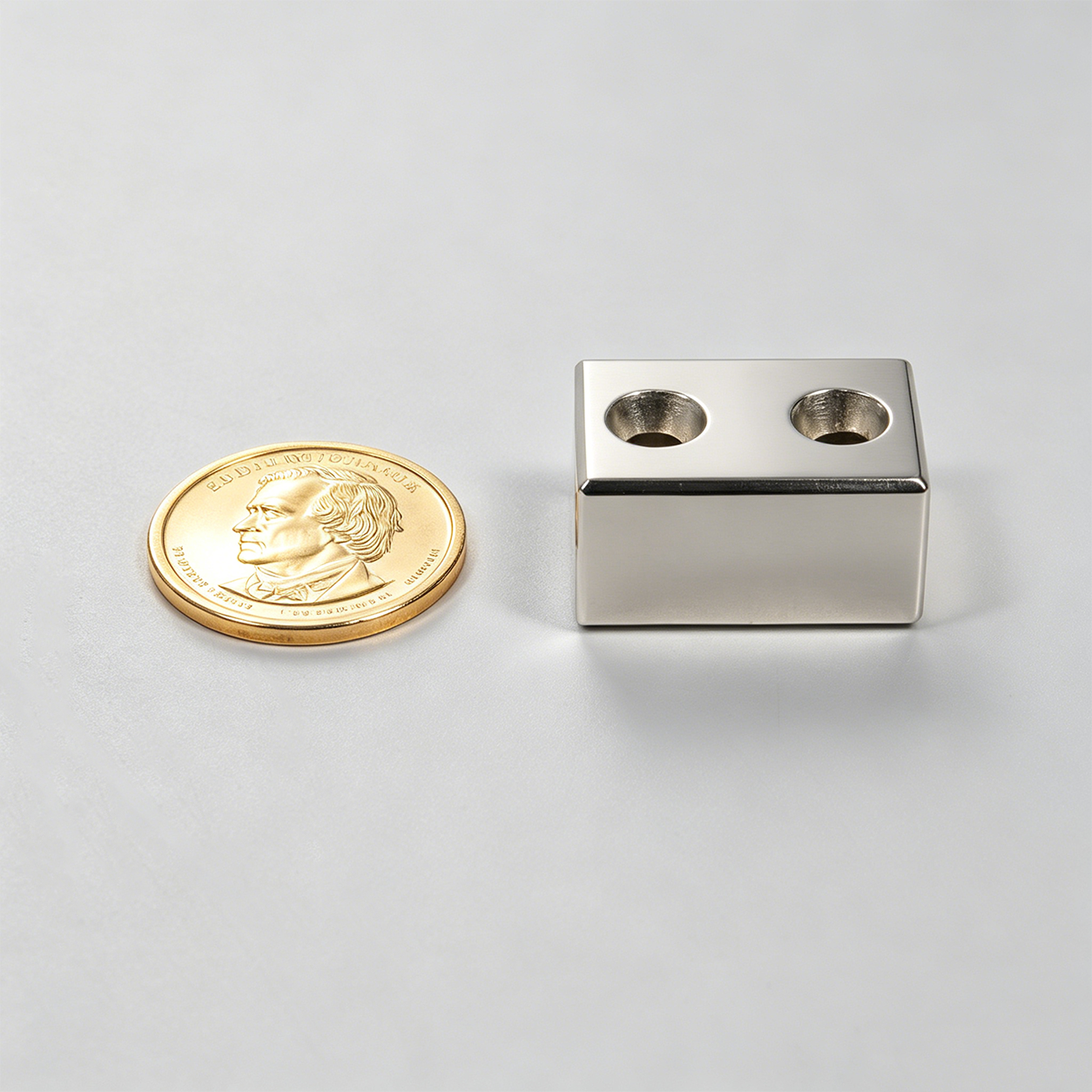

Countersunk Magnet 1.181″×0.787″×0.591″-2M5

Technical Data

Material:NdFeB
Length:1.181 inch (30.0 mm)
Width:0.787 inch (20.0 mm)
Thickness:0.591 inch (15.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 1.72 oz (48.8 g)
Pull Force:approx. 16.53 lb (7.5 kgf)
Surface Gauss:approx. 2800 Gs
Max Operating Temp:176 F / 80℃

$3.500

each

20000 in stock

Quantity Price
1 - 49 $3.500
50 - 100 $3.500
101 - 200 $2.500
201 - 500 $2.000
501 - 1,000 $1.600
1,001+ $1.600

Countersunk Magnet 1.181″×0.787″×0.591″-2M5

Technical Data

Material:NdFeB
Length:1.181 Inch
Width:0.787 Inch
Thickness:0.591 Inch
Tolerance:+/- 0.08 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 48.8 g
Power:approx 7.5 Kg
Surface Gauss:approx 2800 Gs
Max Operating Temp:176 F / 80℃

$3.500

each

20000 in stock

Quantity Price
1 - 49 $3.500
50 - 100 $3.500
101 - 200 $2.500
201 - 500 $2.000
501 - 1,000 $1.600
1,001+ $1.600
