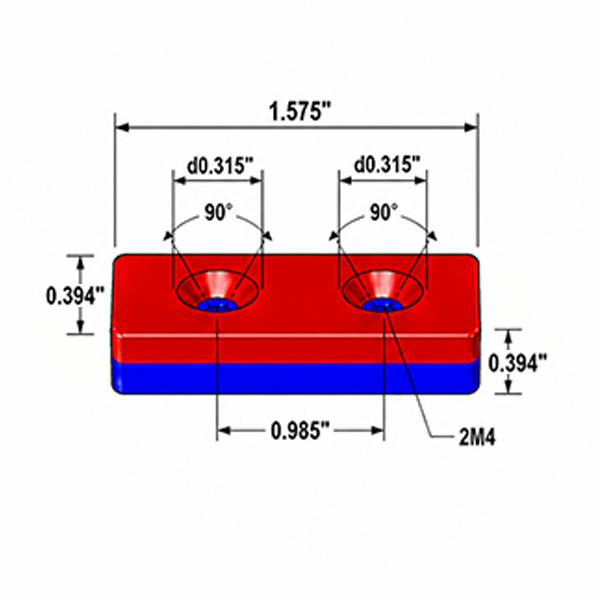

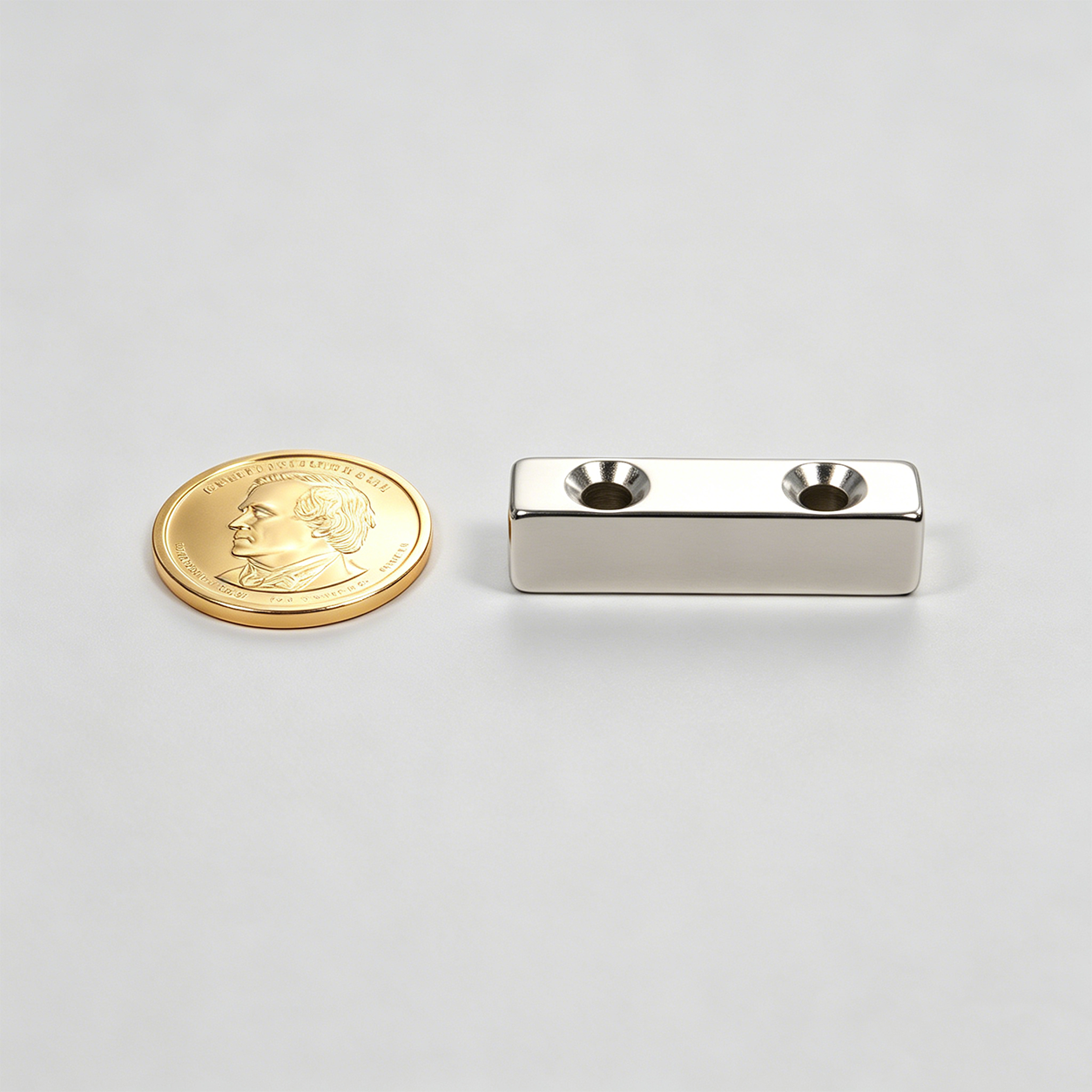

Countersunk Magnet 1.575″×0.394″×0.394″-2M4

Technical Data

Material:NdFeB
Length:1.575 inch (40.0 mm)
Width:0.394 inch (10.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.811 oz (23 g)
Pull Force:approx. 13.23 lb (6 kgf)
Surface Gauss:approx. 3000 Gs
Max Operating Temp:176 F / 80℃

$1.500

each

20000 in stock

Quantity Price
1 - 49 $1.500
50 - 100 $1.500
101 - 200 $0.960
201 - 500 $0.800
501 - 1,000 $0.700
1,001+ $0.700

Countersunk Magnet 1.575″×0.394″×0.394″-2M4

Technical Data

Material:NdFeB
Length:1.575 Inch
Width:0.394 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.08 Inch
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 23 g
Power:approx 6 Kg
Surface Gauss:approx 3000 Gs
Max Operating Temp:176 F / 80℃

$1.500

each

20000 in stock

Quantity Price
1 - 49 $1.500
50 - 100 $1.500
101 - 200 $0.960
201 - 500 $0.800
501 - 1,000 $0.700
1,001+ $0.700
