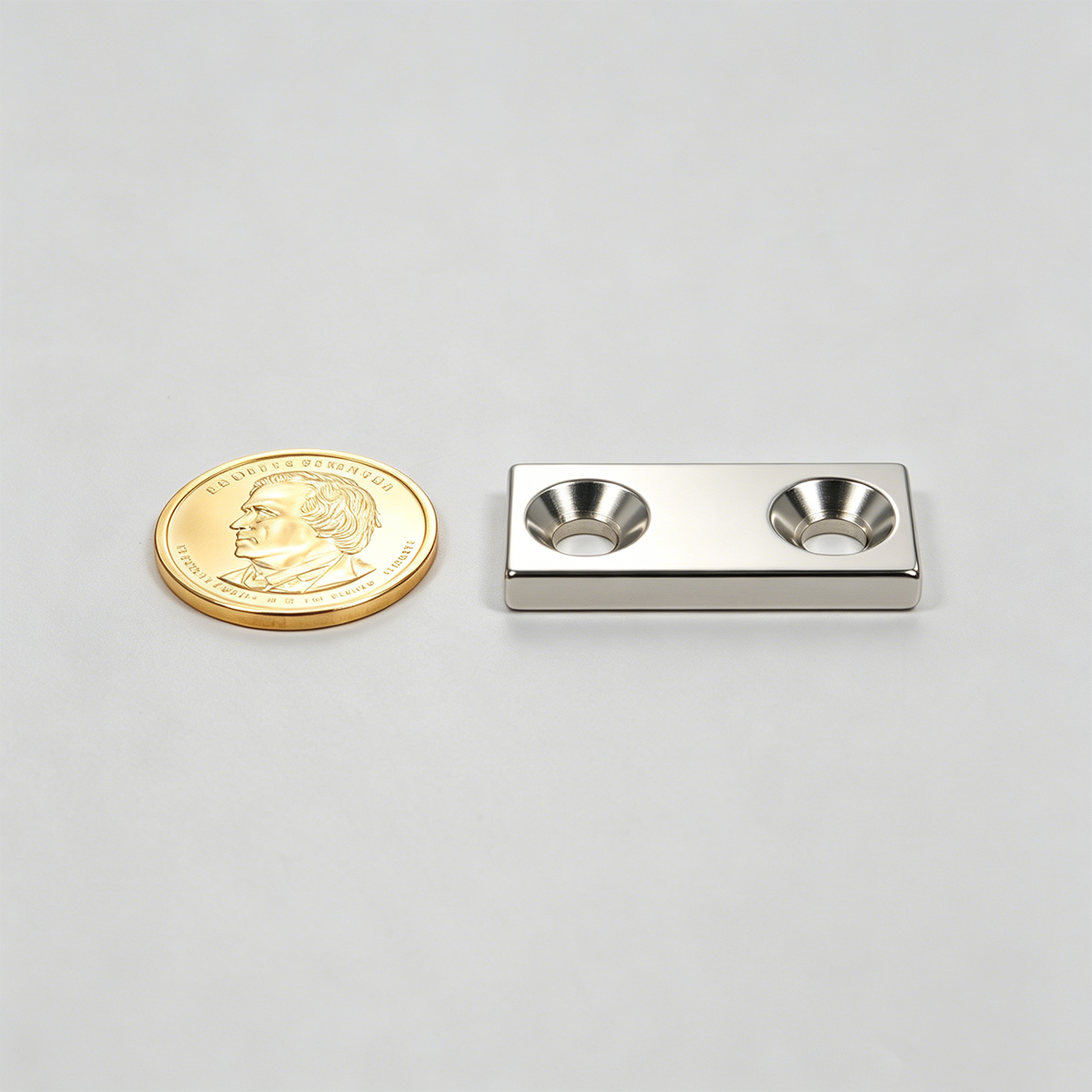

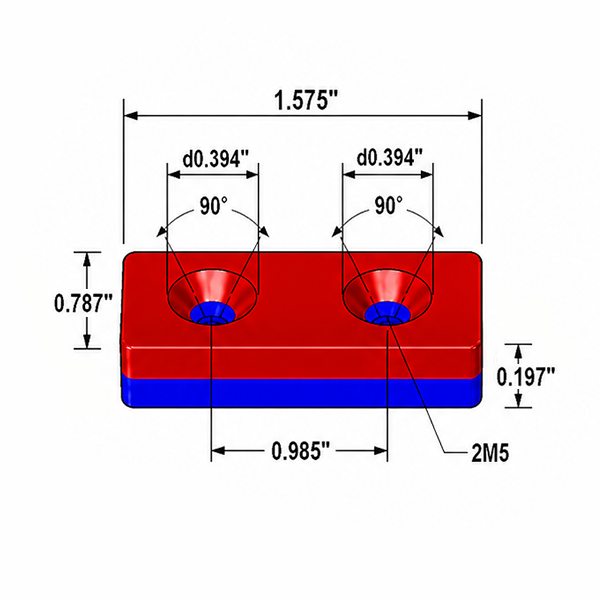

Countersunk Magnet 1.575″×0.787″×0.197″-2M5

Technical Data

Material:NdFeB
Length:1.575 inch (40.0 mm)
Width:0.787 inch (20.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.794 oz (22.5 g)
Pull Force:approx. 14.77 lb (6.7 kgf)
Surface Gauss:approx. 800 Gs
Max Operating Temp:176 F / 80℃

$1.450

each

20000 in stock

Quantity Price
1 - 49 $1.450
50 - 100 $1.450
101 - 200 $1.000
201 - 500 $0.780
501 - 1,000 $0.670
1,001+ $0.670

Countersunk Magnet 1.575″×0.787″×0.197″-2M5

Technical Data

Material:NdFeB
Length:1.575 Inch
Width:0.787 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.08 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 22.5 g
Power:approx 6.7 Kg
Surface Gauss:approx 800 Gs
Max Operating Temp:176 F / 80℃

$1.450

each

20000 in stock

Quantity Price
1 - 49 $1.450
50 - 100 $1.450
101 - 200 $1.000
201 - 500 $0.780
501 - 1,000 $0.670
1,001+ $0.670
