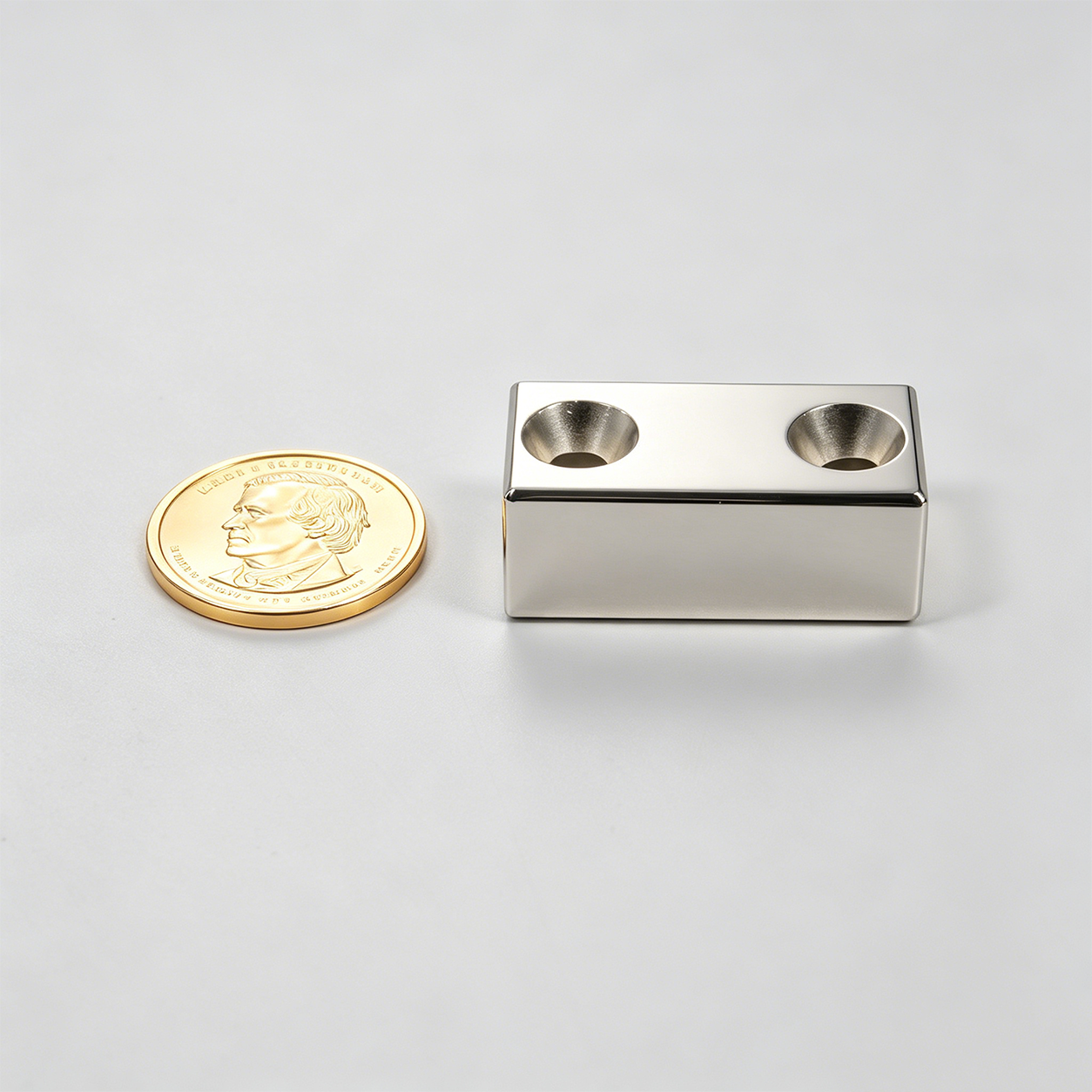

Countersunk Magnet 1.575″×0.787″×0.591″-2M5

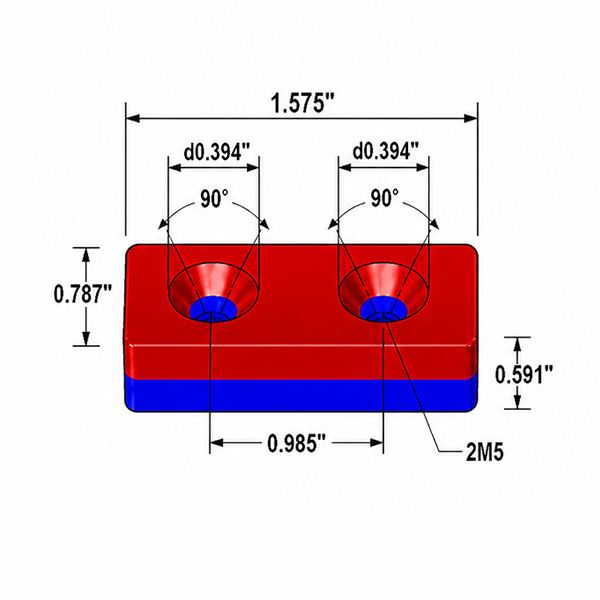

Technical Data

Material:NdFeB
Length:1.575 inch (40.0 mm)
Width:0.787 inch (20.0 mm)
Thickness:0.591 inch (15.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 2.54 oz (72 g)
Pull Force:approx. 19.84 lb (9 kgf)
Surface Gauss:approx. 2600 Gs
Max Operating Temp:176 F / 80℃

$4.000

each

20000 in stock

Quantity Price
1 - 49 $4.000
50 - 100 $4.000
101 - 200 $3.000
201 - 500 $2.200
501 - 1,000 $1.800
1,001+ $1.800

Countersunk Magnet 1.575″×0.787″×0.591″-2M5

Technical Data

Material:NdFeB
Length:1.575 Inch
Width:0.787 Inch
Thickness:0.591 Inch
Tolerance:+/- 0.08 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 72 g
Power:approx 9 Kg
Surface Gauss:approx 2600 Gs
Max Operating Temp:176 F / 80℃

$4.000

each

20000 in stock

Quantity Price
1 - 49 $4.000
50 - 100 $4.000
101 - 200 $3.000
201 - 500 $2.200
501 - 1,000 $1.800
1,001+ $1.800
