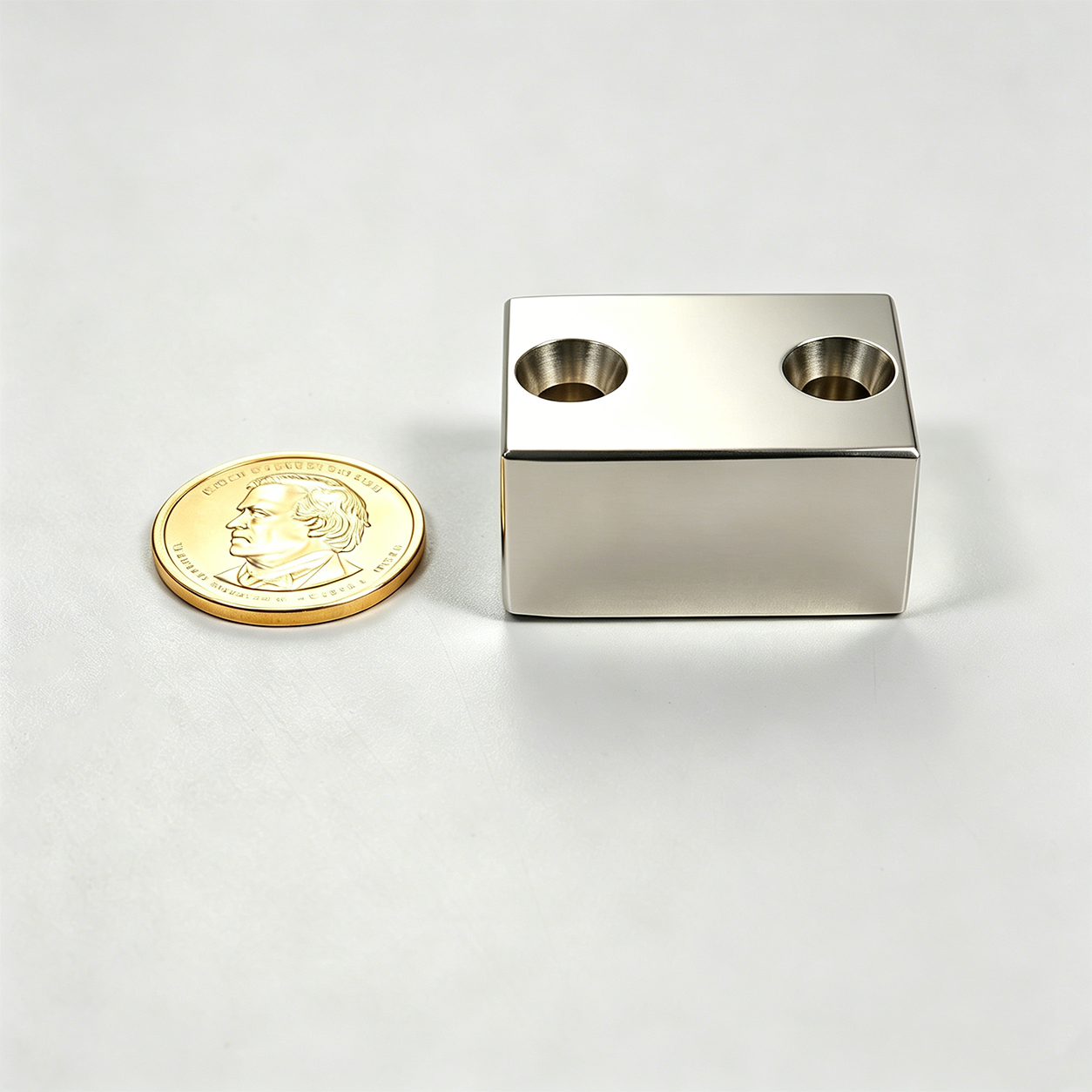

Countersunk Magnet 1.575″×1.181″×0.787″-2M6

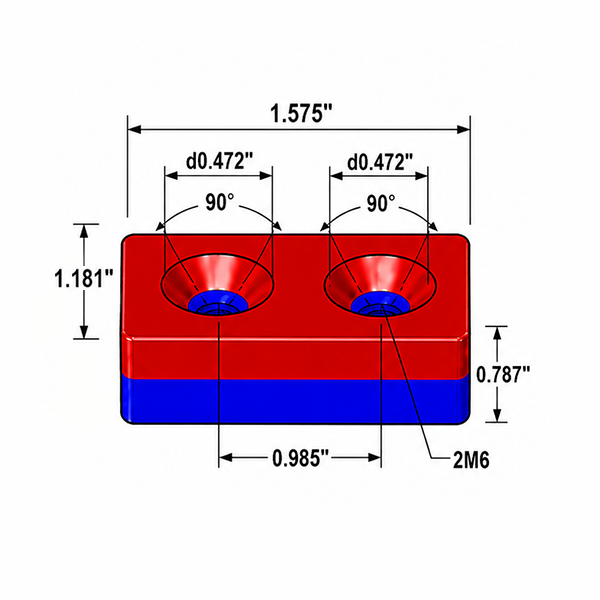

Technical Data

Material:NdFeB
Length:1.575 inch (40.0 mm)
Width:1.181 inch (30.0 mm)
Thickness:0.787 inch (20.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 4.94 oz (140 g)
Pull Force:approx. 22.05 lb (10 kgf)
Surface Gauss:approx. 2750 Gs
Max Operating Temp:176 F / 80℃

$7.000

each

20000 in stock

Quantity Price
1 - 49 $7.000
50 - 100 $7.000
101 - 200 $5.000
201 - 500 $4.000
501 - 1,000 $3.000
1,001+ $3.000

Countersunk Magnet 1.575″×1.181″×0.787″-2M6

Technical Data

Material:NdFeB
Length:1.575 Inch
Width:1.181 Inch
Thickness:0.787 Inch
Tolerance:+/- 0.08 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 140 g
Power:approx 10 Kg
Surface Gauss:approx 2750 Gs
Max Operating Temp:176 F / 80℃

$7.000

each

20000 in stock

Quantity Price
1 - 49 $7.000
50 - 100 $7.000
101 - 200 $5.000
201 - 500 $4.000
501 - 1,000 $3.000
1,001+ $3.000
