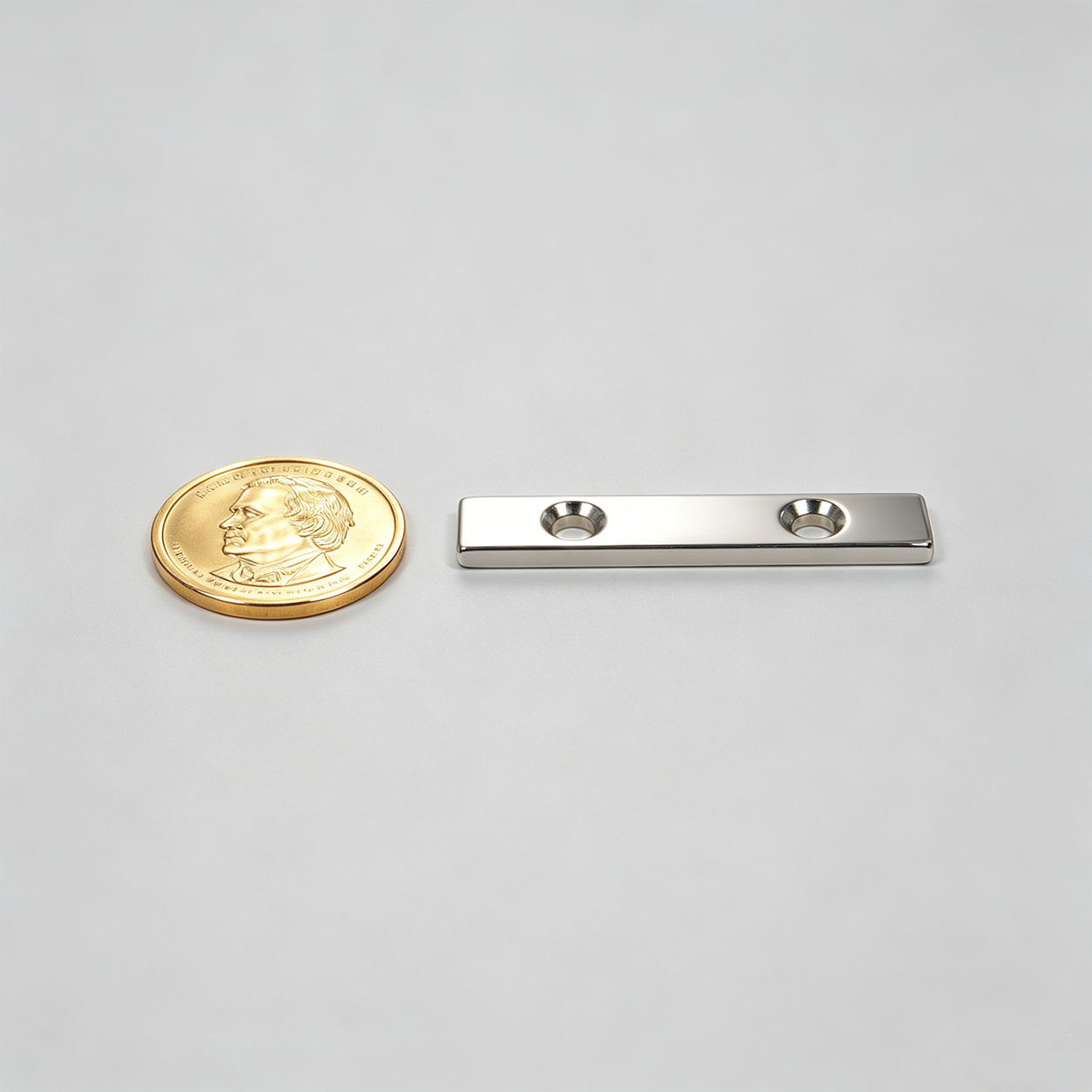

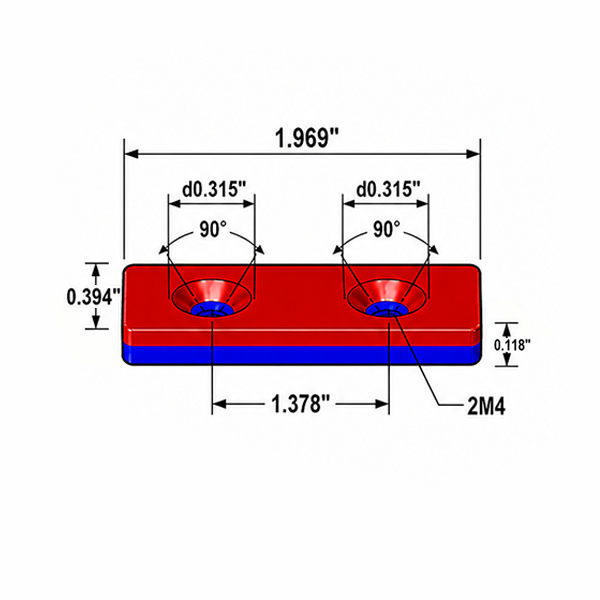

Countersunk Magnet 1.969″×0.394″×0.118″-2M4

Technical Data

Material:NdFeB
Length:1.969 inch (50.0 mm)
Width:0.394 inch (10.0 mm)
Thickness:0.118 inch (3.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.303 oz (8.6 g)
Pull Force:approx. 8.05 lb (3.65 kgf)
Surface Gauss:approx. 750 Gs
Max Operating Temp:176 F / 80℃

$0.545

each

20000 in stock

Quantity Price
1 - 49 $0.545
50 - 100 $0.545
101 - 200 $0.423
201 - 500 $0.345
501 - 1,000 $0.278
1,001+ $0.278

Countersunk Magnet 1.969″×0.394″×0.118″-2M4

Technical Data

Material:NdFeB
Length:1.969 Inch
Width:0.394 Inch
Thickness:0.118 Inch
Tolerance:+/- 0.08 Inch
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 8.6 g
Power:approx 3.65 Kg
Surface Gauss:approx 750 Gs
Max Operating Temp:176 F / 80℃

$0.545

each

20000 in stock

Quantity Price
1 - 49 $0.545
50 - 100 $0.545
101 - 200 $0.423
201 - 500 $0.345
501 - 1,000 $0.278
1,001+ $0.278
