Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

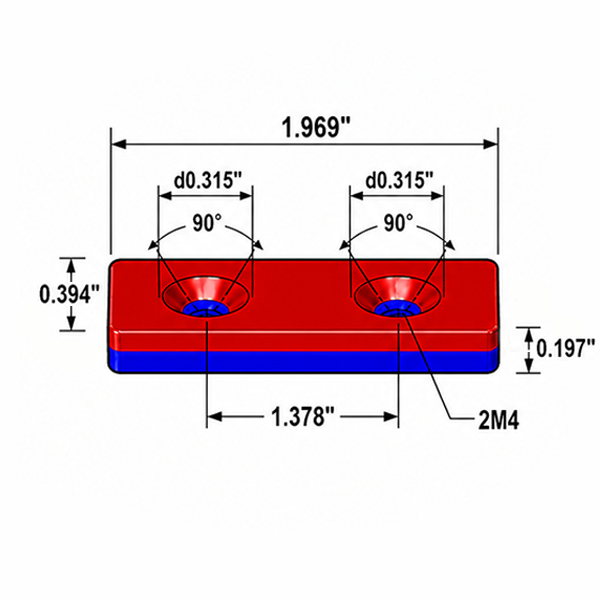

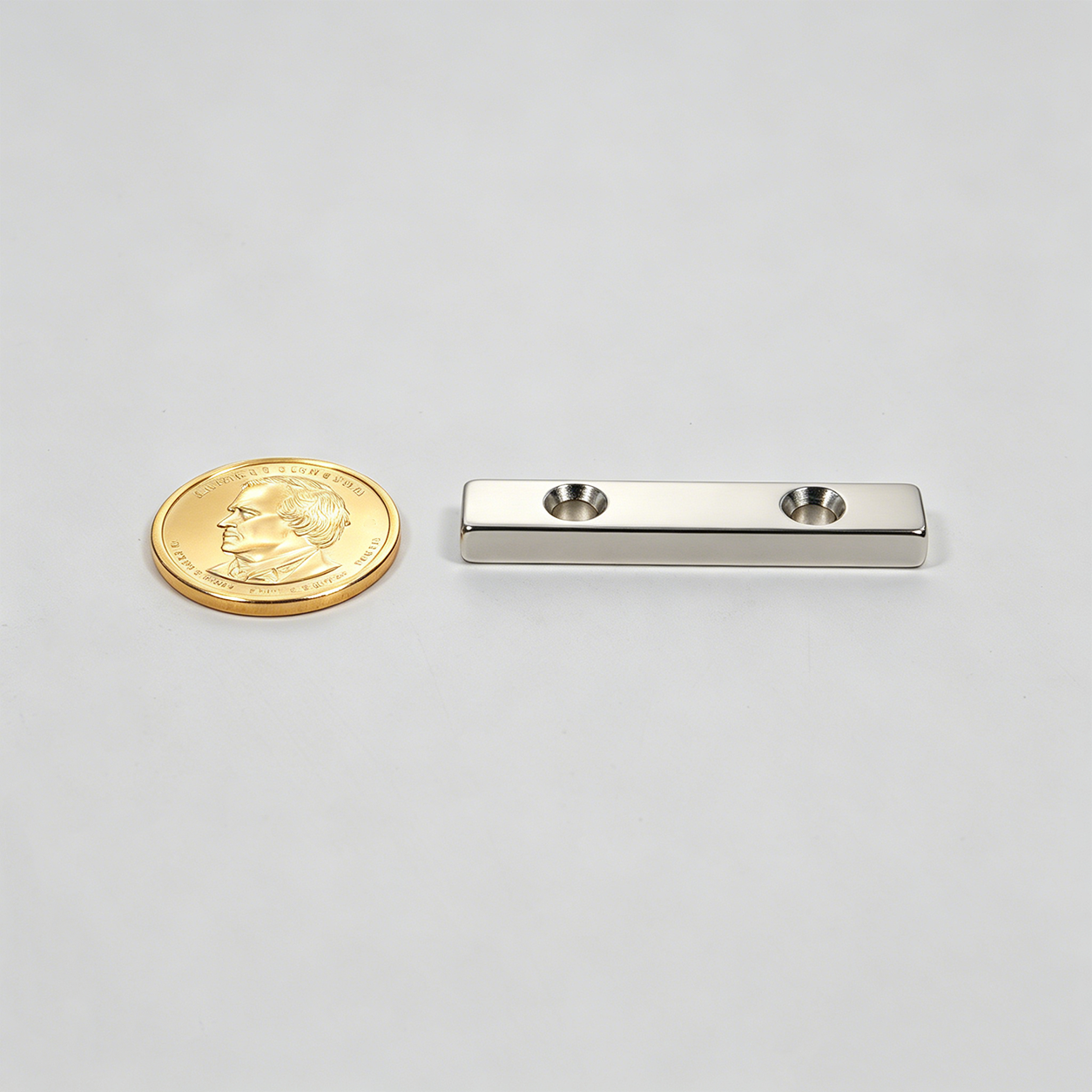

Countersunk Magnet 1.969″×0.394″×0.197″-2M4

Technical Data

Material:NdFeB
Length:1.969 inch (50.0 mm)
Width:0.394 inch (10.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.511 oz (14.5 g)
Pull Force:approx. 19.57 lb (8.875 kgf)
Surface Gauss:approx. 2150 Gs
Max Operating Temp:176 F / 80℃

$1.090

each

20000 in stock

Quantity Price
1 - 49 $1.090
50 - 100 $1.090
101 - 200 $0.730
201 - 500 $0.560
501 - 1,000 $0.420
1,001+ $0.420

Countersunk Magnet 1.969″×0.394″×0.197″-2M4

Technical Data

Material:NdFeB
Length:1.969 Inch
Width:0.394 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.08 Inch
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 14.5 g
Power:approx 8.875 Kg
Surface Gauss:approx 2150 Gs
Max Operating Temp:176 F / 80℃

$1.090

each

20000 in stock

Quantity Price
1 - 49 $1.090
50 - 100 $1.090
101 - 200 $0.730
201 - 500 $0.560
501 - 1,000 $0.420
1,001+ $0.420
