Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

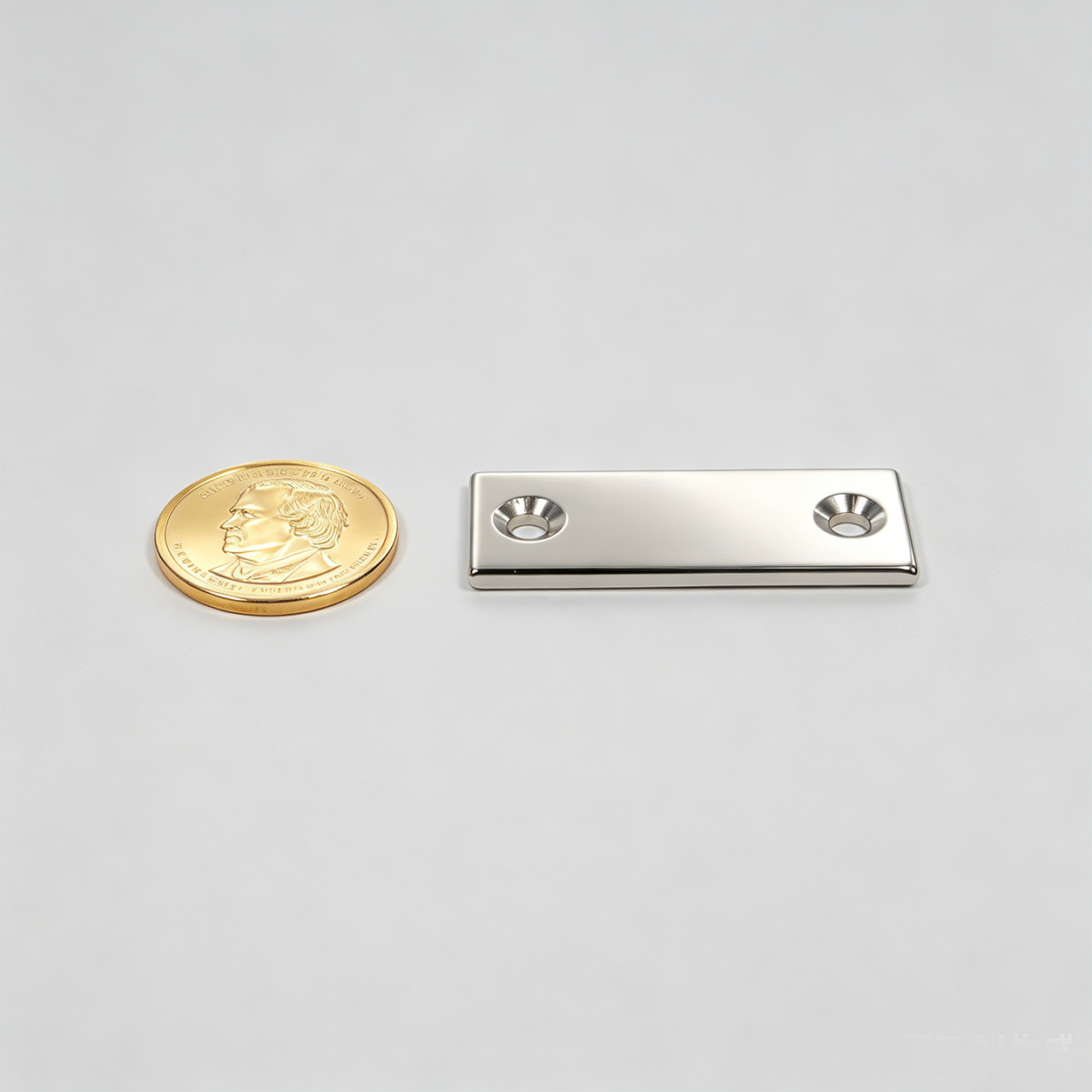

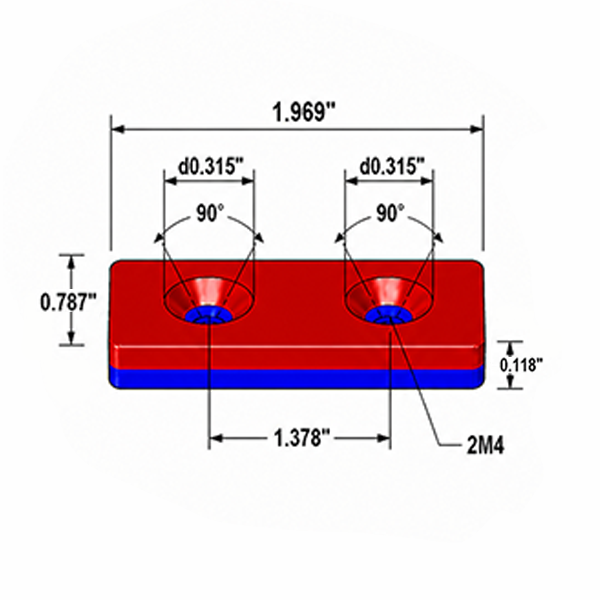

Countersunk Magnet 1.969″×0.787″×0.118″-2M4

Technical Data

Material:NdFeB
Length:1.969 inch (50.0 mm)
Width:0.787 inch (20.0 mm)
Thickness:0.118 inch (3.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.617 oz (17.5 g)
Pull Force:approx. 14.59 lb (6.62 kgf)
Surface Gauss:approx. 420 Gs
Max Operating Temp:176 F / 80℃

$1.210

each

20000 in stock

Quantity Price
1 - 49 $1.210
50 - 100 $1.210
101 - 200 $0.860
201 - 500 $0.660
501 - 1,000 $0.544
1,001+ $0.544

Countersunk Magnet 1.969″×0.787″×0.118″-2M4

Technical Data

Material:NdFeB
Length:1.969 Inch
Width:0.787 Inch
Thickness:0.118 Inch
Tolerance:+/- 0.08 Inch
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 17.5 g
Power:approx 6.62 Kg
Surface Gauss:approx 420 Gs
Max Operating Temp:176 F / 80℃

$1.210

each

20000 in stock

Quantity Price
1 - 49 $1.210
50 - 100 $1.210
101 - 200 $0.860
201 - 500 $0.660
501 - 1,000 $0.544
1,001+ $0.544
