Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

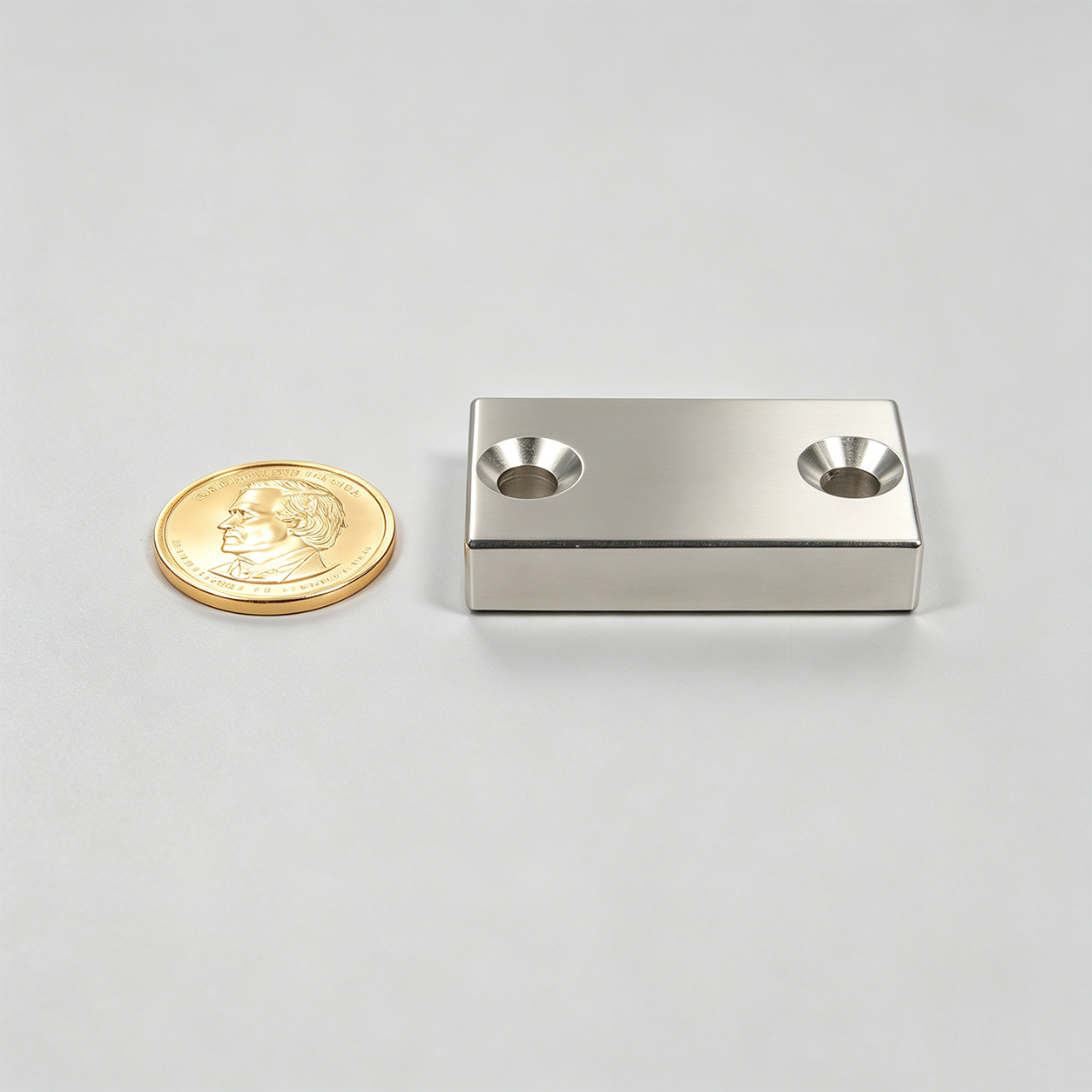

Countersunk Magnet 1.969″×1.181″×0.394″-2M6

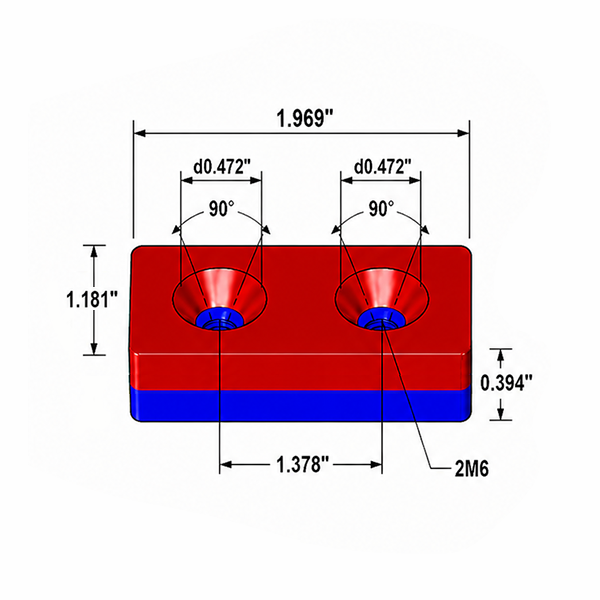

Technical Data

Material:NdFeB
Length:1.969 inch (50.0 mm)
Width:1.181 inch (30.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 3.35 oz (95 g)
Pull Force:approx. 30.42 lb (13.8 kgf)
Surface Gauss:approx. 1160 Gs
Max Operating Temp:176 F / 80℃

$5.000

each

20000 in stock

Quantity Price
1 - 49 $5.000
50 - 100 $5.000
101 - 200 $3.900
201 - 500 $2.900
501 - 1,000 $2.200
1,001+ $2.200

Countersunk Magnet 1.969″×1.181″×0.394″-2M6

Technical Data

Material:NdFeB
Length:1.969 Inch
Width:1.181 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.08 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 95 g
Power:approx 13.8 Kg
Surface Gauss:approx 1160 Gs
Max Operating Temp:176 F / 80℃

$5.000

each

20000 in stock

Quantity Price
1 - 49 $5.000
50 - 100 $5.000
101 - 200 $3.900
201 - 500 $2.900
501 - 1,000 $2.200
1,001+ $2.200
