Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

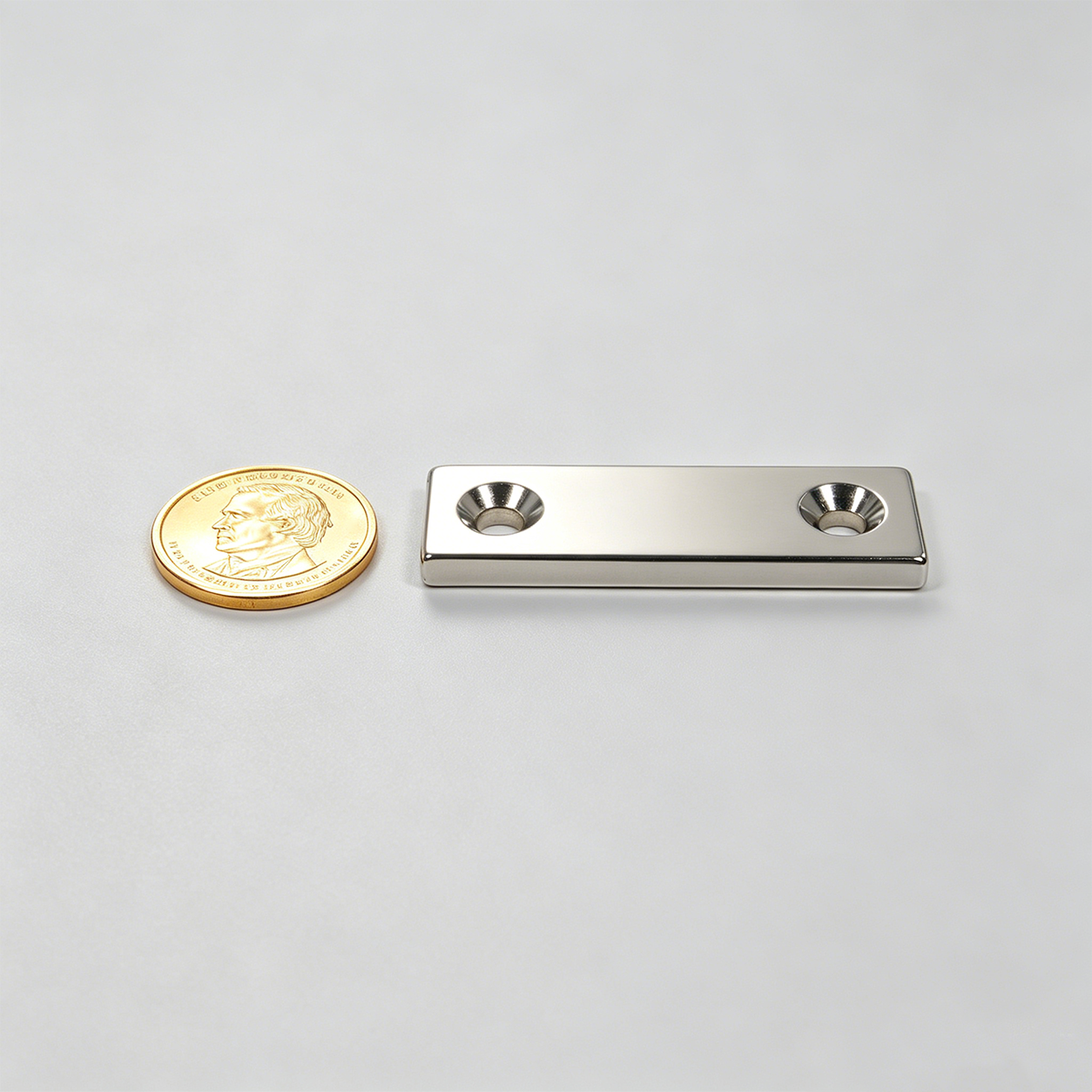

Countersunk Magnet 2.362″×0.787″×0.197″-2M5

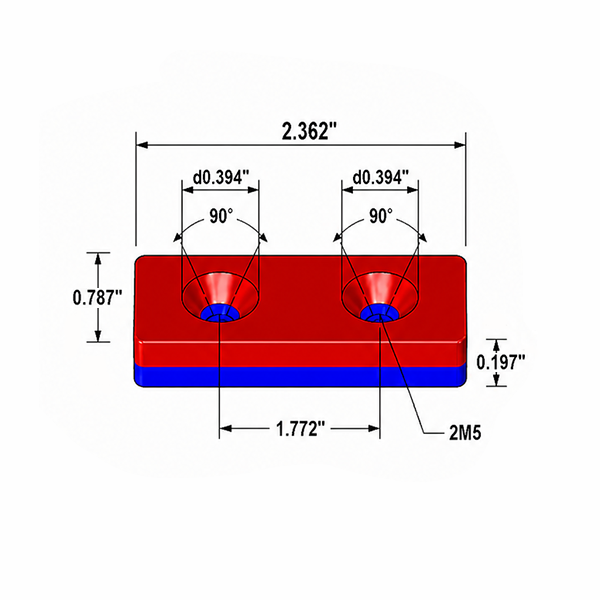

Technical Data

Material:NdFeB
Length:2.362 inch (60.0 mm)
Width:0.787 inch (20.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 1.16 oz (33 g)
Pull Force:approx. 28.66 lb (13 kgf)
Surface Gauss:approx. 600 Gs
Max Operating Temp:176 F / 80℃

$2.100

each

20000 in stock

Quantity Price
1 - 49 $2.100
50 - 100 $2.100
101 - 200 $1.700
201 - 500 $1.300
501 - 1,000 $1.000
1,001+ $1.000

Countersunk Magnet 2.362″×0.787″×0.197″-2M5

Technical Data

Material:NdFeB
Length:2.362 Inch
Width:0.787 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.08 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 33 g
Power:approx 13 Kg
Surface Gauss:approx 600 Gs
Max Operating Temp:176 F / 80℃

$2.100

each

20000 in stock

Quantity Price
1 - 49 $2.100
50 - 100 $2.100
101 - 200 $1.700
201 - 500 $1.300
501 - 1,000 $1.000
1,001+ $1.000
