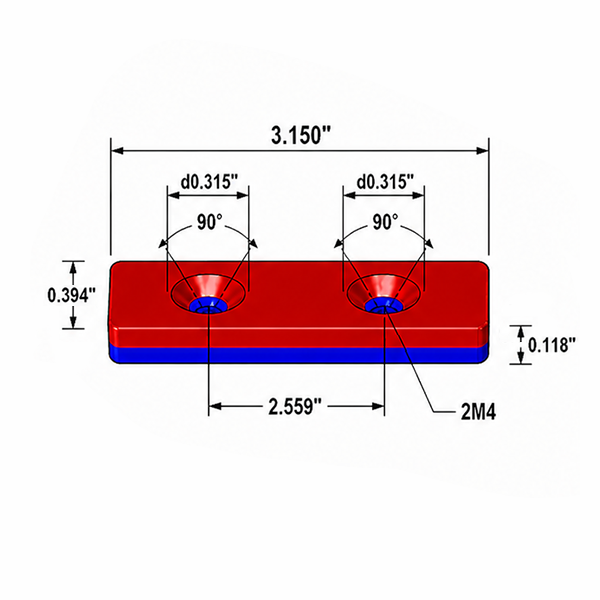

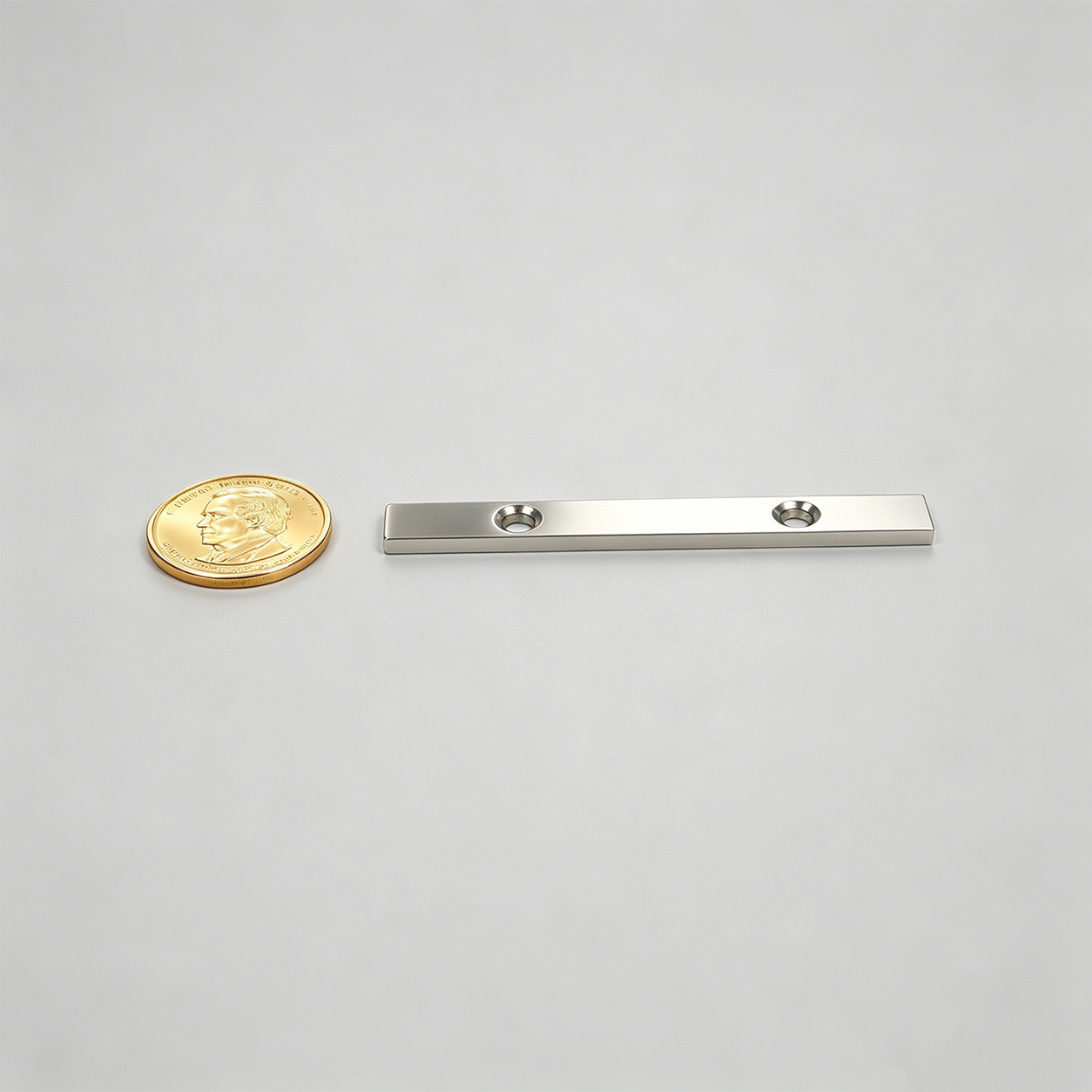

Countersunk Magnet 3.150″×0.394″×0.118″-2M4

Technical Data

Material:NdFeB
Length:3.15 inch (80.0 mm)
Width:0.394 inch (10.0 mm)
Thickness:0.118 inch (3.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.511 oz (14.5 g)
Pull Force:approx. 25.35 lb (11.5 kgf)
Surface Gauss:approx. 1300 Gs
Max Operating Temp:176 F / 80℃

$1.250

each

20000 in stock

Quantity Price
1 - 49 $1.250
50 - 100 $1.250
101 - 200 $0.880
201 - 500 $0.680
501 - 1,000 $0.570
1,001+ $0.570

Countersunk Magnet 3.150″×0.394″×0.118″-2M4

Technical Data

Material:NdFeB
Length:3.15 Inch
Width:0.394 Inch
Thickness:0.118 Inch
Tolerance:+/- 0.08 Inch
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 14.5 g
Power:approx 11.5 Kg
Surface Gauss:approx 1300 Gs
Max Operating Temp:176 F / 80℃

$1.250

each

20000 in stock

Quantity Price
1 - 49 $1.250
50 - 100 $1.250
101 - 200 $0.880
201 - 500 $0.680
501 - 1,000 $0.570
1,001+ $0.570
