Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

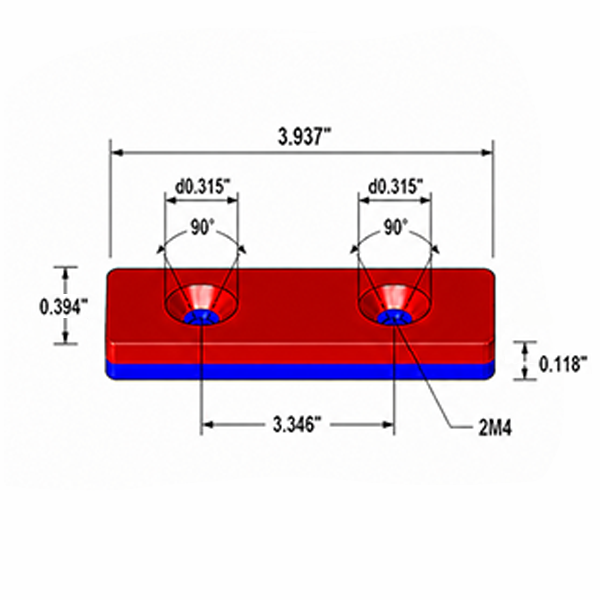

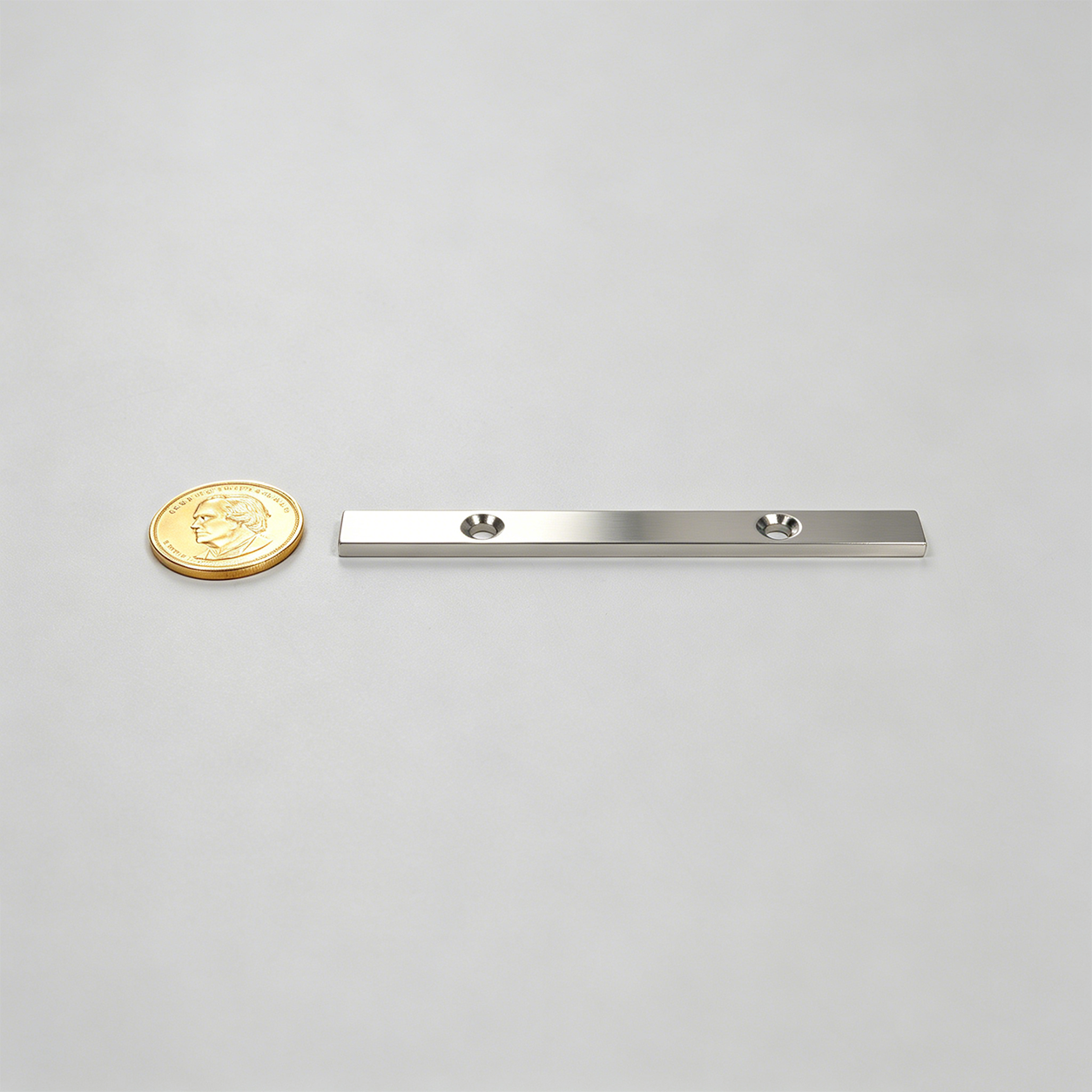

Countersunk Magnet 3.937″×0.394″×0.118″-2M4

Technical Data

Material:NdFeB
Length:3.937 inch (100.0 mm)
Width:0.394 inch (10.0 mm)
Thickness:0.118 inch (3.0 mm)
Tolerance:+/- 0.12 inch (+/- 3.0 mm)
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.635 oz (18 g)
Pull Force:approx. 26.46 lb (12 kgf)
Surface Gauss:approx. 1100 Gs
Max Operating Temp:176 F / 80℃

$1.400

each

20000 in stock

Quantity Price
1 - 49 $1.400
50 - 100 $1.400
101 - 200 $0.960
201 - 500 $0.750
501 - 1,000 $0.650
1,001+ $0.650

Countersunk Magnet 3.937″×0.394″×0.118″-2M4

Technical Data

Material:NdFeB
Length:3.937 Inch
Width:0.394 Inch
Thickness:0.118 Inch
Tolerance:+/- 0.12 Inch
M:M4(d0.177/0.315x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 18 g
Power:approx 12 Kg
Surface Gauss:approx 1100 Gs
Max Operating Temp:176 F / 80℃

$1.400

each

20000 in stock

Quantity Price
1 - 49 $1.400
50 - 100 $1.400
101 - 200 $0.960
201 - 500 $0.750
501 - 1,000 $0.650
1,001+ $0.650
