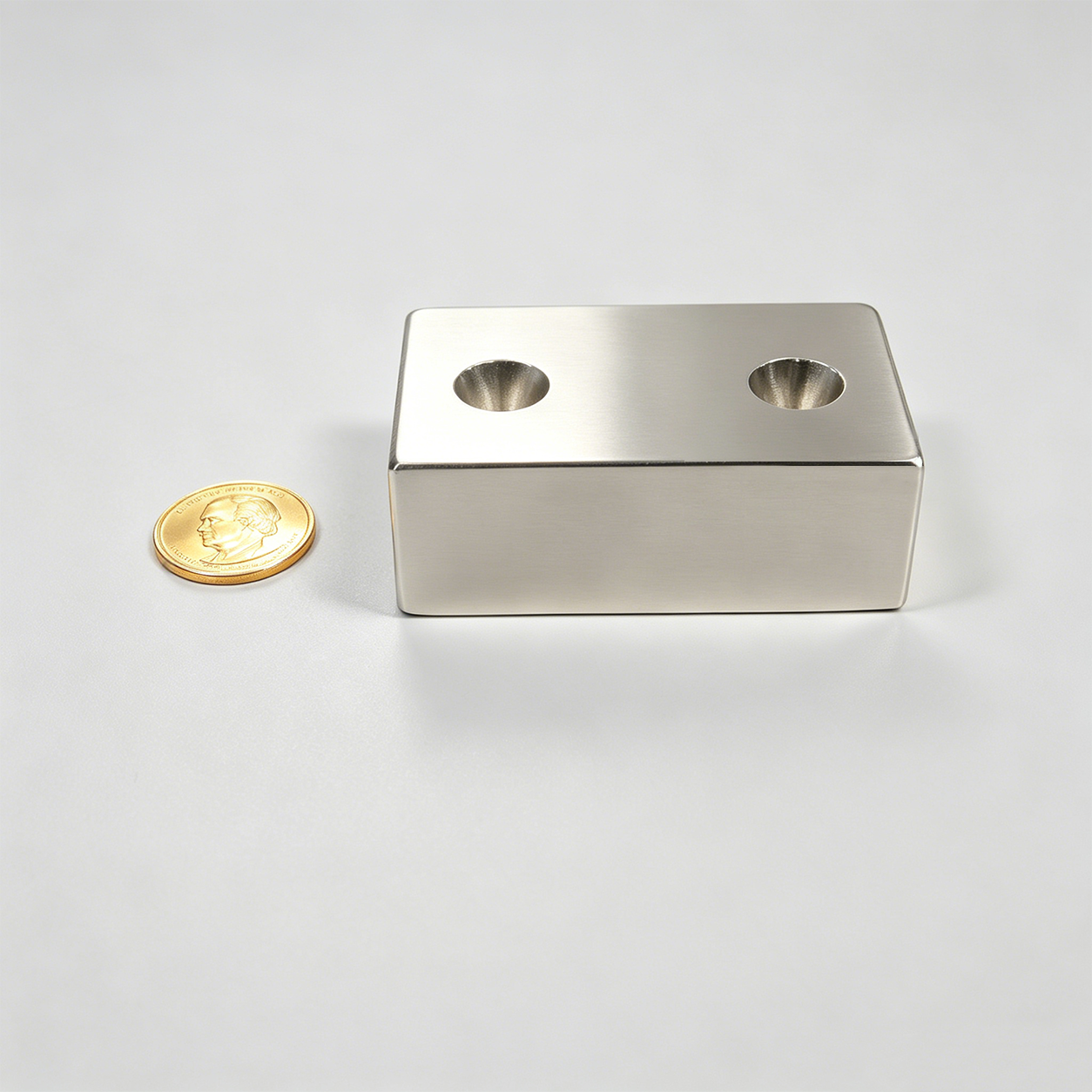

Countersunk Magnet 3.150″×1.969″×1.181″-2M8

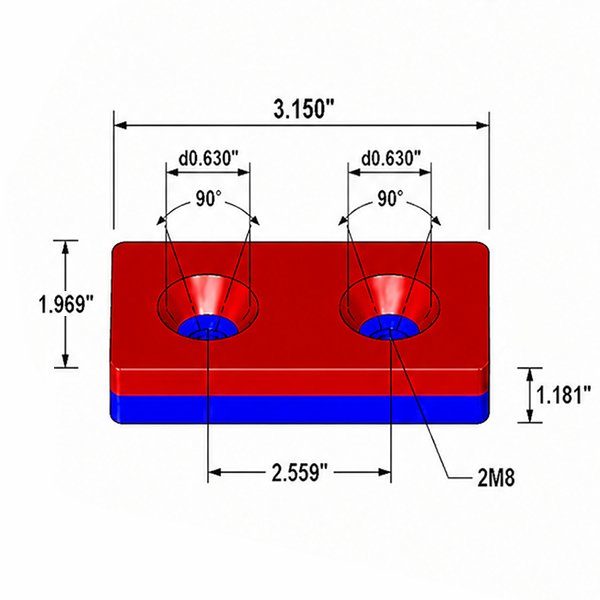

Technical Data

Material:NdFeB
Length:3.15 inch (80.0 mm)
Width:1.969 inch (50.0 mm)
Thickness:1.181 inch (30.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M8(d0.335/0.63 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 24.69 oz (700 g)
Pull Force:approx. 44.09 lb (20 kgf)
Surface Gauss:approx. 1900 Gs
Max Operating Temp:176 F / 80℃

$70.000

each

20000 in stock

Quantity Price
1 - 19 $70.000
20 - 50 $70.000
51 - 100 $40.000
101 - 200 $30.000
201 - 500 $21.000
501+ $21.000

Countersunk Magnet 3.150″×1.969″×1.181″-2M8

Technical Data

Material:NdFeB
Length:3.15 Inch
Width:1.969 Inch
Thickness:1.181 Inch
Tolerance:+/- 0.08 Inch
M:M8(d0.335/0.63 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 700 g
Power:approx 20 Kg
Surface Gauss:approx 1900 Gs
Max Operating Temp:176 F / 80℃

$70.000

each

20000 in stock

Quantity Price
1 - 19 $70.000
20 - 50 $70.000
51 - 100 $40.000
101 - 200 $30.000
201 - 500 $21.000
501+ $21.000
